Balancers for our Milgard windows - at least 24 years old

Quick Learner from Oakland, CA

Jun 22, 2019 5:38 pm

Hi,

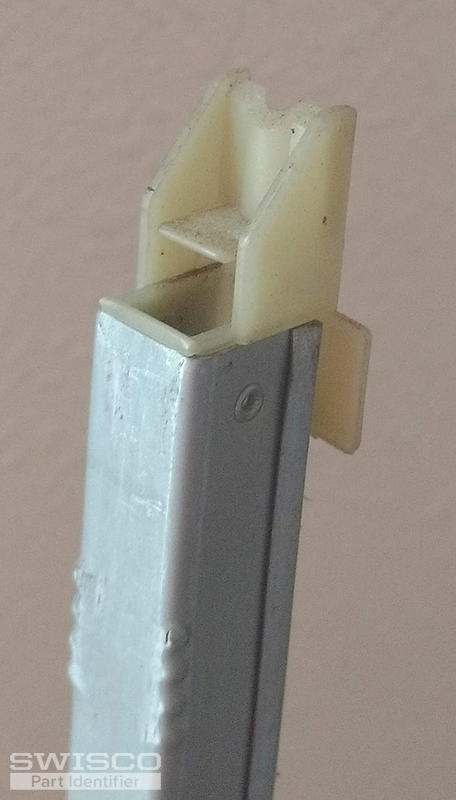

Attached are images of our balancer (27" long). I can't see an exact match for the top one. We have a notch in the middle which i cannot find in your catalog.

Could you tell us which one to order?

I think S380 is the closest (https://www.swisco.com/27-inch/pd/Series-380-Channel-Balances/S380-27).

Or could be 385 or a slight chance of being 395.

But need confirmation, thanks in advance.Thanks,Rajesh

4 user uploaded images

6 Replies

Paul from SWISCO

Jun 25, 2019 11:35 am

Hi there, Rajesh. Your balance does in fact look like both our S380-27 and S385-27. You will need to measure the depth of your bottom balance shoe, like in the diagram below, and compare it with each balance to make the best choice in replacement. Whichever one you choose will go with a 2640 option.

Alternate view of 15-004

Quick Learner from Oakland, CA

Jun 25, 2019 2:44 pm

Thanks Paul.

It's hard to measure the difference between 1 and 1.3/32 with a measuring tape. It looks like 1.1/32 !! :)

So i don't plan to weigh the window and go with the 2640. If this is incorrect please let me know.

Thanks again,
Rajesh

Quick Learner from Oakland, CA

Jun 25, 2019 4:27 pm

And another window, little larger says "26 3 BN CALDWELL" instead of "26 4" that was there in the above submitted photo) i assume it means i have to order 2630 option.

Thank you,
Rajesh

Quick Learner from Oakland, CA

Jun 25, 2019 5:23 pm

Talked with Steve and concluded that the balancer that was originally installed was wrong. My window is 26Lbs so it should be 2640 (or 2650) but not 2630.

Thank you,
Rajesh

Paul from SWISCO

Jun 26, 2019 11:47 am

Great! Sounds like you have everything figured out. Let me know if you have any other questions and we'll be happy to help as best as we can.
