Balancers for window

A home owner from USA says:
January 15, 2015
Hello, I am in need of some balancers parts for the UPPER sash of 2 windows.
The dealer the we purchased the windows from about 20 years ago, said
the type that I am needing is no longer available. They directed me to your
website. I have attached a picture on the items that are needing replacement.
I believe your 152 series will be the replacement. Please quote me on the
proper pieces that I will need to repair the upper sashes on 2 windows. The
number stamped on my present spring/coil is 5. The size of the coil balancer shoe
measures 1 .25"w x 1.5" high.

Thank you

Joe

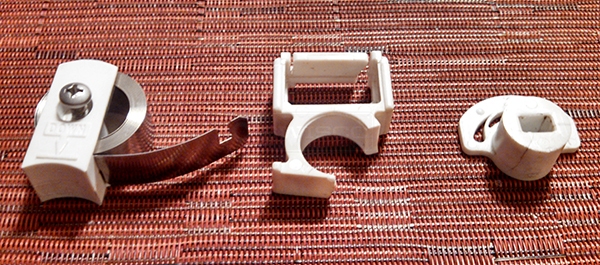

User submitted a photo of a coil balance.
Profile picture of Paul
Paul from SWISCO responded:
January 16, 2015
Hey, Joe. If the springs are okay, and you just need the pivot shoe, see our 15-141. This is 1-1/4" wide and 9/16" thick. If you do need the springs, then you should consider our S152-5 coil springs and and 33-072 screw.
A home owner from USA says:
January 18, 2015
Paul,
Thanks for the reply. Please review my photo, will my present coil spring with the notch on the end work with the 15-141 pivot shoe that you suggested?
Joe
Profile picture of Paul
Paul from SWISCO responded:
January 21, 2015
Ah, I see. I actually didn't notice that notch before. My apologies. I don't believe your old spring can work with our shoe, as it is meant to work with springs that screw on. You may need to replace the spring in that case, as well.
Coil Balance Shoe
Coil Balance Shoe
15-141
$2.84
Coil Balance Shoe
Coil Balance Shoe
15-158
$2.85
5 lb Series 152 Coil Balance
5 lb Series 152 Coil Balance
S152-5
$4.80
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
