Balances 27tg

Contractor from Concord , California
I have these balances I see some on your website that are similar, but I have the black color instead of the blue part at the end. Does this make a difference?
3 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your channel balance resembles the S751-28 with a 27TG strength option as long as the metal channel measures 28" long. The color of the shoe won't be a problem as long as the specifications below match an intact knife lock shoe. Just let us know if you have any other questions.

How to measure the length of the Series 751 channel balance.
How to measure the length of the Series 751 channel balance.

Dimensions for 15-014
Dimensions for 15-014

Contractor from Concord , California

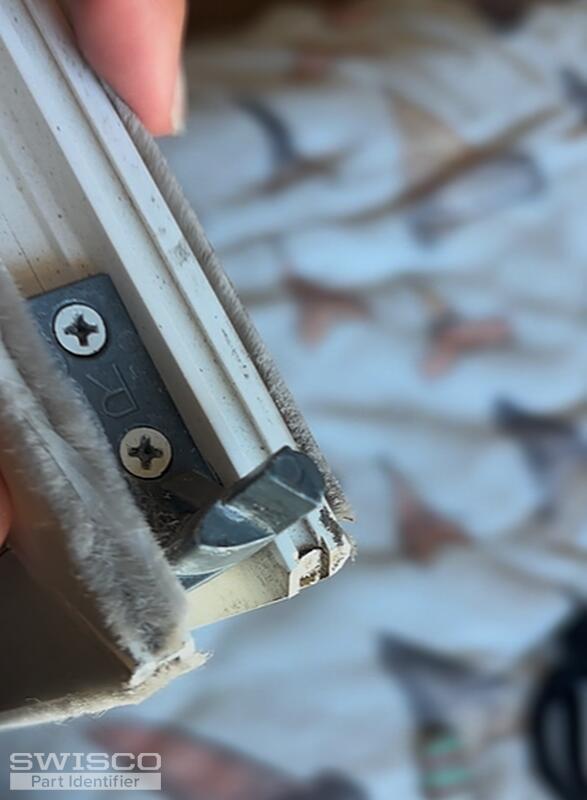

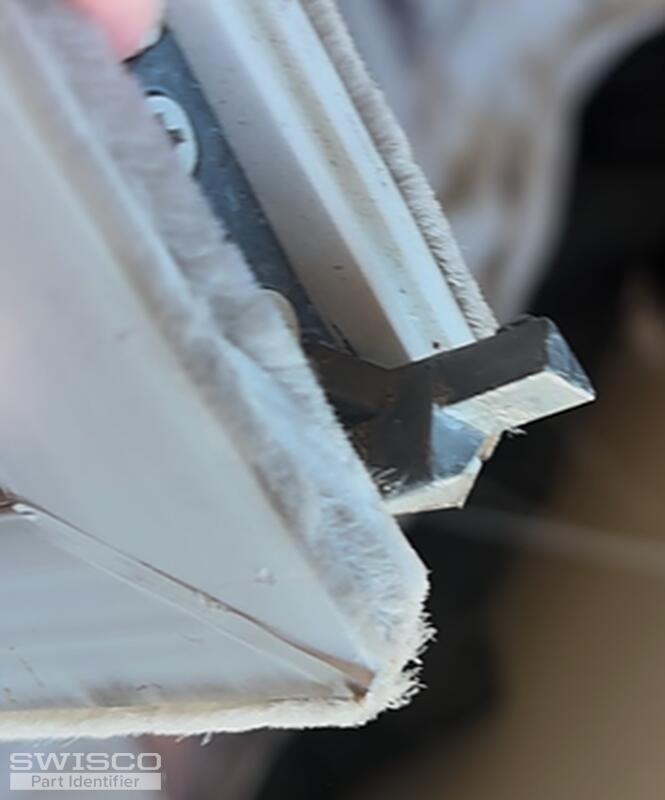

This is how the pivots on the window look . Not sure how they catch on the balance shoes though . The video on your website doesn't show how the window goes back on .
2 user uploaded images
Paul
Paul from SWISCO
SWISCO
Expert

You'll notice your pivot bar has a half-moon shape. As you place the sash back in the track, the pivot bar presses down on the metal knife in the balance shoe that flips the fork up to release the double tip from the window track.
