Bob from SWISCO responded:
December 27, 2019

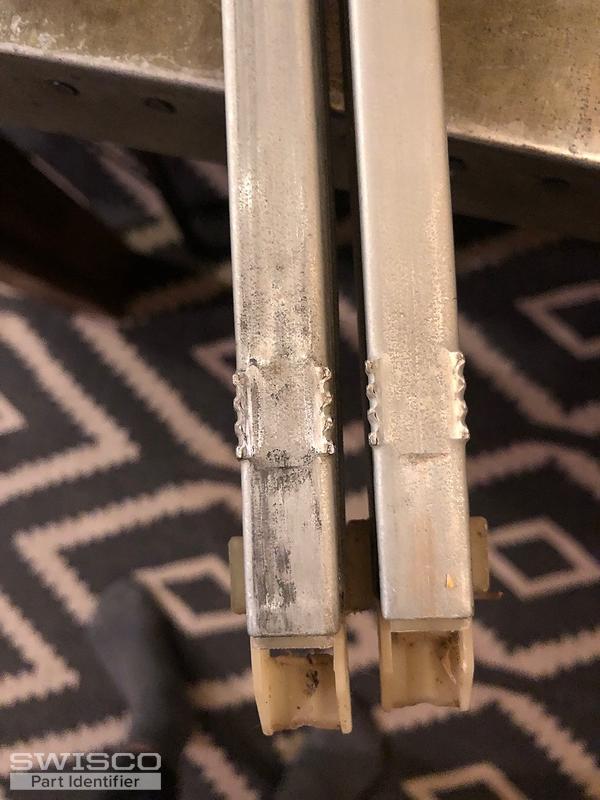

Hi Carol. Are the metal channels of all these balances 24" long? Do not include the nylon fittings on either end in this measurement. If so, you need either the S380-24 or S385-24. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. Now, the stamp code on the balances in your pictures reads as 23 3, which conforms to our stamp option of 2330. This is for a window sash in the weight range of 15 through 18 lbs. You say your window sashes weigh 21 lbs and 29 lbs, respectively. Did you ever have trouble keeping the windows open before these balances broke? If so it's possible these balances were too weakly calibrated for your windows. Double-check your window sash weights; be precise as possible. You can then match those precise weights with the weight ranges listed alongside each stamp option in the chart below. That will indicate what stamp option you need to choose for each set of balances. Stamp Option Sash Weight Range 2310 5 to 9 lbs 2320 9 to 15 lbs 2330 15 to 18 lbs 2340 18 to 23 lbs 2350 23 to 27 lbs 2360 27 to 30 lbs |
Tom from SWISCO responded:
December 30, 2019
Hey there! Bob isn't in today but I think I can help. If I'm reading your posts correctly, it sounds like there is a difference in balance length for the same sized windows. Is that accurate? If so, there's an easy way to determine exactly what length you need. All you have to do is get the height of the visible glass, and then add one inch. So, for example, if the visible glass is 24", then you want a 25" long balance. Does that make sense? Let me know if you need clarification. |
