Balances

A quick learner from USA says:
December 22, 2020
Hello,

I am in need of two channel balances for my window ( part # U B 27B). Please find attached two pictures for your help. i need the full channel balances with the springs and pulleys, strings etc.
Profile picture of Casey
Casey from SWISCO responded:
December 23, 2020

Hello,

Unfortunately, your pictures did not come through but if you could resend us photos of an undamaged balance removed from the window, we'd be happy to research this for you. Thank you!
A quick learner from USA says:
December 23, 2020
Please receive the images here below. The channels were damaged as i removed them form the window. Each channel has a pulley and the metal springs in the middle, not shown in the picture.

Thanks for your help.

Kefa
Thumbnail of the uploaded file named IMG_0060[1].JPG
Thumbnail of the uploaded file named IMG_0049[1].JPG
Thumbnail of the uploaded file named IMG_0051[1].JPG

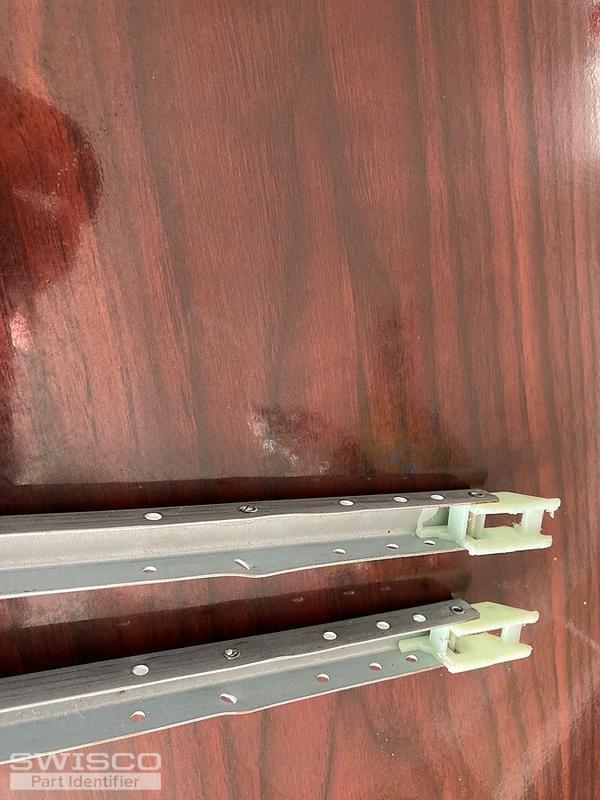

Thumbnail of the uploaded file named IMG_0057[1].JPG

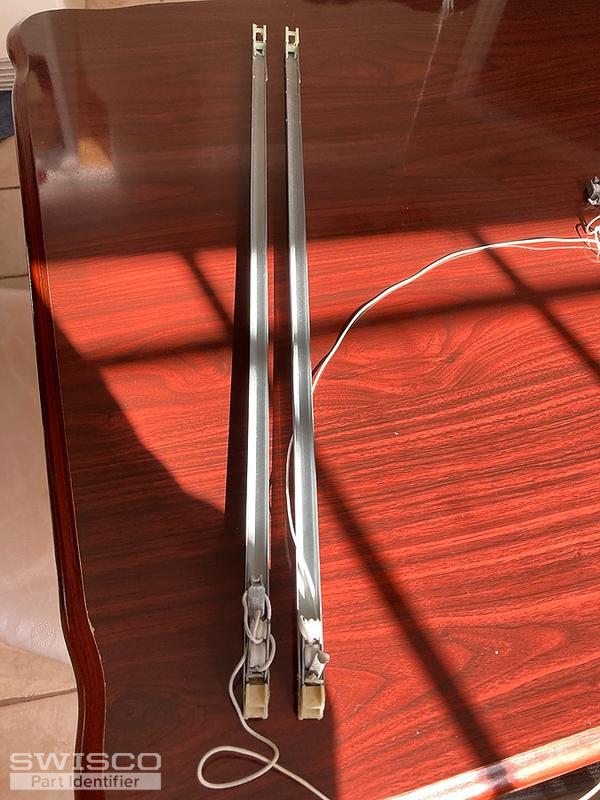

Thumbnail of the uploaded file named IMG_0061[1].JPG
Profile picture of Casey
Casey from SWISCO responded:
December 28, 2020

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2720 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
28" Series 351 Channel Balance
28" Series 351 Channel Balance
S351-28
$10.97
28" Series 390 Channel Balance
28" Series 390 Channel Balance
S390-28
$10.97
