Balances

A quick learner from Doylestown PA says:

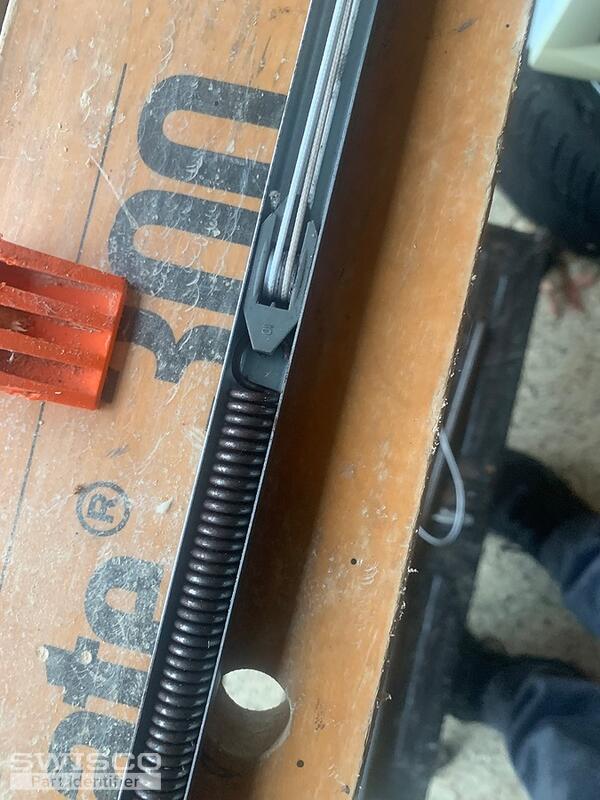

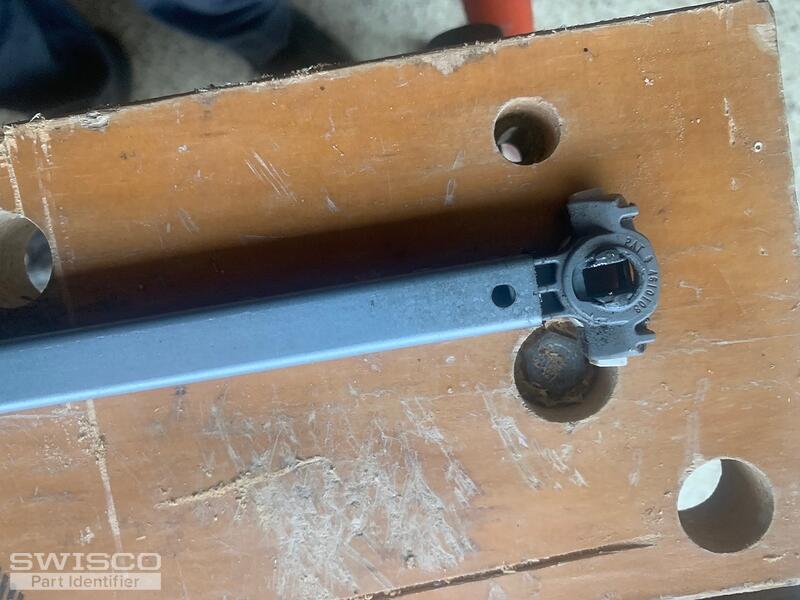

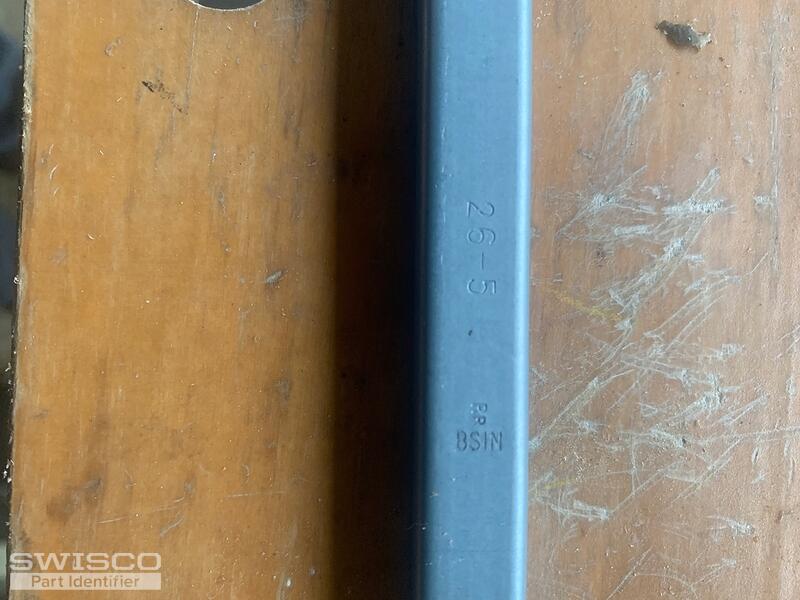

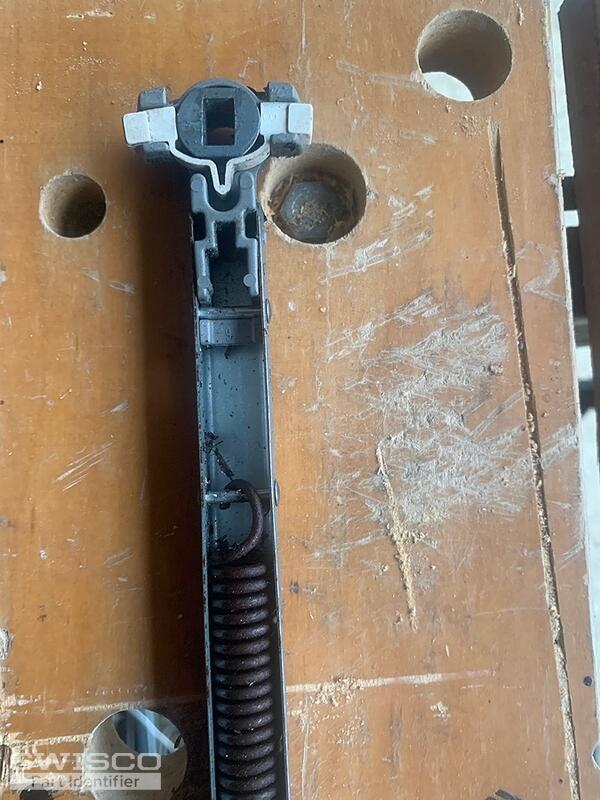

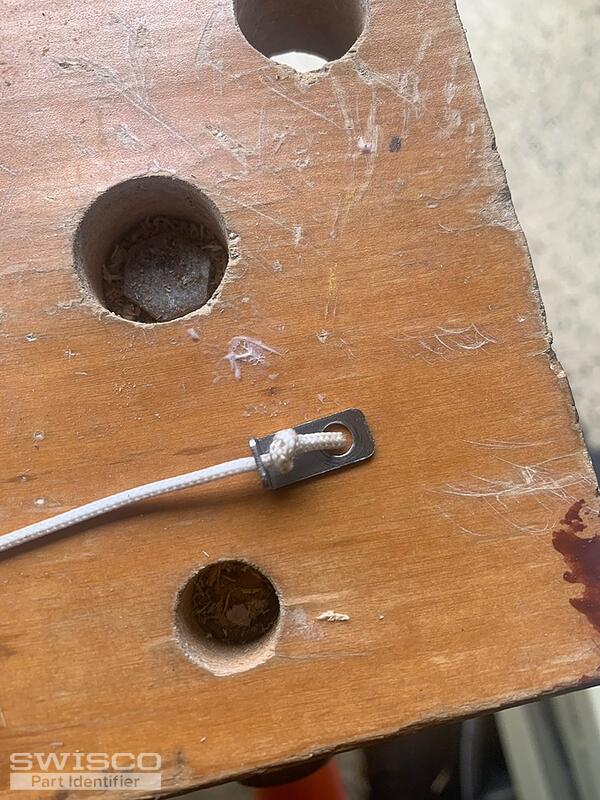

Both balances are broken, one the spring has broken and the other the top attachment. The metal sheath is 27 inches and the metal stamping reads 26-5
Thumbnail of the uploaded file named B3C3B6FA-912D-4342-9073-ABC16AA4619A.jpeg
Thumbnail of the uploaded file named 28B083A4-94B8-4D6E-8E77-2A906F7D28B2.jpeg
Thumbnail of the uploaded file named ABD96A98-7FD1-4FCE-A7FF-5FCBE418422E.jpeg
Thumbnail of the uploaded file named F73162DA-79BC-4D2A-B280-01305B9FF5A4.jpeg
Thumbnail of the uploaded file named DFF25E3B-2780-4C33-A252-F5D6D8621348.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello there!

Your balance appears to be a match for our S795-27 . This comes attached with the 15-195 closed cam T-lock shoe by default but you have the 15-195B open cam shoe so you'll need to purchase this separately and then snap it on once you get them. The video below will demonstrate how to do so. Your 26-5 stamp doesn't match any of our options, however. Our 27E stamp may be what you want, but you should weigh your sash on a scale to confirm. Two balances with a 27E stamp can carry 26 through 30 pounds. As long as your sash falls in that range then you're good to go.

How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
