Balances

Home Owner from Hot Springs, SD
I have 4 balances (2 windows) that are broken and need to be replaced.

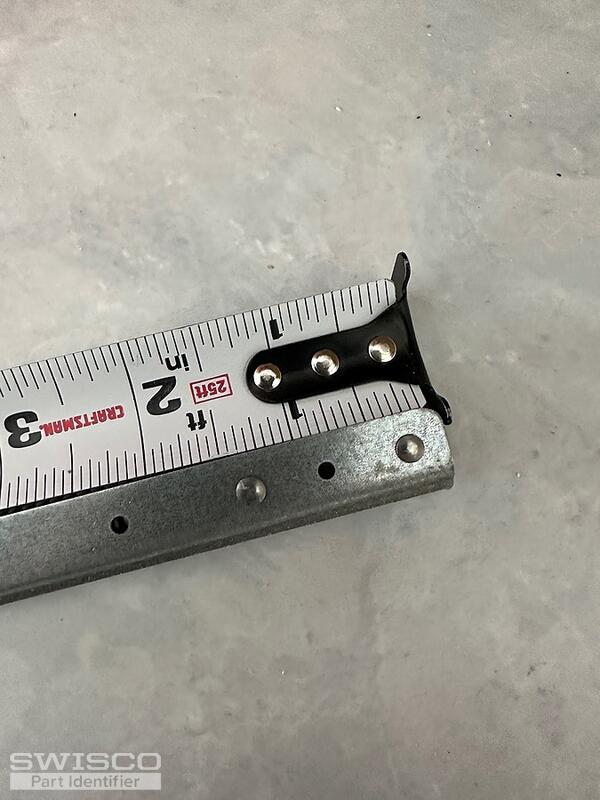

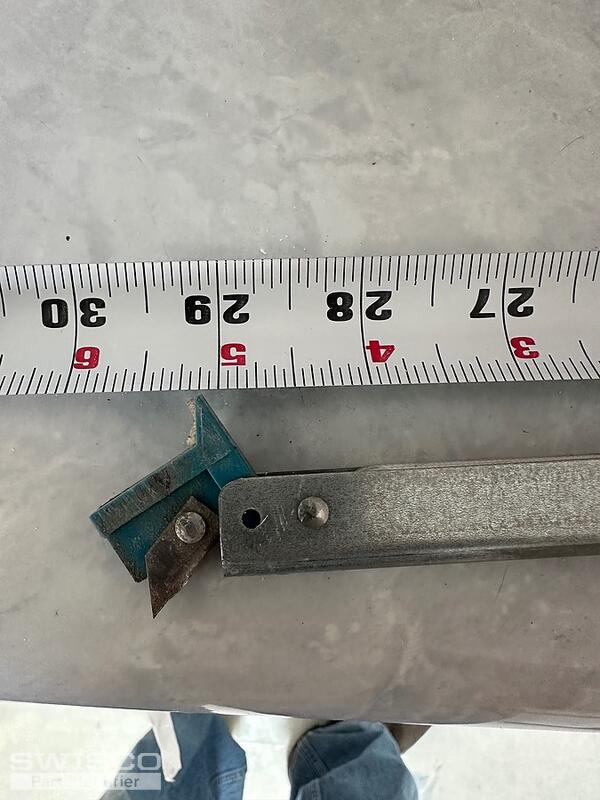

3 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

At first glance, your channel balance resembles the S751-29. Please note that this assembly uses a ribbed channel, which I can't quite make out in your photos.

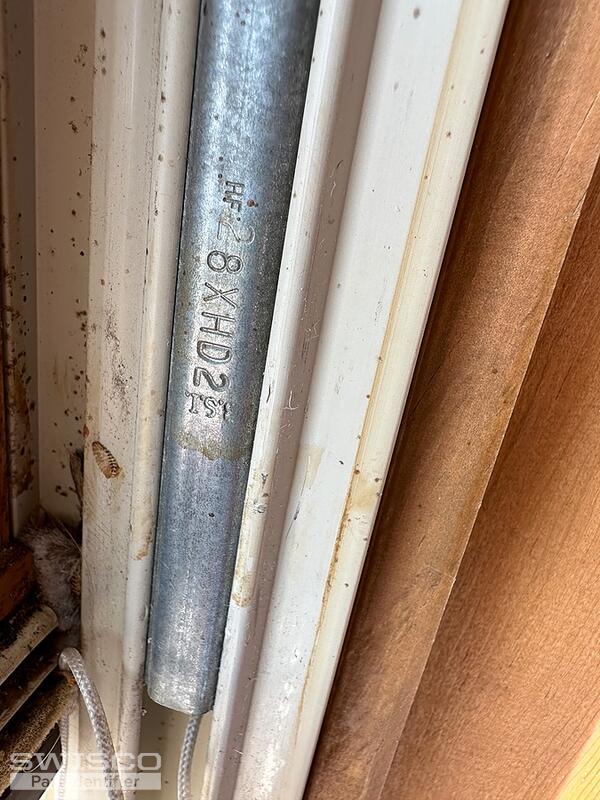

If it's a match, your stamp code indicates that you would most likely need 28HD strength options for your replacements but I'd recommend confirming that your sash falls within the 22-28 lbs. range that these balances support. Thank you!

How to measure the length of the Series 751 channel balance.
How to measure the length of the Series 751 channel balance.
