Balances

Contractor from Bonita Beach, Florida

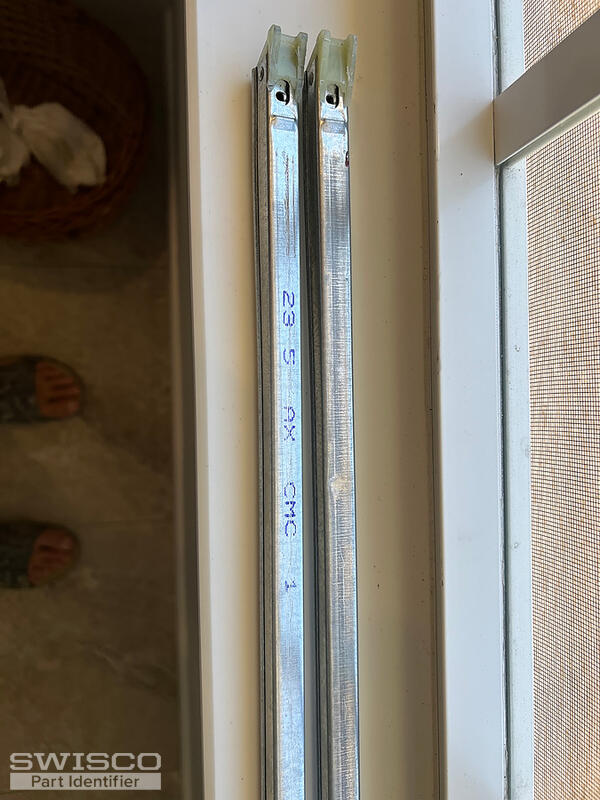

23 5 AX CMC 1
I also need a set of balances for a single pane single hung window 31 1/2" height, 45 1/2" width can't see the actual balnce of this window without taking the window apart. looks the same as the 23 5 AX CMC 1 but I am sure it is a different size.
10 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. I am confident we can help, but those stamps aren't identifiers. They just denote the balance's strength. We will need you to remove the balances and send us photos of the stamps and also the nylon attachments on both ends. The style of attachments determines the balances you need.

Contractor from Bonita Beach, Florida
I also need a set of balances for a single pane single hung window 31 1/2" height, 45 1/2" same configuration as the 23 5 AX CMC 1 except taller

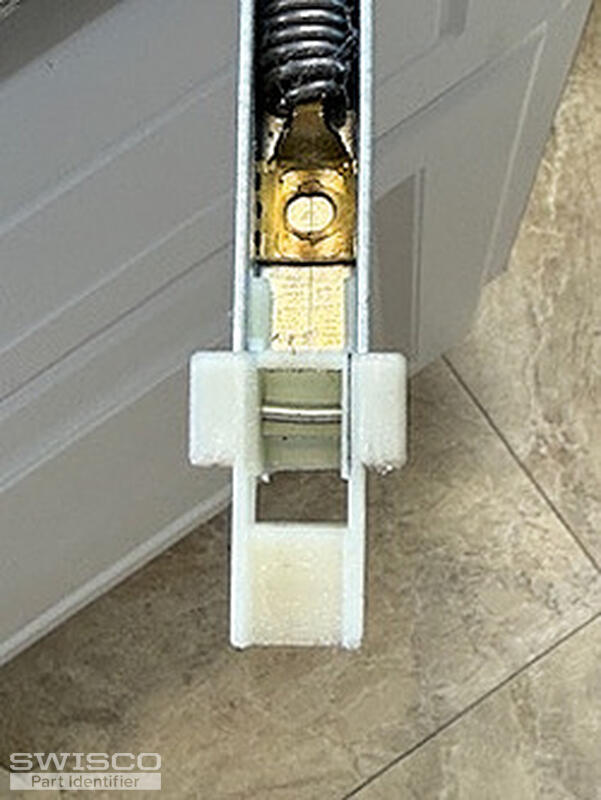

5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for these photos. This looks like an S395-24 Channel Balance. For a stamp option choose 2350.

I am afraid we can't narrow down the other balance based on the window dimensions. If you can tell us the height of the visible glass in the window, and also the exact weight of the window sash, we may be able to narrow it down--but ultimately, showing us the end attachments and the stamp code on this other set is the most reliable way to go. If you can do that we'd be happy to help further.

Contractor from Bonita Beach, Florida

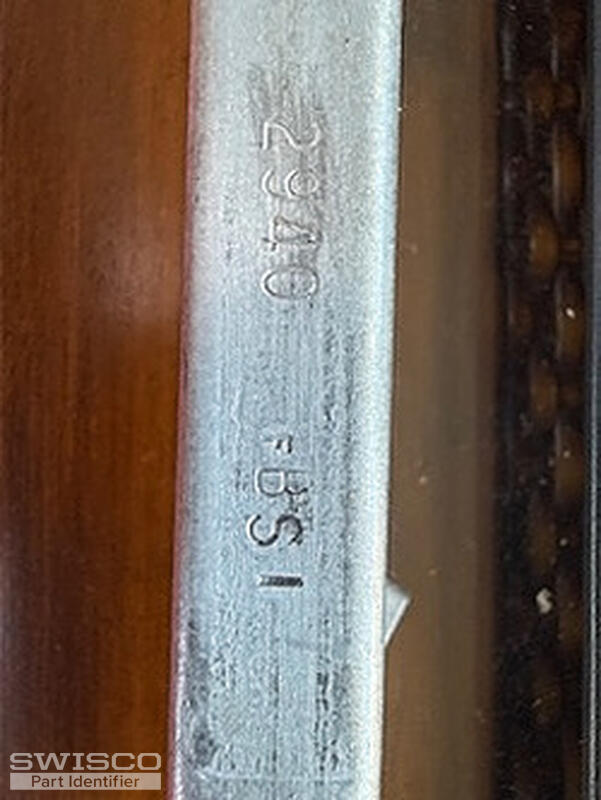

ONE BALANCE HAS 29 4 AX CMC 11 PRINTED ON IT
OTHER HAS 2940 FBS1

1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

If the end fittings are identical to the balance posted above, see the S395-30 (2940) balance. If not, we'll need to see photos of both end fittings to compare to our inventory.

Contractor from Bonita Beach, Florida
Thank you Bob. The ends are identical.
Bob
Bob from SWISCO
SWISCO
Expert

Great. Then you should be good to go!

Contractor from Bonita Beach, Florida

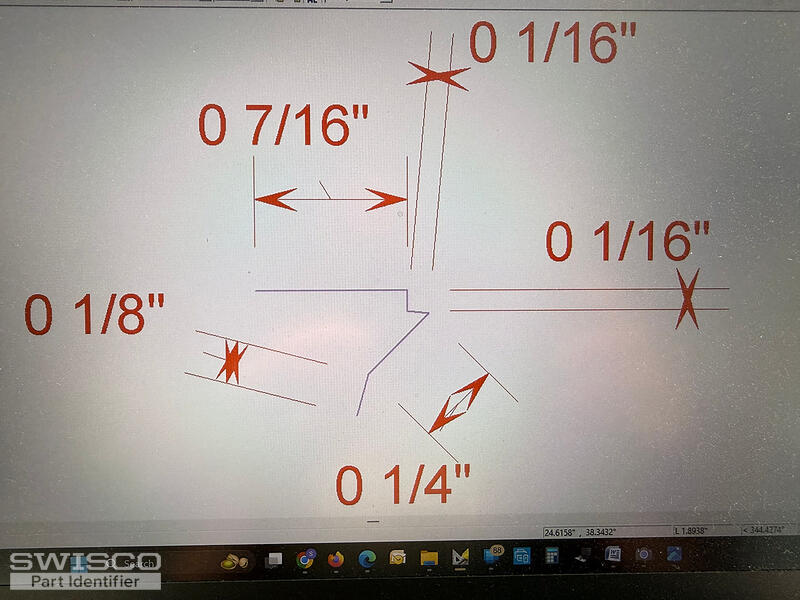

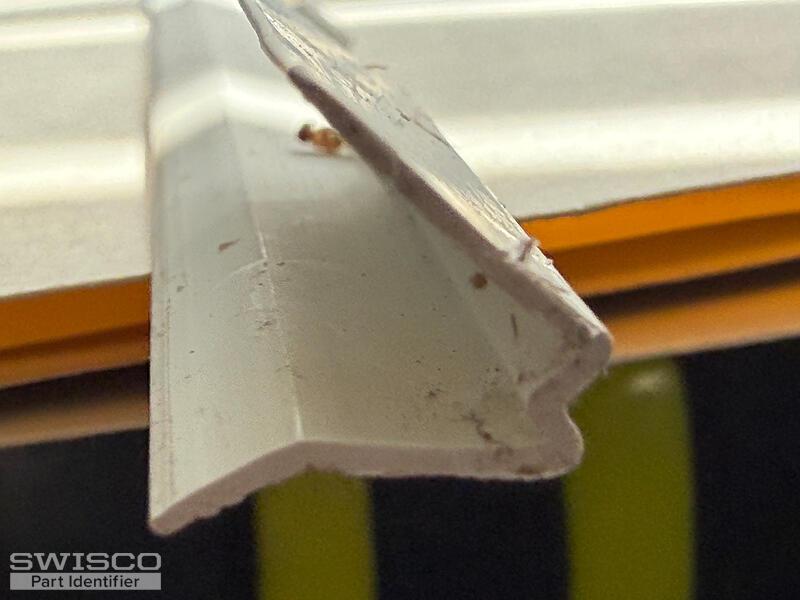

DO YOU HAVE A GLAZING PIECE LIKE THIS? OR CLOSE?
2 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Unfortunately, we do not carry a suitable replacement for the glazing bead shown in your photos. I'm sorry we won't be able to assist with this part of your repair, but please let us know if you have any other hardware questions. Thanks for posting.
