Balances for a no-lift vinyl window?

Question

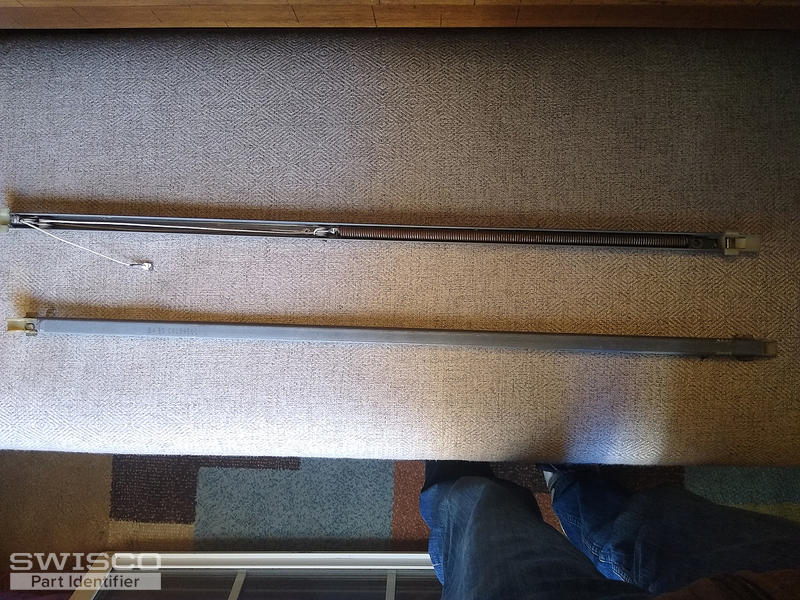

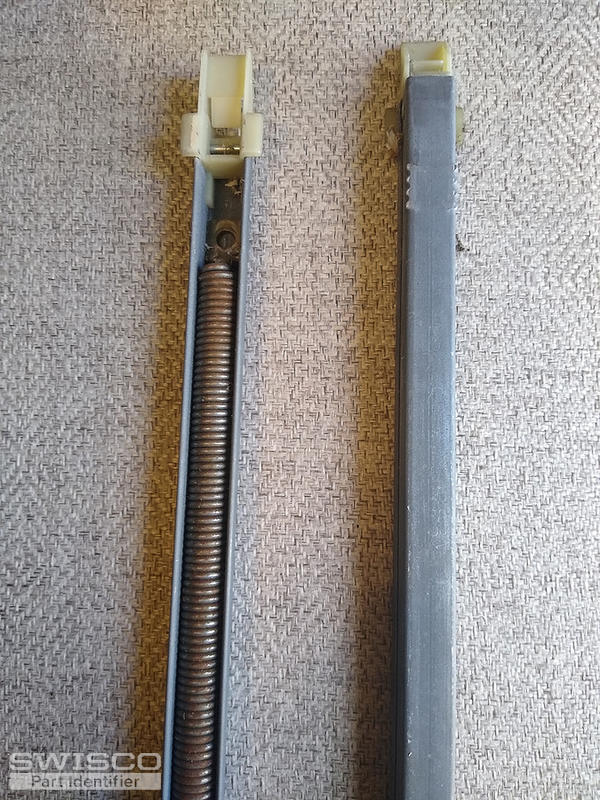

Balance is 1/2" wide. Metal part of balance is 27" long. If including plastic boots, the entire balance is 28" long. The bottom boot has #15P102 and a 3 below that number. The other balance's bottom boot has the same part number but a 4 below it instead. I can't seem to find any part numbers for the top boots. Stamped onto the metal part of the balance is "26 4 BO CALDWELL".

Let me know if the photos aren't good enough. Thanks!

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
