Balances and tilt braket

Quick Learner from Florida

Jan 11, 2023 4:39 pm

Good afternoon.

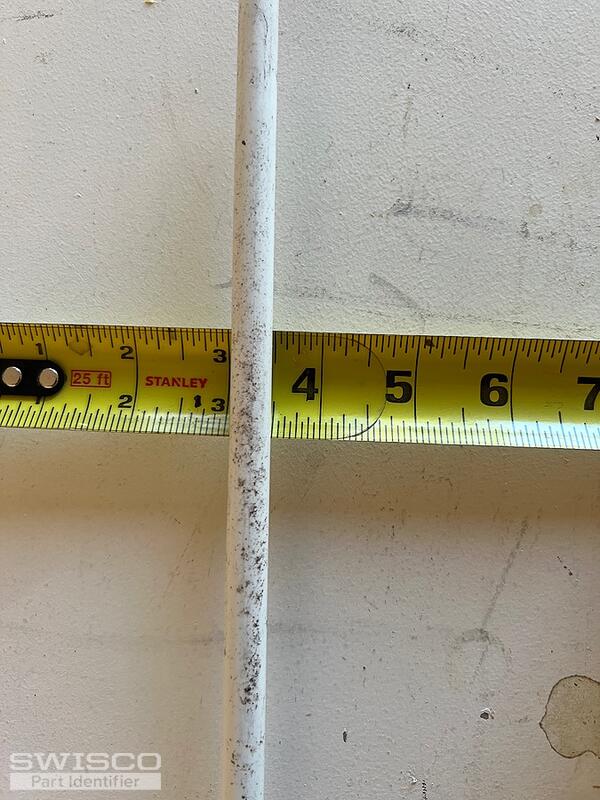

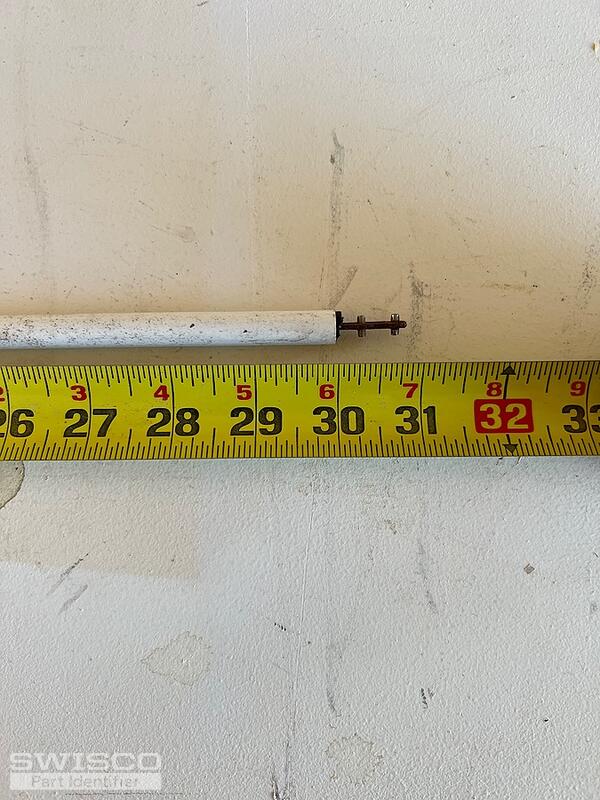

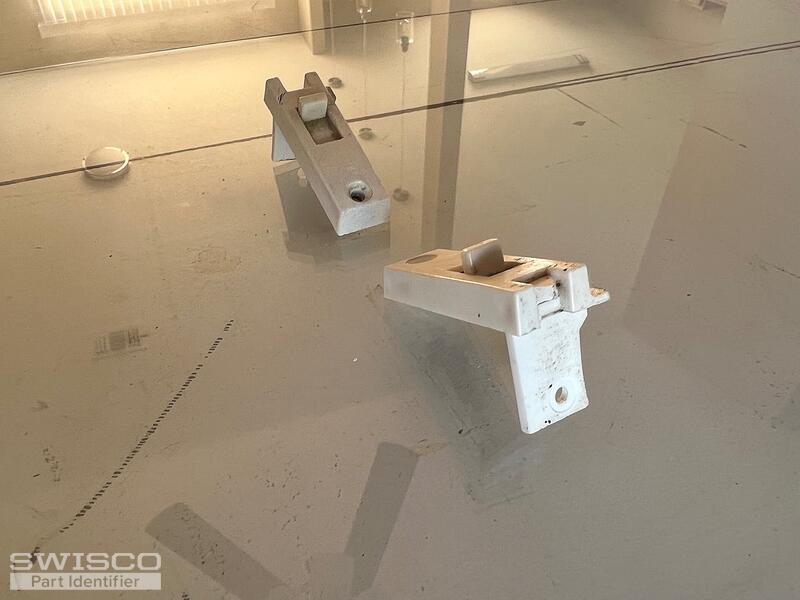

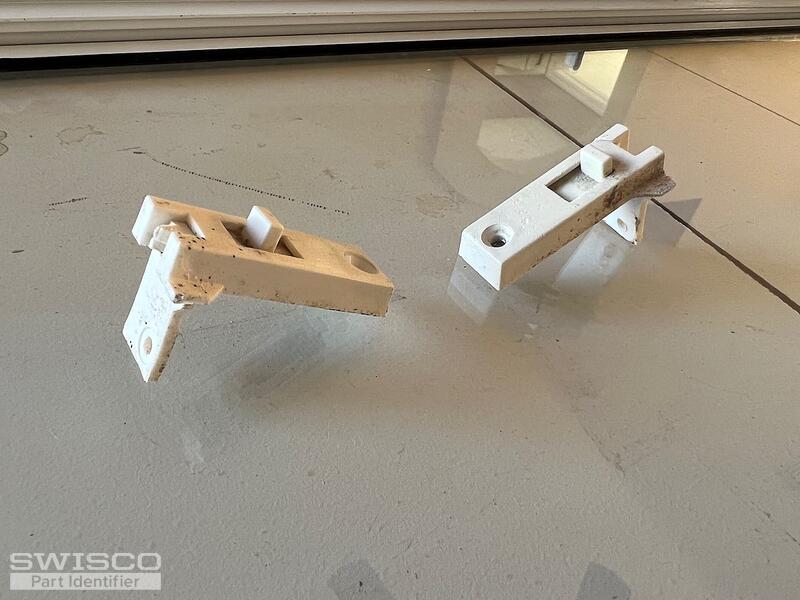

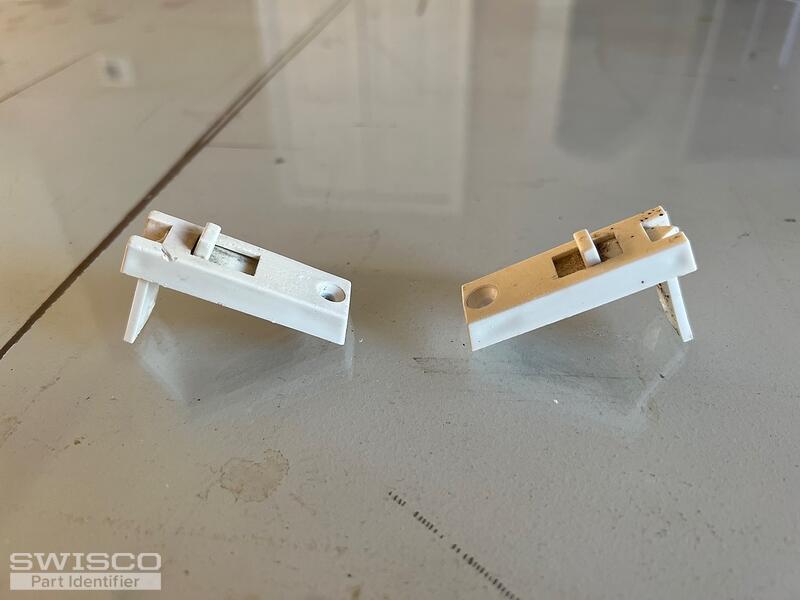

Please see attached pictures for balance size and tilt in brackets for identification for replacement. Weigh of sash about 28.2 lb

5 user uploaded images

2 Replies

Casey from SWISCO

Jan 12, 2023 8:30 am

Hello,

Take a look and compare the specifications of the 3/8" diameter S900-30 spiral balance with a yellow tip to your assembly.

As for your corner tilt latches, review the dimensions of the 26-351 pair to see if they match up to yours. Thanks for posting!

Alternate image for 26-351
