Balancing part is broken

A home owner from Fremont, California says:
I have the sticker of window size for single hung window and the parts that need to be replaced.
Thumbnail of the uploaded file named AB97E816-75F5-443B-B4C3-B98ECA5A8611.jpeg
Thumbnail of the uploaded file named A4A0FC59-A1FB-4454-AF64-79131498A439.jpeg
Thumbnail of the uploaded file named E4C8627C-BB6D-44C4-9E5A-E9BBF170C8A1.jpeg

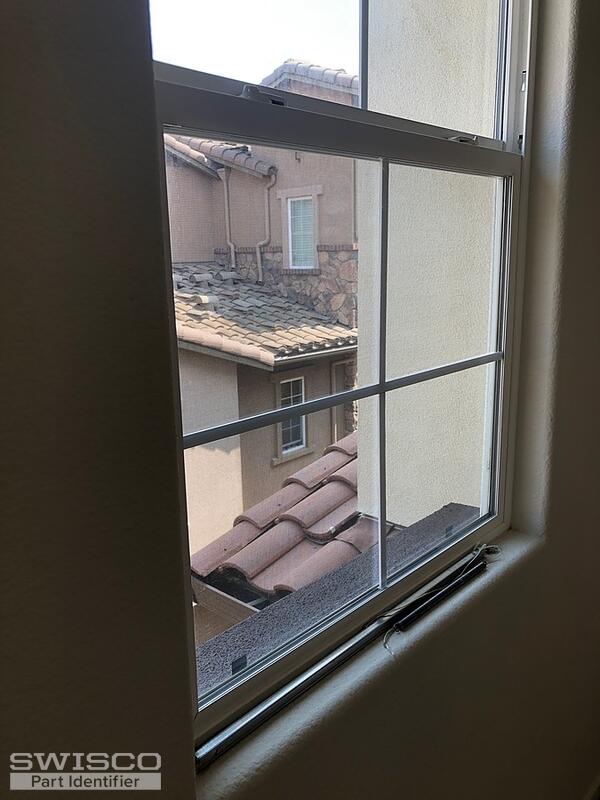

Thumbnail of the uploaded file named 347B33C0-AE98-4BEB-95BB-678772628A7E.jpeg

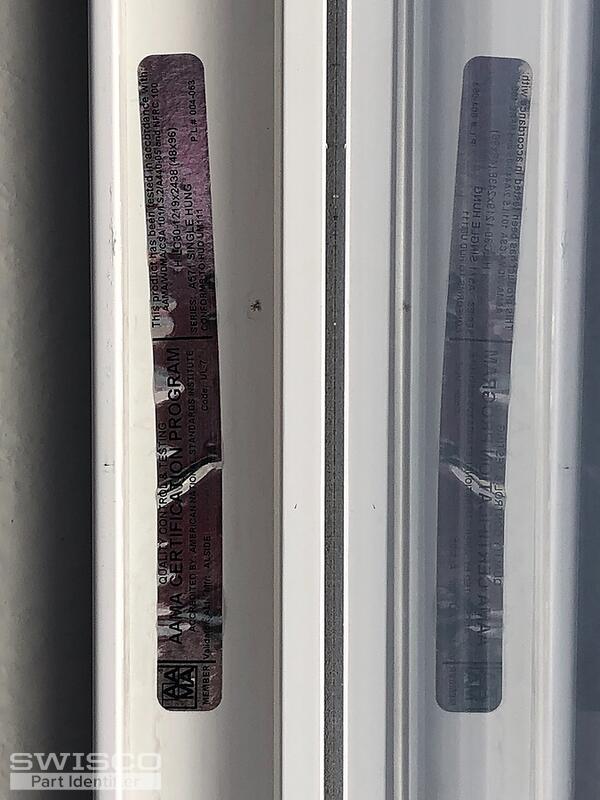

Thumbnail of the uploaded file named 47A340BB-39E5-48EE-9FEE-0BF499DB0A38.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
