Basement tilt in windows open at bottom and lift towards ceiling

Home Owner from Grafton, Mass.

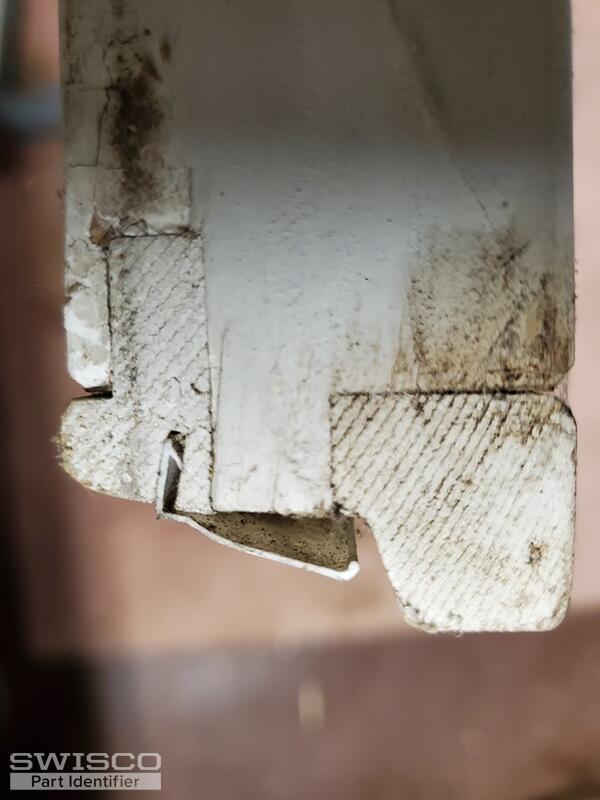

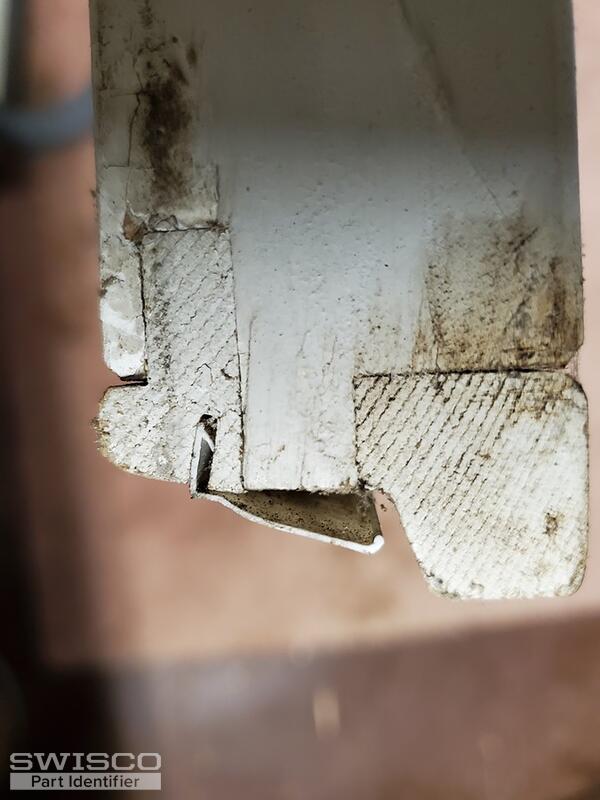

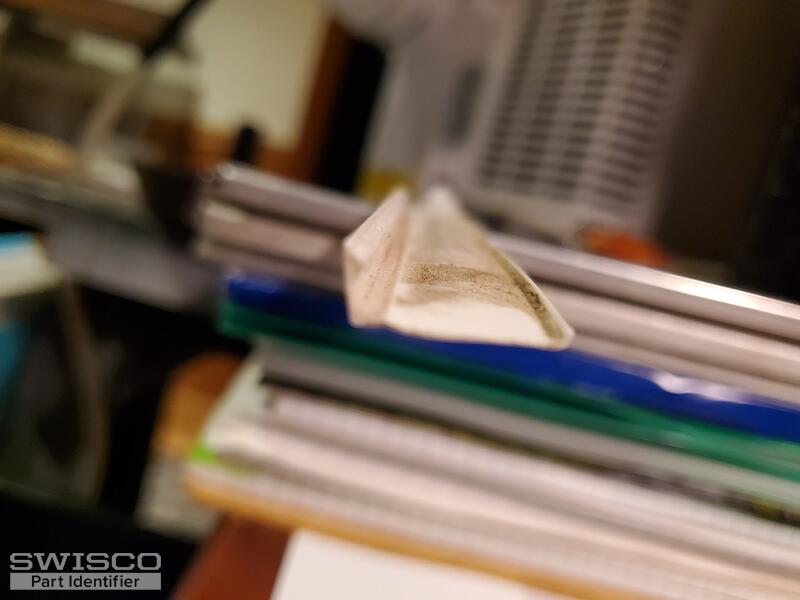

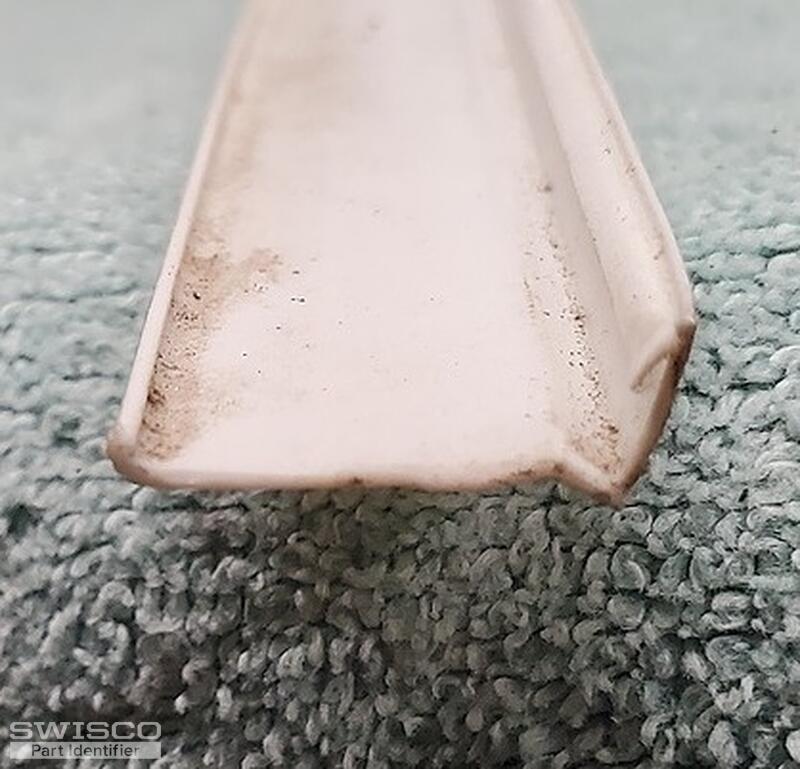

Hi, I am trying to find these plastic weatherstrip/gaskets that fit into the bottom of my tilt from the top basement foundation windows. The first picture is of the removed gasket, the second two show how they are installed into the window frame. The final picture is also an end view of the gasket that may be a little clearer. The long leg of the piece is approximately 3/4 of an inch, and the short leg is about 1/4 of an inch. The windows were in the house when we purchased it, and are wood framed, 30 inch wide, and have no manufactures markings on the window or any of the metal hardware. Any help you could give me with this would be appreciated!

Thanks, John

4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It looks like you have a type of leaf seal. Our closest match would be the 55-106 but the longer portion only measures 3/8" as shown below. Take a look and see what you think.

Profile view with measurements of the leaf weather seal
Profile view with measurements of the leaf weather seal
