Bath stall door concealed latch set Ada compliant

Contractor from Essex Ct
May 23, 2023 4:52 pm
Hi ,
Bought the latch set item #10-553 and it's too large. Can you recommend the correct part for me.

Thanks,
Phil
1 user uploaded images
3 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 25, 2023 10:50 am
SWISCO
EXPERT

Hi there, Phil.

I'm sorry to hear this part didn't work out for you. Can you write out the size you're looking for? That will allow me to confirm if we have a better match or not.

Contractor from Essex Ct
May 25, 2023 11:38 am

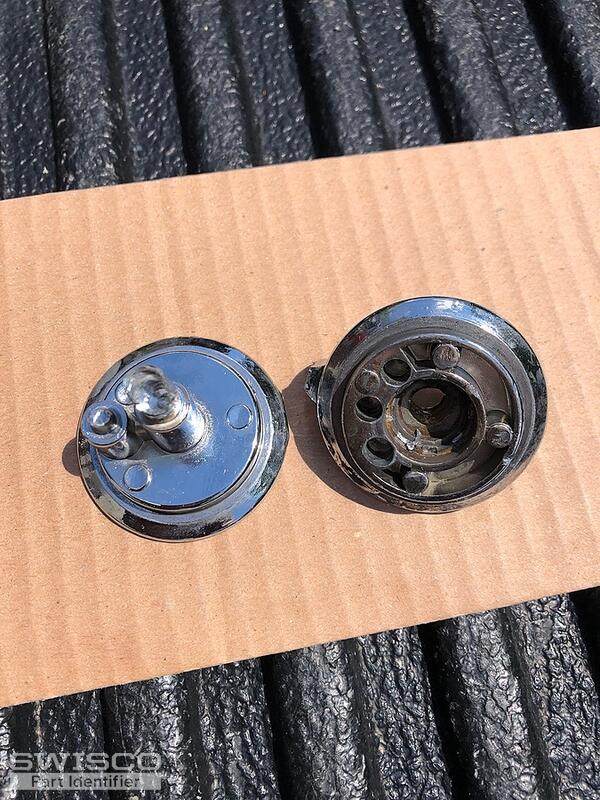

It's 1 5/8" around. 1" door thickness. Center pin is about 3/8". Small off center pin is about 5/16"
image image image
3 user uploaded images
Emily
Emily from SWISCO
May 25, 2023 3:33 pm
SWISCO
EXPERT

Thanks for getting back to me. I recommend you have a look at the parts we've related for you on this page. Review the specifications and see what you think.
