Bathroom Window Crank needs Replaced

Question

Hello,

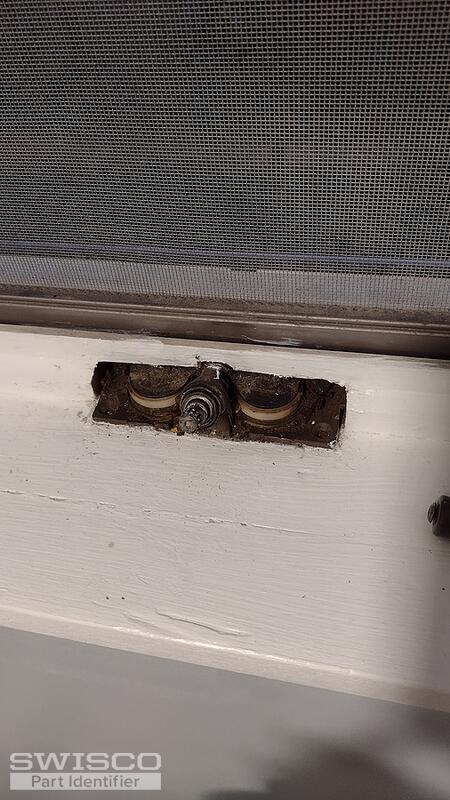

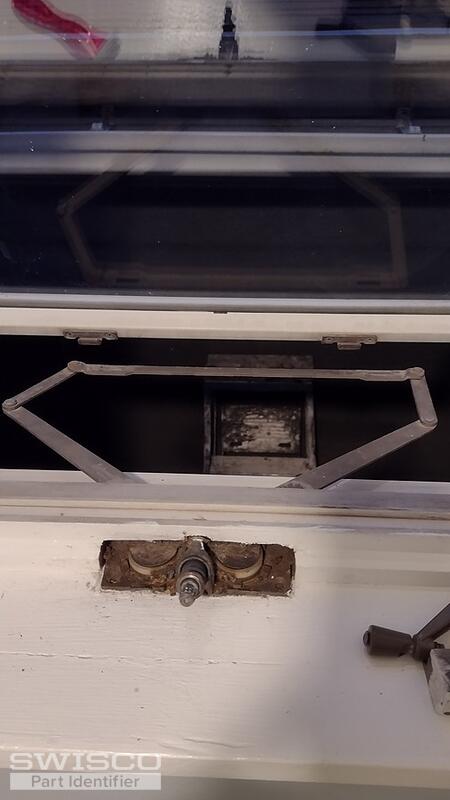

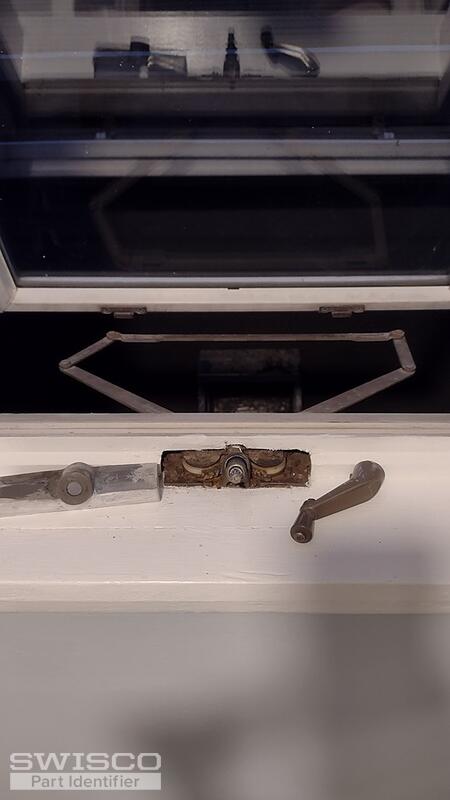

We are trying to find the correct replacement for this window crank mechanism. There are four screw holes in the metal plate part, the horizontal distance between the screws is 3 and 7/8 inches. The long arm is somewhere around 7 and 1/2 inches and the shorter arm is in the 3-4 inch range. I didn't measure the longest back arm. The longest back arm attaches to the window using two slots.

Please let me know if you need more information - we're dying to find the right part!

Tom · Accepted Answer

You have an older style Andersen awning operator which is no longer available. Andersen suggests using the modern 39-206 as an alternative. Take a look at its specs to see what you think. Note that this is not a 1:1 replacement; you will likely need to do some adapting to your window.

Dimensions for 39-206
