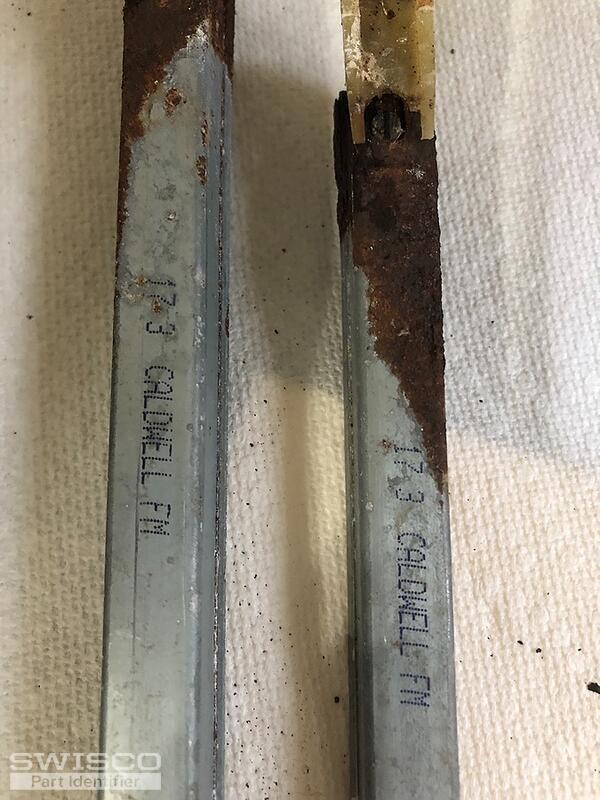

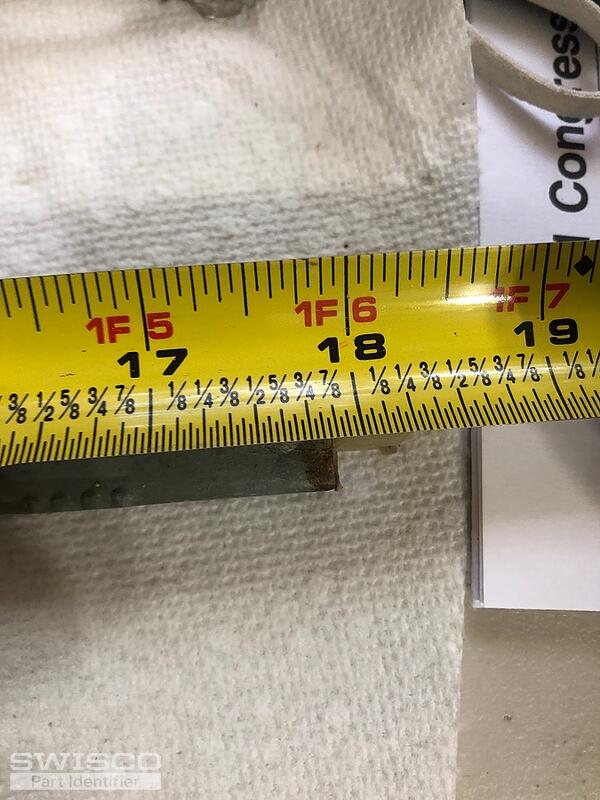

I am in need of 2 replacement balance channels complete. I have additional pics if needed. The length of the channel without plastic ends included is 17 7/8". Width is 3/8". House built in the year 1995. Markings on channel is : 17 3 CALDWELL FM
Thanks,
Ben
|
Bob from SWISCO responded:
May 26, 2021
Hi Ben. I believe this is either the S351-18 or S390-18. The only difference between these two channel balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. See the image below for details. Also, please double-check the width; it should be 1/2", but let me know if it in fact differs before proceeding. For a stamp option, you'll choose 1730.
Comparison of the S351 and S390 balance shoes.
|
|
|
Bob from SWISCO responded:
May 27, 2021
Well, if the depth is exactly 1", not 1-1/8", then the Series 351 would be the better choice. Let me know if you have any further questions. |
