Bay Window Channel Balances

A home owner from FL says:
I need your help in determining which Channel Balance I need to buy from you. I have attached photos of the
- Top
- Foot
- Overall Length Including the plastic top and foot
- Markings on the Channel Balance

I will need two of them.

Thank you.
Thumbnail of the uploaded file named Top - View A.jpg
Thumbnail of the uploaded file named Foot - View A.jpg
Thumbnail of the uploaded file named Foot - View B.jpg

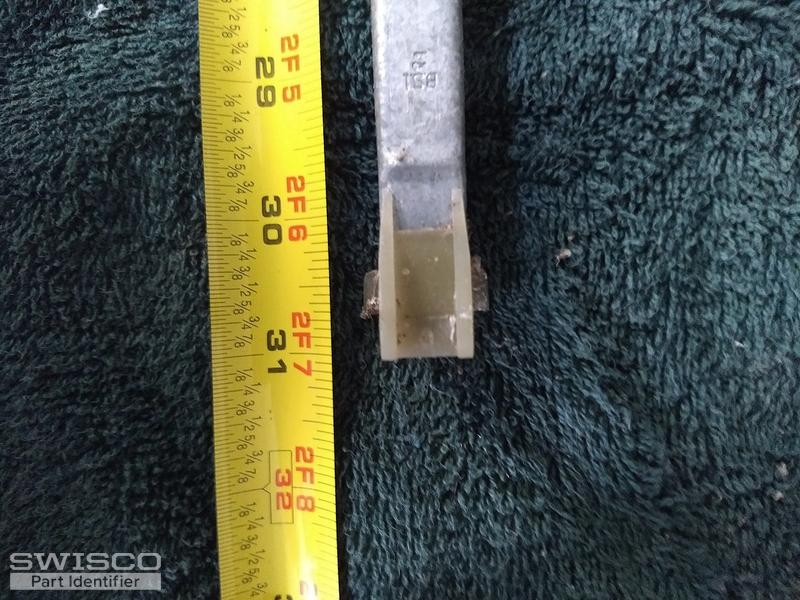

Thumbnail of the uploaded file named Overall Length - Including Plastic Top and Foot, P

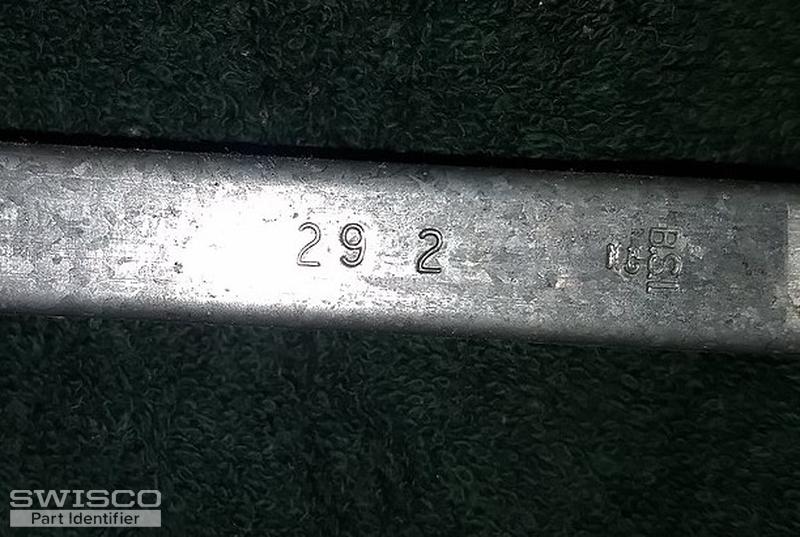

Thumbnail of the uploaded file named IMG_20200309_155146949.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Thank you for the detailed pictures, these are a huge help. You really came prepared.

Based on these photos, I recommend our S385-30 channel balance first and foremost. This comes with a 19-005 top fitting and a 15-004 bottom fitting, which is 1-3/32" deep.

If your fitting is 1" deep instead, then our S380-30 may be a better option. That's one detail you should double check just to be sure.

Regardless of the Series you go with, I'd also suggest using the 2920 option, when prompted.
