16" Channel Balance Replacement

A quick learner says:
April 28, 2020

Length, not including plastic attachments is 16". I need to order a replacement set.

Thumbnail of the uploaded file named D6E9B156-94A9-46F3-9961-5853AC8166EC.jpeg
Thumbnail of the uploaded file named 0C60FF3A-49EC-4F71-92A5-9D8A3E760746.jpeg
Thumbnail of the uploaded file named CDF5A8C9-A198-41F7-9B7E-B64CD2D9517E.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 1, 2020

Based on your photos, I think you might have a match for our S390-16 channel balance. This has a 19-001 top and 15-001 bottom nylon fitting. As long as those match up then I think it will work well.
Profile picture of Tom
Tom from SWISCO responded:
May 1, 2020

They are slightly different, but I think it's fine. Yours was probably just made by a different manufacturer. I would worry more about the dimensions. That will be what ultimately determines whether our balance can replace yours.
A quick learner says:
May 1, 2020
The channel balance looks correct! The top and bottoms don't visually look like the ones on my existing balances. I am attaching 5 additional close-up photos of each plastic attachment. Please confirm. Thank you.

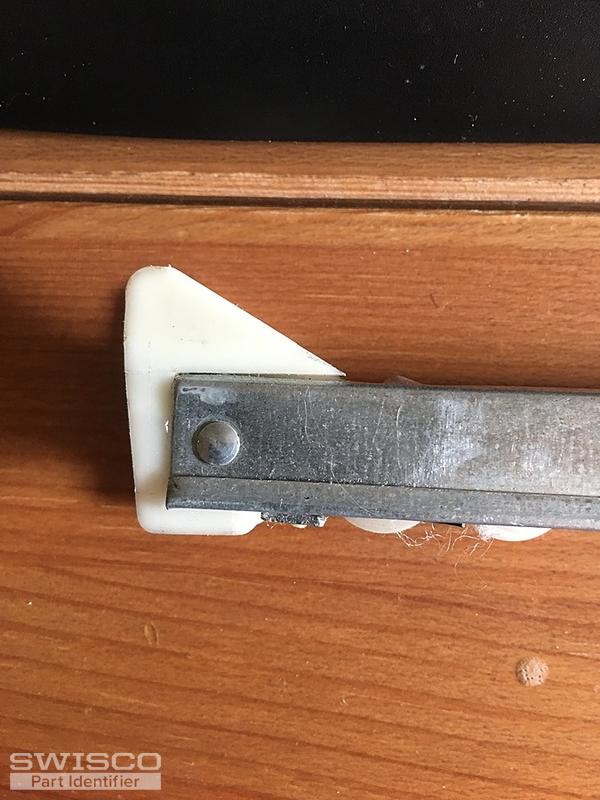

Thumbnail of the uploaded file named IMG_1011.JPG

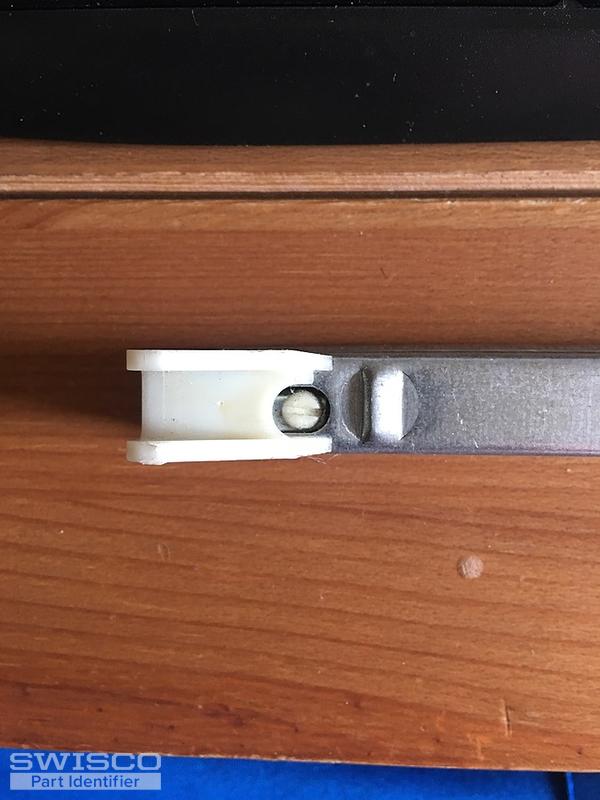

Thumbnail of the uploaded file named IMG_1012.JPG

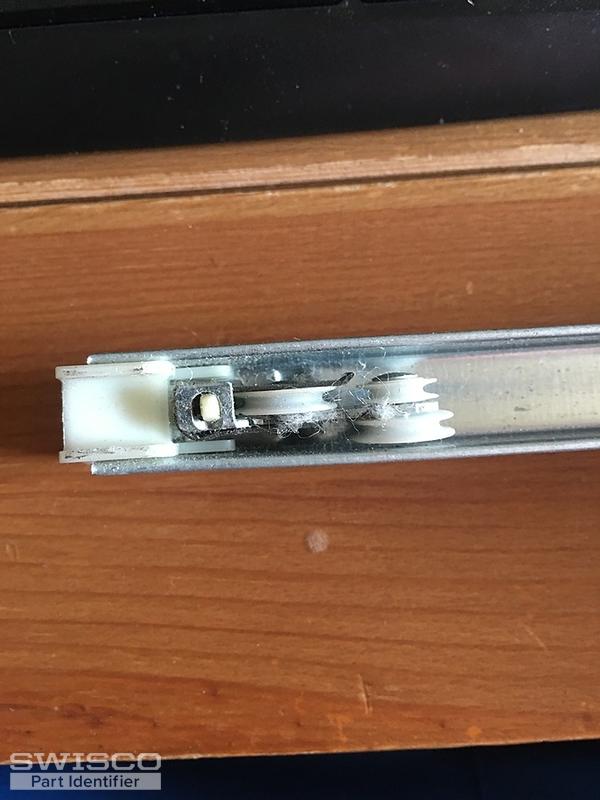

Thumbnail of the uploaded file named IMG_1014.JPG

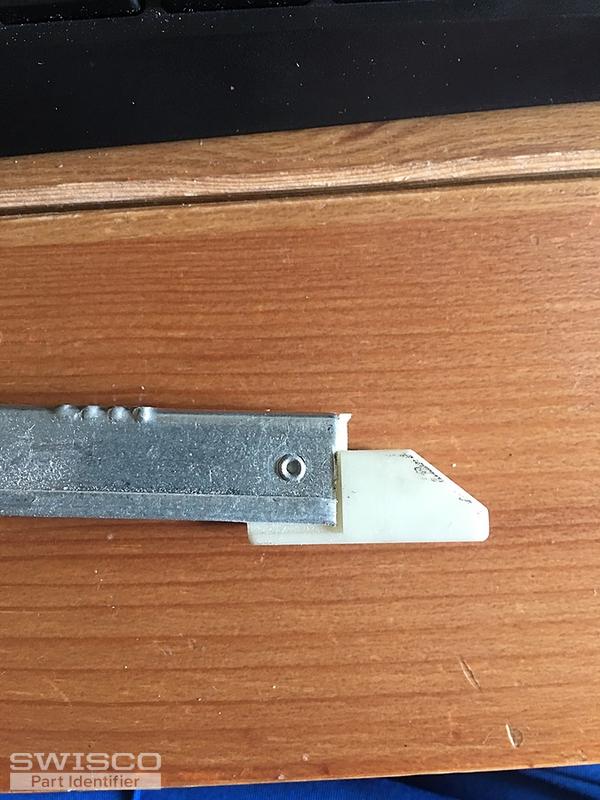

Thumbnail of the uploaded file named IMG_1017.JPG

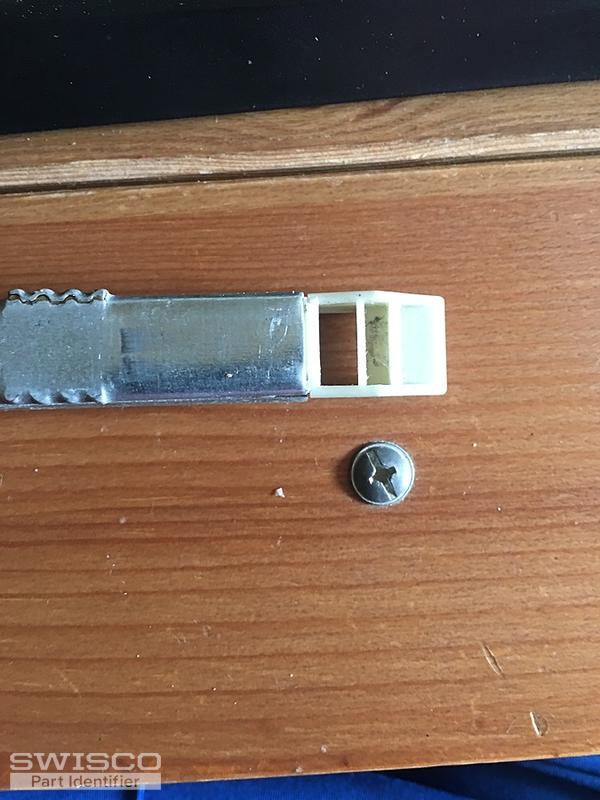

Thumbnail of the uploaded file named IMG_1018.JPG
A quick learner says:
May 7, 2020
Tom, how do I know whether to get the 1510, 1520, etc. I see its based on weight including friction of the jam itself. Its a fairly small kitchen window. I'd guess 1530 but don't want to under/over size it, is there any rule of thumb? Thank you for your help on this by the way.

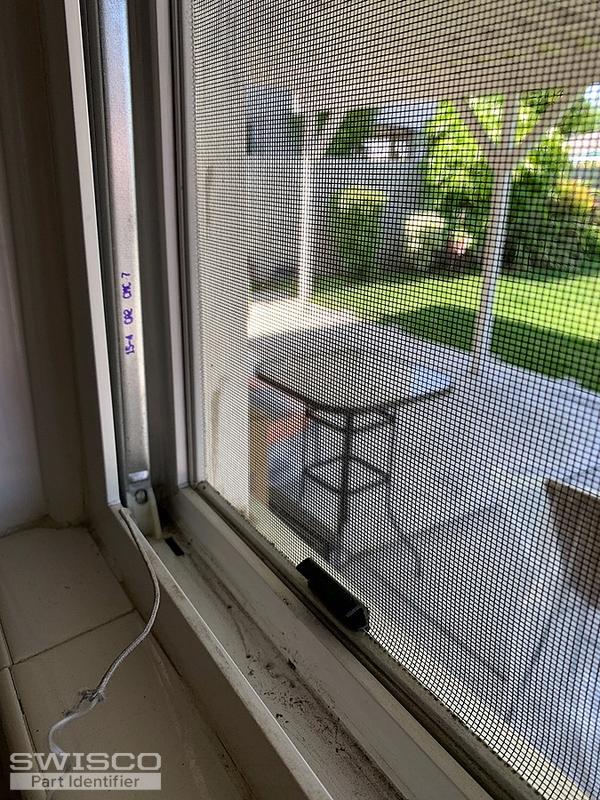

Thumbnail of the uploaded file named IMG_1081.JPG

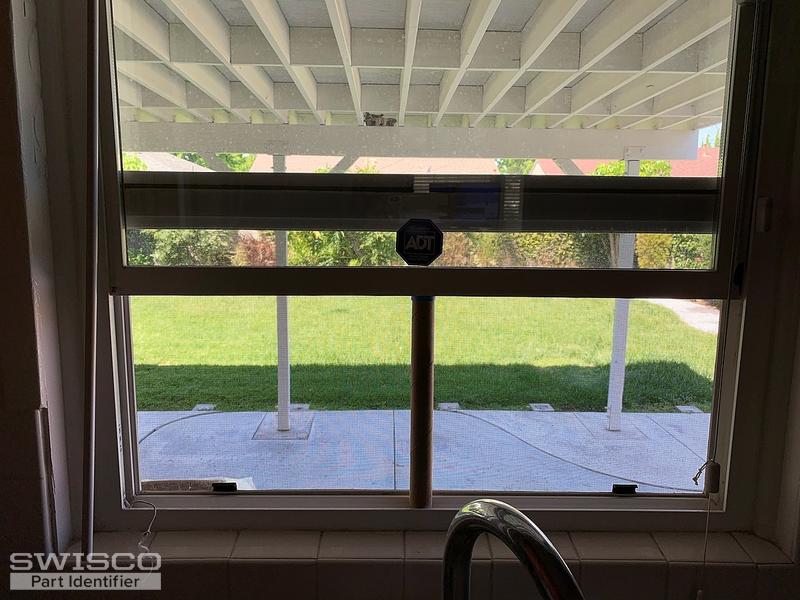

Thumbnail of the uploaded file named IMG_1082.JPG

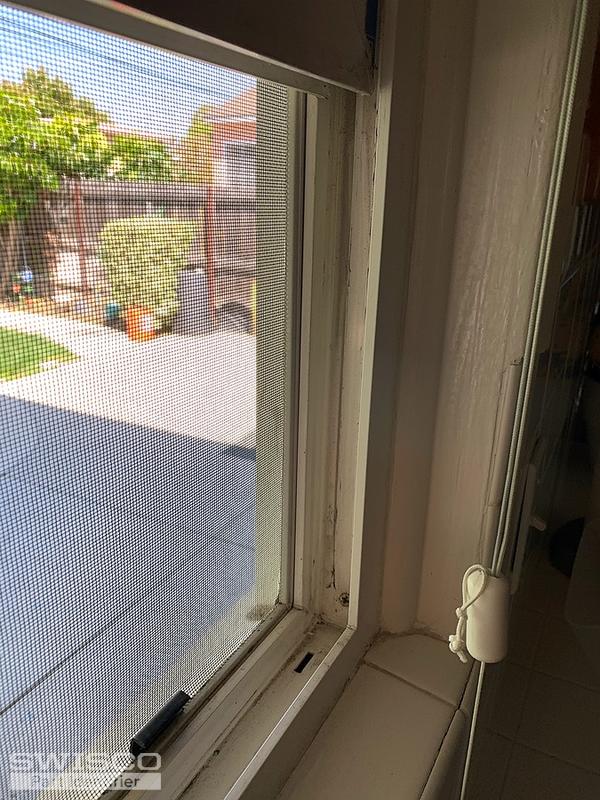

Thumbnail of the uploaded file named IMG_1083.JPG
Profile picture of Tom
Tom from SWISCO responded:
May 7, 2020

Since your old stamp is 15-4, I would recommend the 1540 stamp option. If you have any doubts, you can always weigh your sash on a scale and refer to the chart we show on the S390-16 store page.
