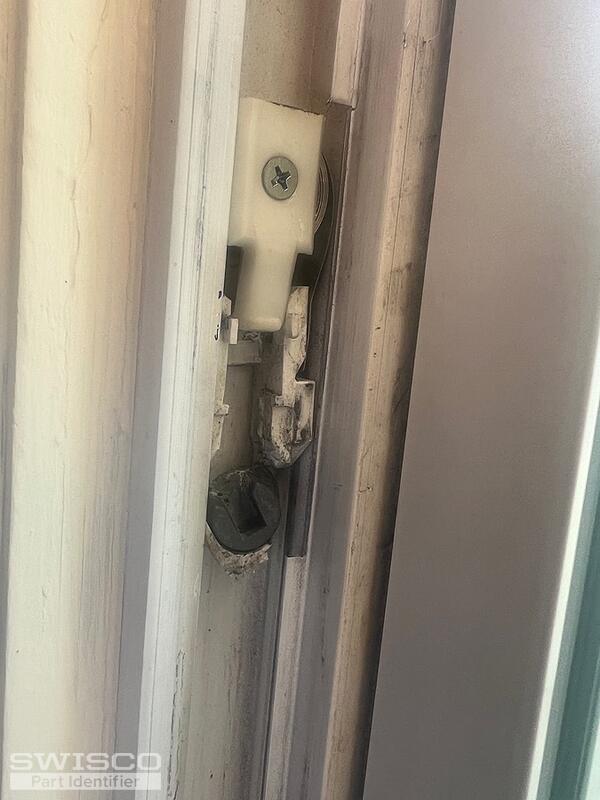

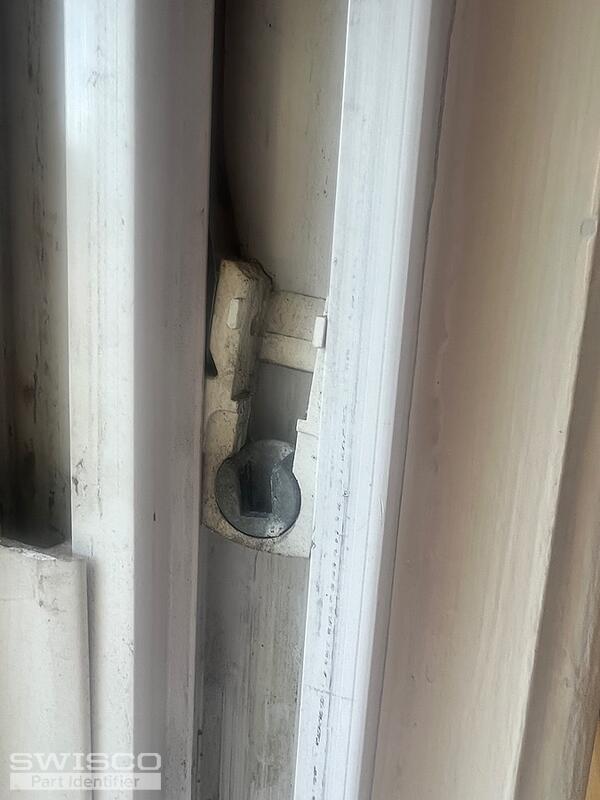

Better Built early 2000s tip out double hung. The number 5 on the spring

Question

I need four more each of these tip out balance shoes - complete assembly, meaning the upper block and the lower shoe with spring attached.

Lauren · Accepted Answer

Hello, thank you for posting,

Your pivot shoe resembles the 15-180 that is compatible with the Series 190 coil springs. Please compare the dimensions below to confirm a good fit! You will need to look for a number stamped on the original coil spring to determine the weighted option needed.

If there are no markings, we will need to know the weight of the ash to move forward.

Also see the 15-182 balance bushing and 15-186 balance clip. Please let us know if you have any additional questions!

Alternate image for 15-180
