Bi-Fold Door hardware replacements

A quick learner from Indiana says:
March 3, 2020

Doors are 36w x 93.5L

I would like to eliminate the bottom track period on it and it be top track only. There is no markings on any of these pieces. I need to know what I need to order for the doors parts wise.

Regardless of the outcome of this post I will need new tracks as well. These doors are 49+ years old and the tracks are cracked and split apart.  So if there is a kit where everything is including that would be the way to go

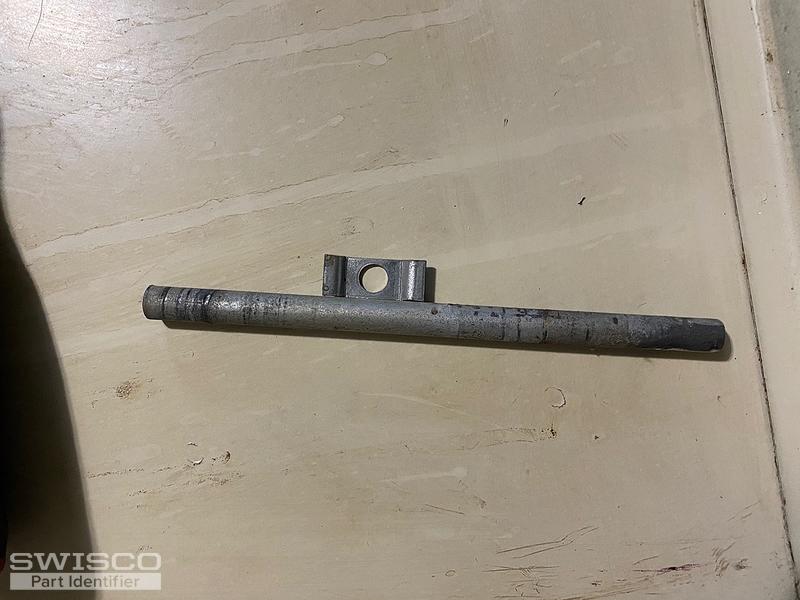

  • The two with no threads are 5 1/4 long
  • The one with threads is roughly 5 1/4 long as well. It's bent so an exact measurement can't get.

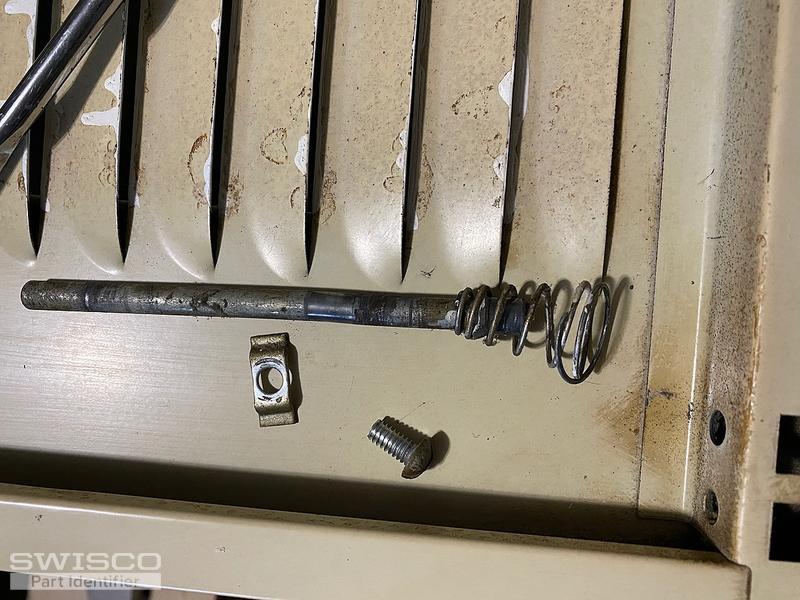

  • The one with the spring is is as well 5 1/4
  • The diameters are 5/16 on all

Thumbnail of the uploaded file named A6753032-0FC6-406F-9FFF-1F8FFCE91505.jpeg
Thumbnail of the uploaded file named B9045336-B693-490D-A93C-D6B338274FFF.jpeg
Thumbnail of the uploaded file named 0BB455C4-D9A3-4692-AC8B-64908759CBCF.jpeg
Thumbnail of the uploaded file named D0E573E3-0F9E-455B-8A06-91A847DAAB44.jpeg
Thumbnail of the uploaded file named 1B189403-6449-4B02-9ABD-B41CD8639C24.jpeg
Profile picture of Paul
Paul from SWISCO responded:
March 6, 2020

I noticed you have the older style Slimfold bi-fold door hardware. You can use Slimfold's newer style hardware parts for your door. You will need one of the 21-001 bottom threaded pivot pin and three of the 21-007 spring loaded pins. Look these parts over and see what you think. I will also associate a video below that shows how these parts are installed.
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
