Bi fold door hardware

Quick Learner from Morrisville,mo

Dec 1, 2020 9:05 am

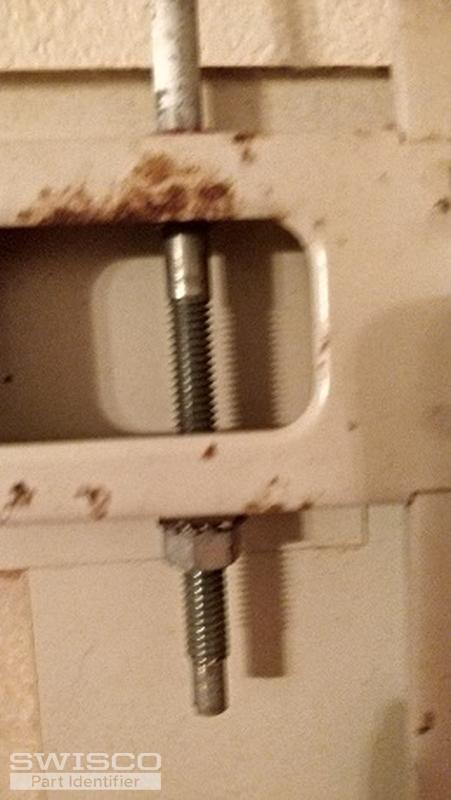

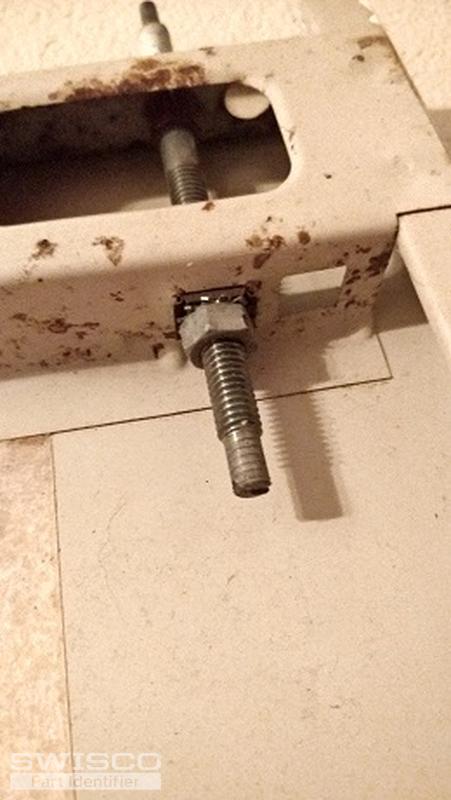

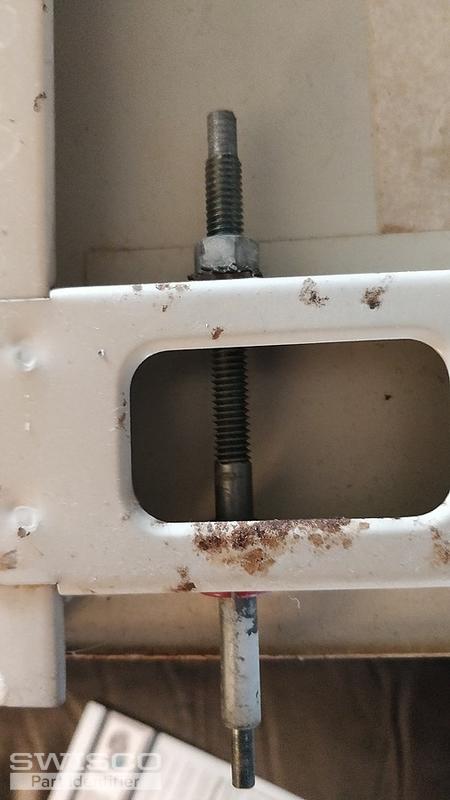

I need a few parts for my metal bifold door.I need a track that measures 29-1/2"long or a 36" pc. I also need the bracket that the bottom pin slides into that mounts to the jamb or floor and the top guide and pivot pin..If you need any more information please let me know? Thanks

5 user uploaded images

6 Replies

Bob from SWISCO

Dec 3, 2020 2:55 pm

Can you tell me the diameter of the pins as well as the diameter of the caps atop the pins? Can you also tell me if there's any label on the door that states the brand or manufacturer? From there I should be able to pinpoint what you need.

Quick Learner from Morrisville,mo

Dec 7, 2020 11:59 am

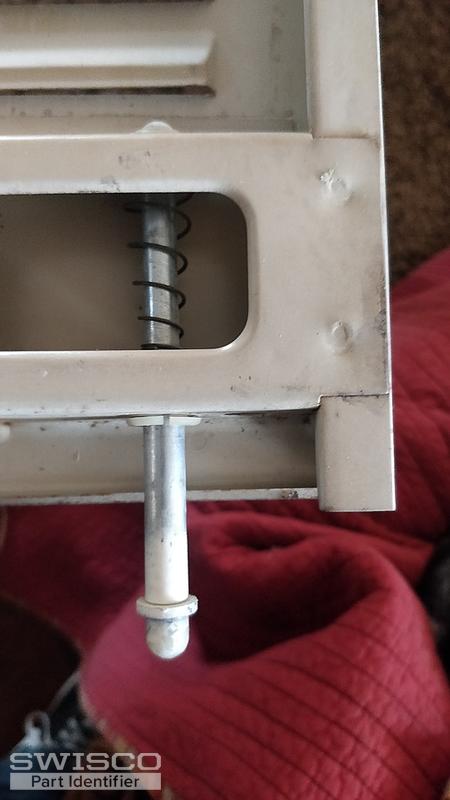

The pins measure 1/4 diameter and the bottom caps measure 3/16"diameter. The top spring pins measure 3/8".

The first pic is the first measurements, and then the second.

3 user uploaded images

Bob from SWISCO

Dec 8, 2020 8:34 am

Thanks for getting back to me. Start by looking at our 21-022, 21-024, and 21-044 Float-Away Pins. See if these match your old hardware. Let me know what you find.

Quick Learner from Morrisville,mo

Dec 9, 2020 2:17 pm

I also need a top track and a bottom bracket for the bottom pin.

Paul from SWISCO

Dec 10, 2020 12:29 pm

Perhaps I can assist you. You probably will be able to use the 21-203 pivot bracket for the bottom track. Unfortunately the top track isn't available. We suggest the 21-401 track with two 21-007 spring loaded pins. You will use the one as a top pivot pin and the other as the top guide pin.
