Bi fold door parts

Handy Person from North Branford, CT
Hello, I need to get a full set of parts for (2) sets of double doors.
Do you have the parts in kit form? as opposed to individual?If I knew what parts I needed I would be able to order them. I'm redoing a condo that has your doors with parts missing. I don't know what parts they are, so if I could get a whole set, then I would be able to figure it out

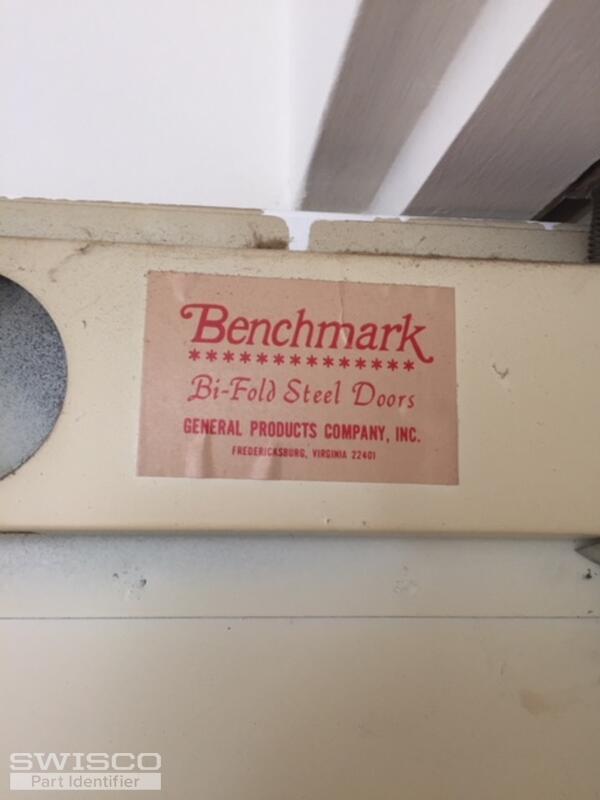

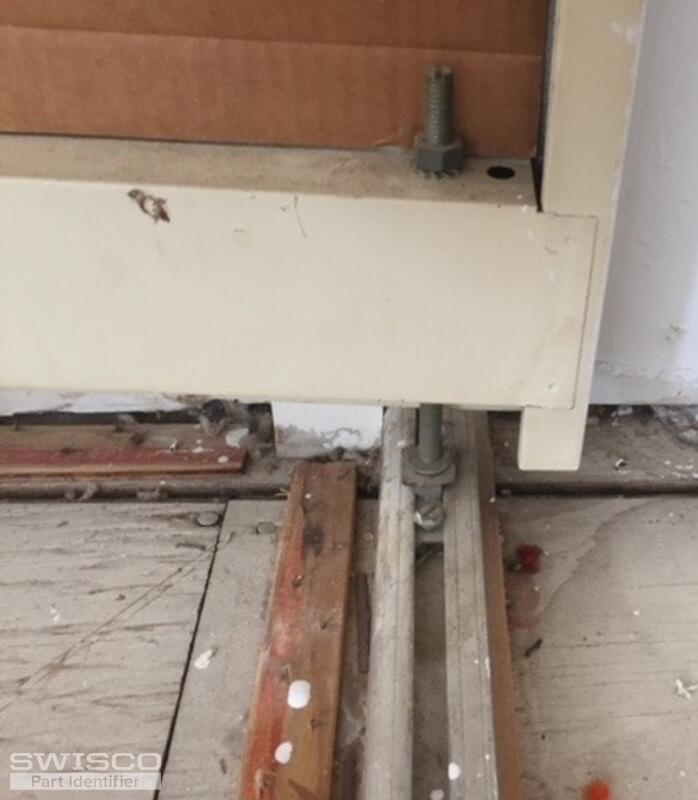

2 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hi there- thanks for your post!

The parts for the Benchmark doors are simple to install. For each panel door you will need one of our 21-002 bottom threaded door pivot and three of our 21-044 spring loaded guide pins. So each set you would need 2- 21-002 and 6- 21-044.

Check the nylon grommets, our 21-163 help the pins slide through the steel door holes. The pivot brackets, 21-209 in the tracks and finally the rubber bumpers that fit in the top and bottom middle tracks between the two doors.

To install the doors, position the door panel to the tracks, place the bottom threaded pivot pin, 21-002 into the bottom bracket, 21-209 swing the door up and lock in the top guide pin 21-044 into the top bracket and then the two other guide pins into the tracks. Adjust the bottom thread pivot pins to square up the doors. Do the same on the other door panel and install the rubber bumpers, 21-276 into the top and bottom tracks between the doors.
