Bifold door pin parts

A quick learner from USA says:

December 15, 2016

Hello, I need part numbers for both complete pins and brackets for bi fold doors as shown.

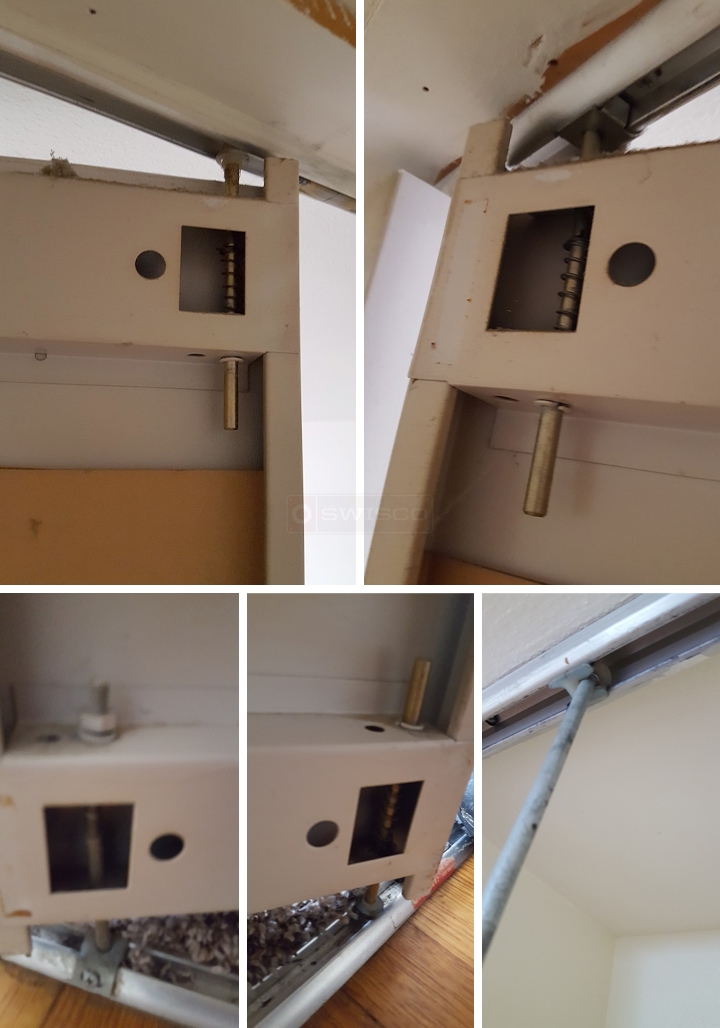

User submitted photos of bi-fold door hardware.

Paul from SWISCO responded:

December 20, 2016

You didn't give the thickness of the pins you are using, but we may still be able to help. Your track pivot bracket appears to match our 21-206. Can you confirm? If so, that would indicate 1/4" thick pins. I would recommend our 21-054 door pin, 21-058 bottom pivot pin, 21-054 guide pin, a 21-206 bracket with a 21-062 threaded pivot pin, a 21-206 bracket, a 21-026B plain pin, a 21-250 spring and finally a 21-150 1/4" nylinder. Let me know what you think.

1/4" Pin Pivot Bracket, Leigh, Monarch

21-206

$3.15

Bifold Door Pivot, Leigh

Bifold Door Top Pivot and Guide Pin, Leigh

21-054

$7.57

Bifold Door Guide Pin, Leigh, Monarch
