Bifold door slide

A handy person from Ohio says:
February 9, 2020
I,m looking for the door slide for a 24" door. The track is 3/4" outside width, inside is 5/8" best I can tell. I will also need the pin that goes in the top of the door.
Thank you for your help
Bob
Thumbnail of the uploaded file named 20200209_175406_1581292369542_resized.jpg
Thumbnail of the uploaded file named 20200209_175306_1581291332279_resized.jpg
Thumbnail of the uploaded file named 20200209_175328_1581292369728_resized.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 13, 2020

Thanks for contacting us, Bob. I'm afraid I can't make out what you have based on these photos. We'll need you to remove the hardware in question from the door and show us what they look like without obstruction. This will be necessary for both the guide and pin. We'd also like you to confirm your dimensions once these parts are out, since they will likely be different. Let me know!
A handy person from Ohio says:
February 14, 2020
I will send more pictures.

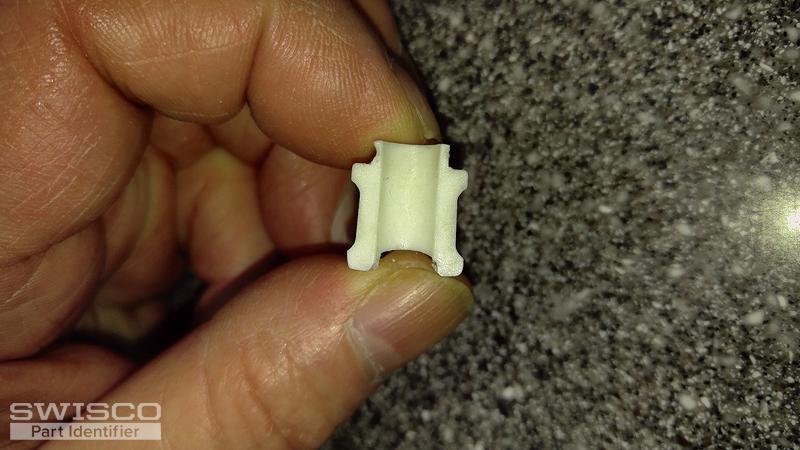

Thumbnail of the uploaded file named 20200214_195143.jpg

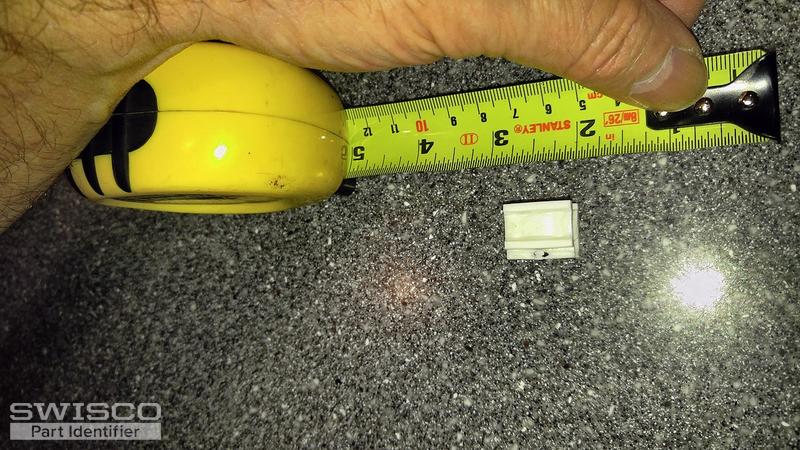

Thumbnail of the uploaded file named 20200214_195043.jpg

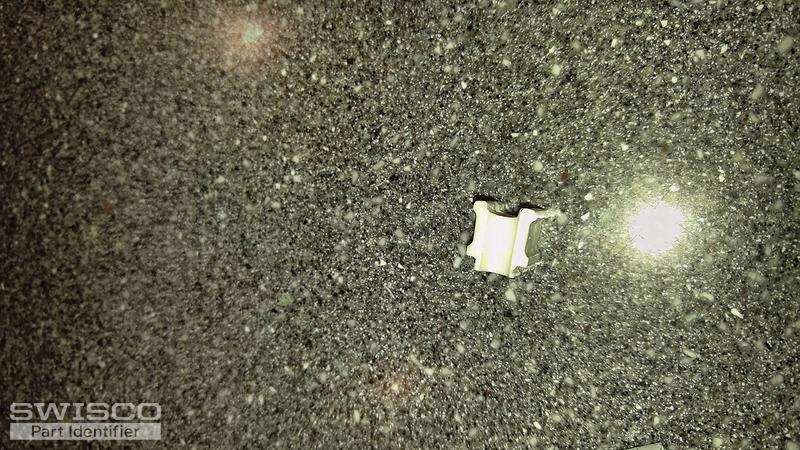

Thumbnail of the uploaded file named 20200214_195013.jpg

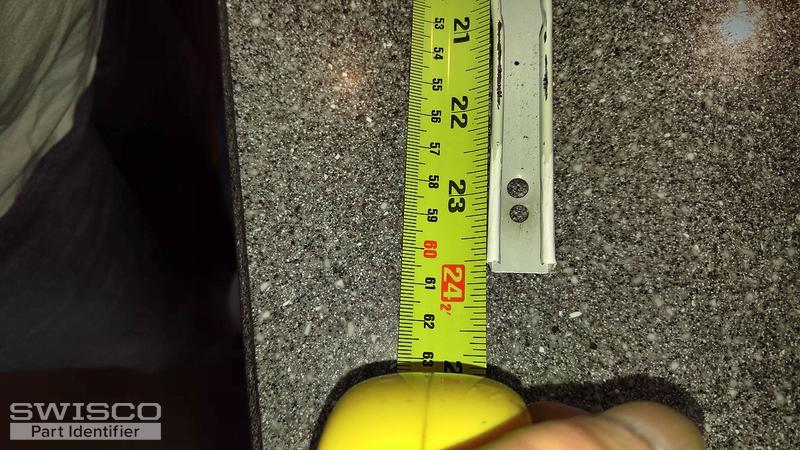

Thumbnail of the uploaded file named 20200214_194806.jpg

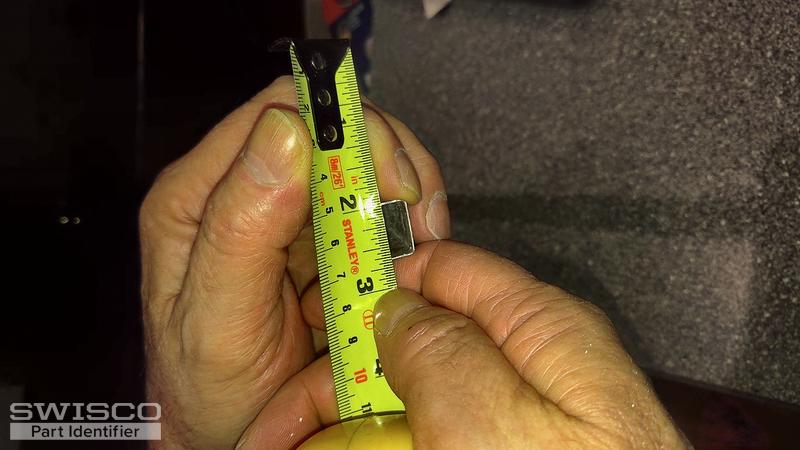

Thumbnail of the uploaded file named 20200214_194747.jpg
A handy person from Ohio says:
February 14, 2020
If you need more info just let me know. I am looking for all the hardware and a piece of track.
Thank you

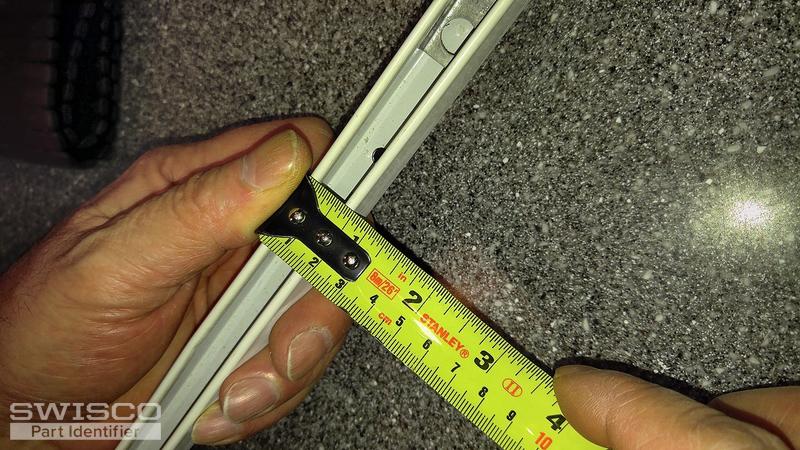

Thumbnail of the uploaded file named 20200214_194720.jpg

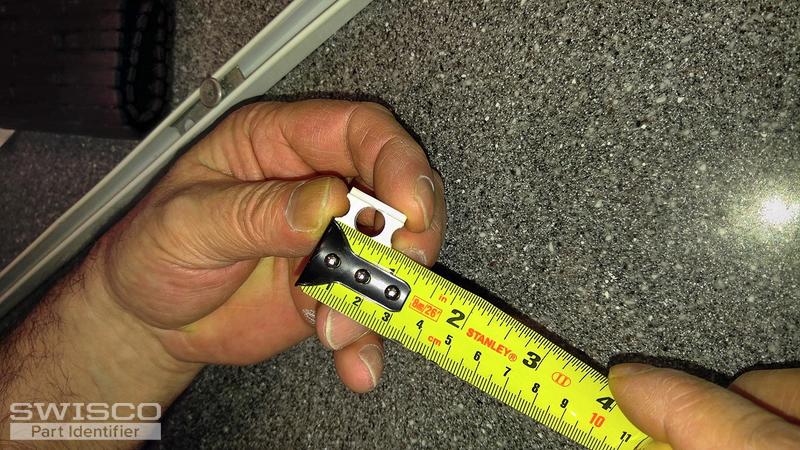

Thumbnail of the uploaded file named 20200214_194617.jpg

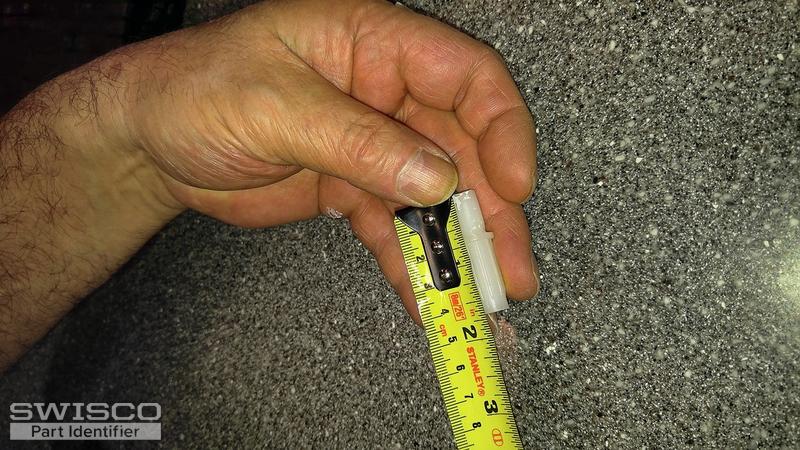

Thumbnail of the uploaded file named 20200214_194532.jpg

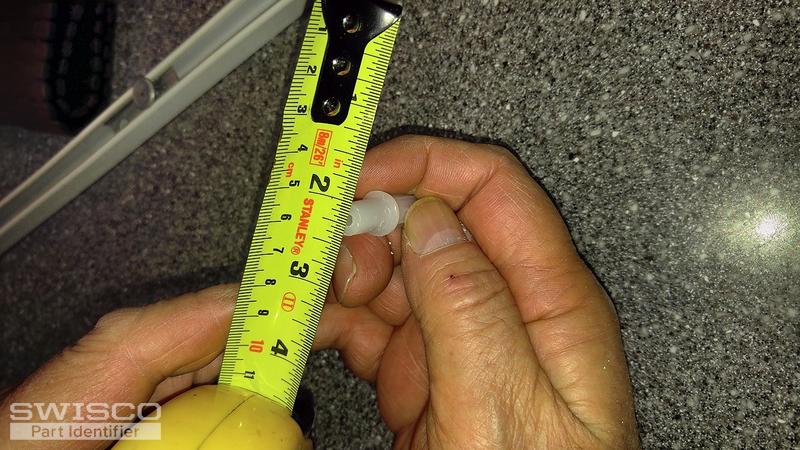

Thumbnail of the uploaded file named 20200214_194557.jpg

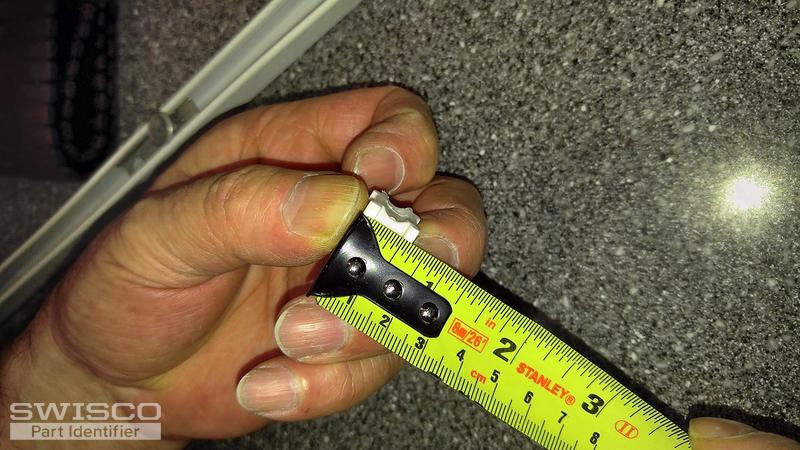

Thumbnail of the uploaded file named 20200214_194655.jpg
Profile picture of Paul
Paul from SWISCO responded:
February 17, 2020

Hi there, maybe I can help. Your nylon top pivot guide looks like our 23-123, which was used by Stanley, but I don't recognize the top guide. I believe this is an old and discontinued part.

I'm not 100% sure what will work best as a substitute, but I suggest using the new 36" long 23-509 Stanley track. You can cut it down to size with a hacksaw. Then, I recommend using our 23-118 top pivot pin and 23-195 7/8" nylon top guide.

Let me know what you think of this solution.
Bi-Fold Door Top Pivot Guide
Bi-Fold Door Top Pivot Guide
23-123
$0.75
Bifold Track with Pivot Bracket, 3' Open
Bifold Track with Pivot Bracket, 3' Open
23-509
$7.10
Spring-Loaded Top Pivot Pin
Spring-Loaded Top Pivot Pin
23-118
$1.25
Guide Wheel, 7/8" Nylon, Top Guide
Guide Wheel, 7/8" Nylon, Top Guide
23-195
$1.70
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
