Bifold door track replacement

Quick Learner from 03053

Jan 25, 2024 3:37 pm

Hello... I'm looking to replace a 60-inch 4 door bifold track. I saw your product #23-455 that looks like it could be a good replacement for my old 60 in Johnson tract. I was wondering which top pivot bracket assembly would fit it and could I use the existing top pivot currently attached to the top of the two doors? Thanks in advance.

6 Replies

Emily from SWISCO

Jan 26, 2024 3:32 pm

Hi there!

Thank you for reaching out to us. The best match really depends on the original hardware that your door uses. Can you us some photos of the track and the pins and or pivots? We will do our best to help from there.

Quick Learner from 03053

Jan 29, 2024 3:30 pm

Emily,

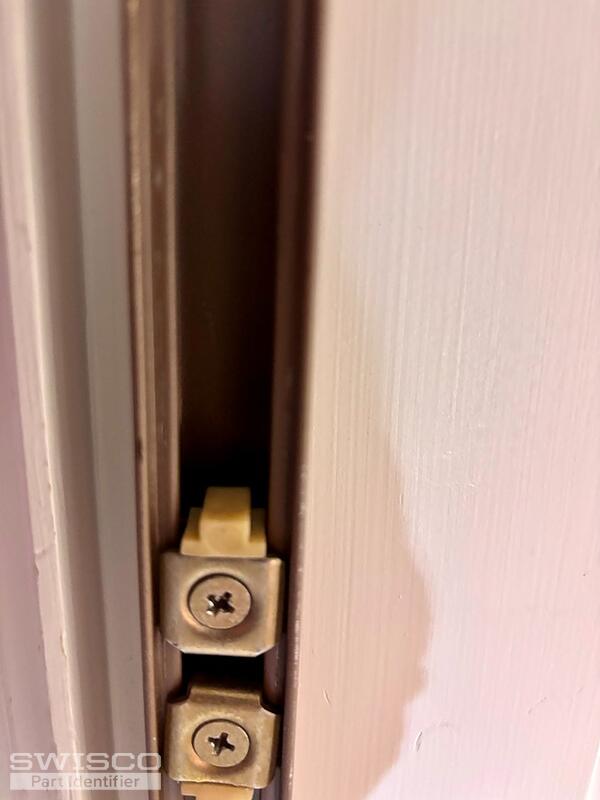

Here are the photos of the track, pins and pivots of my bifold door as requested.

Thanks for your help.

Ed

4 user uploaded images

Paul from SWISCO

Jan 30, 2024 9:25 am

Thank you kindly for the photos! The Johnson track you need is the 23-463. This comes with two 23-134 pivot brackets and two 23-148 track stops. Have a look and let us know if you have any questions.

Quick Learner from 03053

Jan 30, 2024 2:54 pm

Hi,

Thanks for your help.

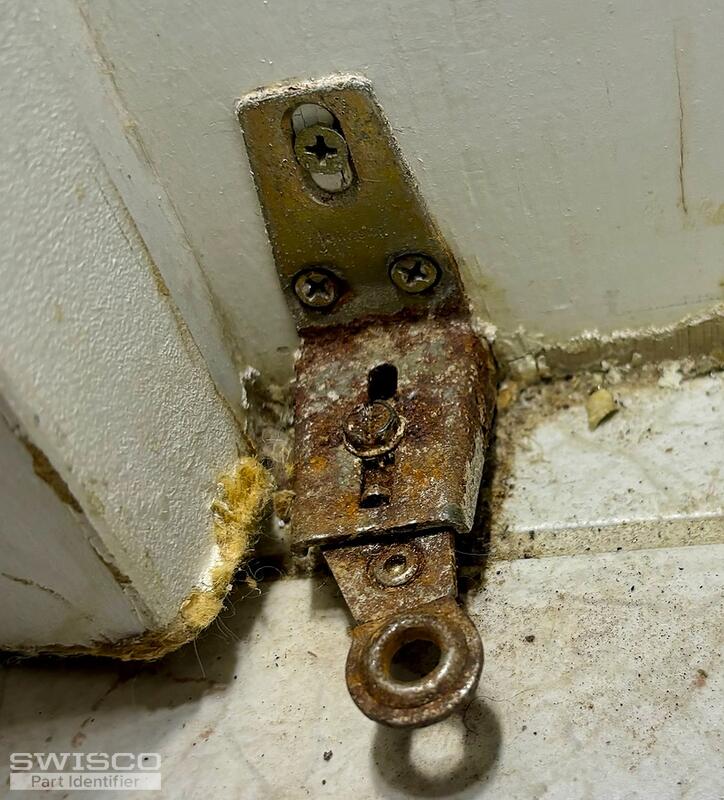

One last question before I place an order. Is the bottom pivot bracket #23-292 the correct replacement. I've attached a photo of this item that needs to be replaced as well.

Thanks,

Ed

1 user uploaded image

Paul from SWISCO

Jan 31, 2024 8:30 am

Yes, I do believe the 23-292 would make a great match so long as the specifications align.
