Bifold hardware

A home owner from North Canton OH says:
Metal bifold doors 36" wide by 93" high. Need new track and hardware. I can give more detailed information if you need it.
Thumbnail of the uploaded file named Ellet track2.jpg

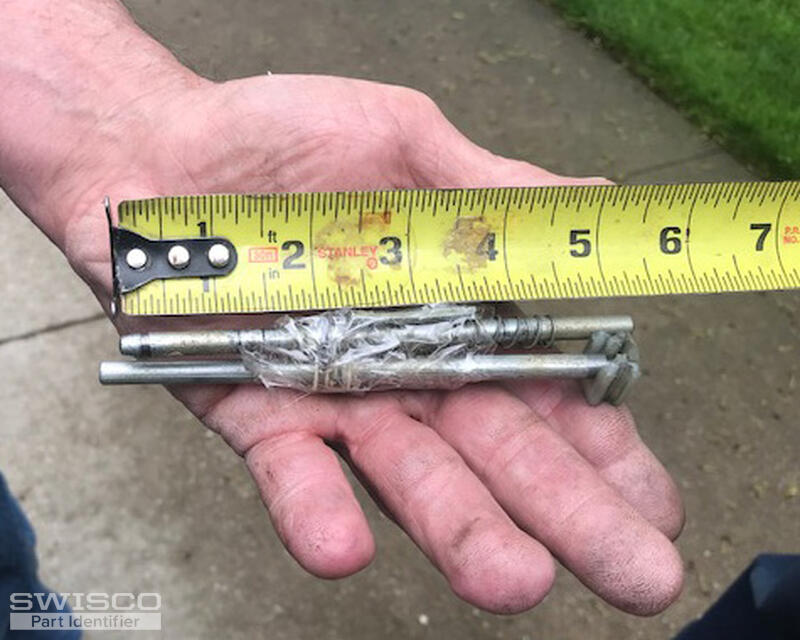

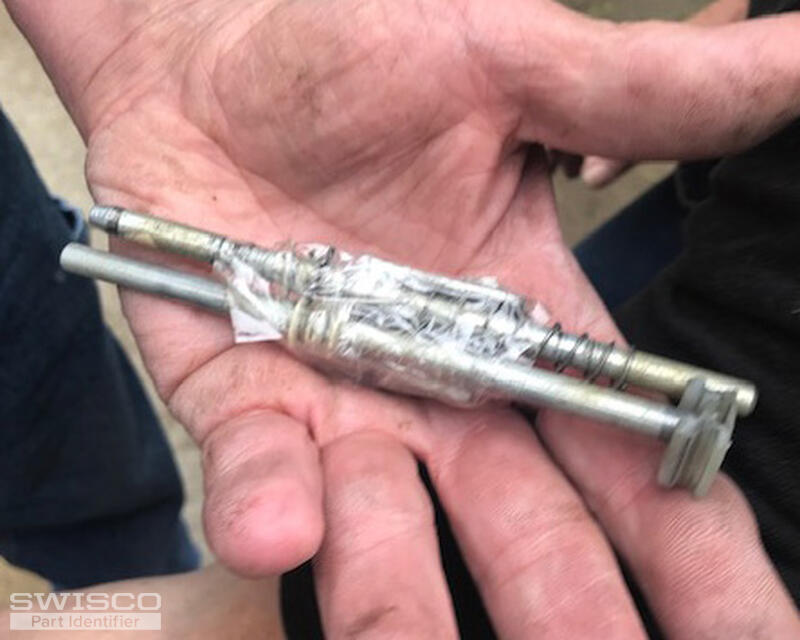

Thumbnail of the uploaded file named Ellet pins1.jpg
Thumbnail of the uploaded file named Ellet pins2.jpg

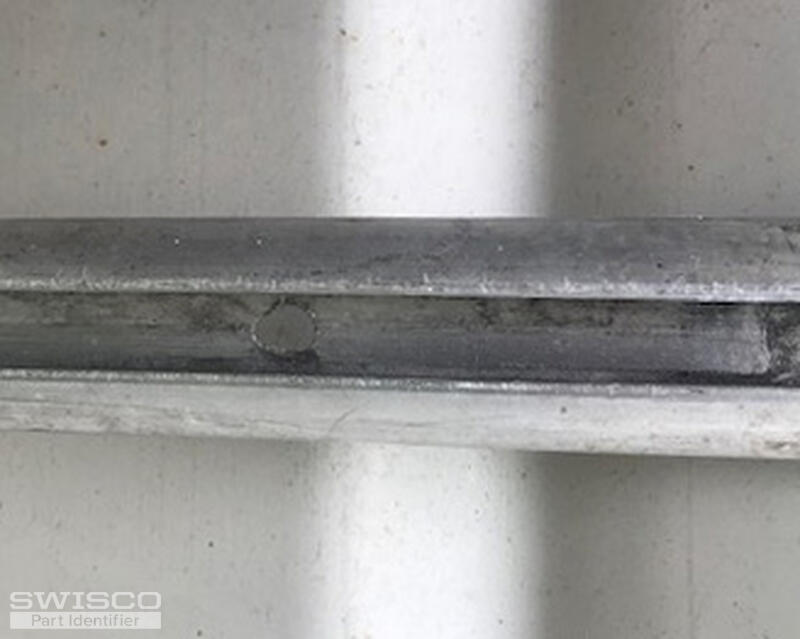

Thumbnail of the uploaded file named Ellet track1.jpg
Profile picture of Paul
Paul from SWISCO responded:

This is a very old and discontinued Leigh closet door setup. I've known some people who have converted this bi-fold doors by using our 21-403 track along with a 21-002 threaded bottom pivot pin and the other three with the 21-007 spring loaded pins. You might also need some 21-150 and 21-151 nylinders on the door holes for the pins to fit snugly. Finally, You will also need 21-277 rubber bumpers to help keep the doors closed.

21-002 : Bifold Door Pivot Pin, Benchmark
Bifold Door Pivot Pin, Benchmark
21-002
$3.70
VIEW >
21-007 : Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.20
VIEW >
21-150 : 1/4
1/4" Nylinder
21-150
$0.32
VIEW >
21-151 : 5/16
5/16" Nylinder
21-151
$0.35
VIEW >
21-154 : Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.25
VIEW >
21-277 : Bifold Track Bumper
Bifold Track Bumper
21-277
$1.95
VIEW >
21-403 : Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$16.45
VIEW >
