Please help me find a replacement part. See the picture for the part fitting into the top of a closet bi-fold door. It may date to the '50s. The top edge of the nylon wheel sits inside the channel above the door. The channel is attached to the bottom of the door frame. The lower edge of the wheel is LARGER in diameter than the top of the wheel to hold and guide the door along the channel.
Thanks in advance for your help.
Here are the dimensions I obtained using a digital micrometer. The conversion to fractions may be a bit rough:
Top of wheel diameter: .825" = 13/16"
Bottom of wheel diameter: .932 =15/16"
Track inside width varies: .850 " = 7/8"= 14/16"
.844" = 7/8 "
Diameter of the base mechanism inside the top of the door: .45" = 7/16"
Diameter of the top of the base unit sitting atop the door: .77" = 3/4"
It looks similar to your model 23-172 top guide. What do you suggest?
Thank you again,
RR

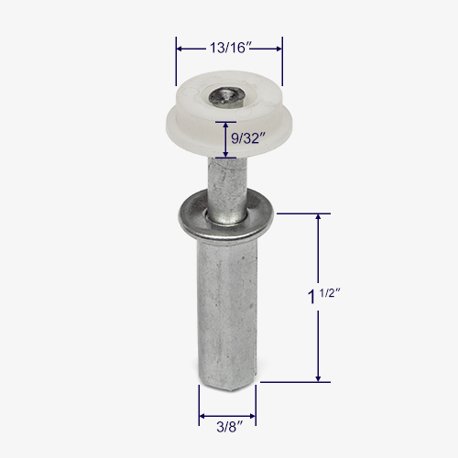

Bifold pin similar to the 23-172 model
Handy Person from McLean, VA
Jun 30, 2022 5:23 pm
1 user uploaded image
5 Replies
Casey from SWISCO
Jul 5, 2022 3:42 pm
Hello,
I agree that as long as the dimensions below match up to your part, the 23-172 looks like a promising replacement. Thanks for posting!
Dimensions for 23-172
Handy Person from McLean, VA
Jul 8, 2022 4:24 pm
Thank your for your reply. I need one more dimension for the 23=172 please. The diameter of the wheel is 13/16" at the top. What is the diameter at the bottom? It appears to be wider. Thank you,
RR
RR
Casey from SWISCO
Jul 11, 2022 3:34 pm
The wider part of the wheel measures 31/32". Please let us know if you need anything else.
Handy Person from McLean, VA
Jul 11, 2022 3:45 pm
Thank you!!!
I will order two.
I will order two.
