BiltBest Casement Window replacement Crank

Question

Hi, I have attached some pictures of my crankarm. From another post/response I am pretty sure it is the 39-032 crankarm I need. Can you confirm this or send me in the right direction.

The long arm measures 10 3/4" (same length). The short arm measures 4 7/16" (same length). Part numbers - main body 40254, long arm 30472 R. H., short arm 20810. The body is 4 7/8" by 2 1/8".

Thanks,

Dick

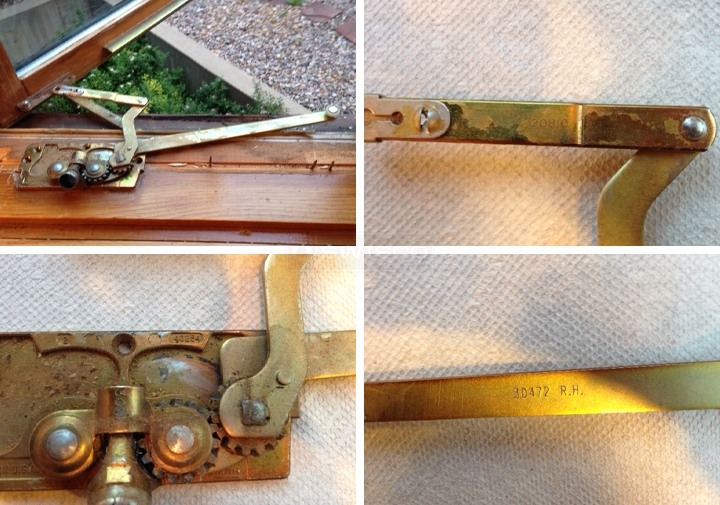

User submitted photos of a window operator.

Tom · Accepted Answer

Thanks for posting, Dick. I agree, the 39-031 and 39-032 look close. The dimensions seem to match, as well. Just double check your dimensions to make sure they're the same as what we show.
