Block and Tackle Sash balancer

Start a new Discussion

Handy Person from Naples

Mar 29, 2018 1:43 pm

Does the stamping "34 3 DQ Caldwell" help in cross referencing the right part for my window?
I need 2 balance rails.

5 Replies

Handy Person from Naples

Mar 29, 2018 1:48 pm

In attention to my previous post, the dimensions of the existing rails are 1/2" X 35".

Casey from SWISCO

Mar 29, 2018 2:25 pm

Please send us over a few photos of your balance, including the nylon caps on both ends, and we'll be able to point you in the right direction.

Handy Person from Naples

Mar 29, 2018 2:32 pm

Searching your sight, and on the weight of the sash (25 lbs)the length of the bar (35") and the configuration of the top and shoe, I believe that I ordered the right components for my window.

I ordered a pair of S395-35 with option 3440

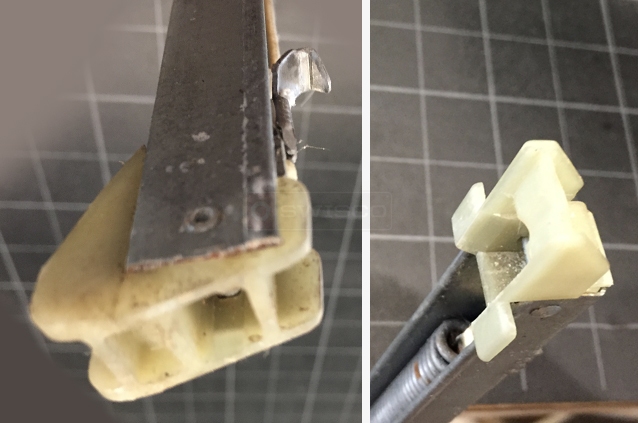

As requested I sent a couple of pics of the top and shoe.

Channel Balance

Tom from SWISCO

Apr 2, 2018 1:59 pm

Thanks for getting back to us! Good eye, I agree with the parts you picked out. Let me know if you have any other questions.
