Block and Tackle Window Balance 26 4 IV CMC 9

Question

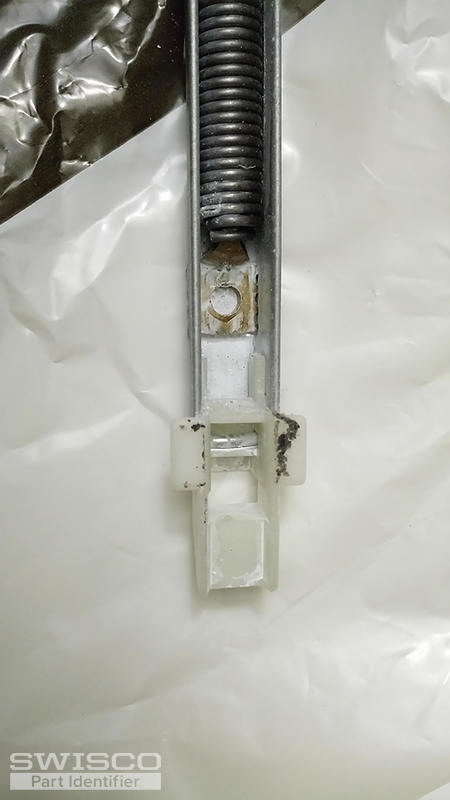

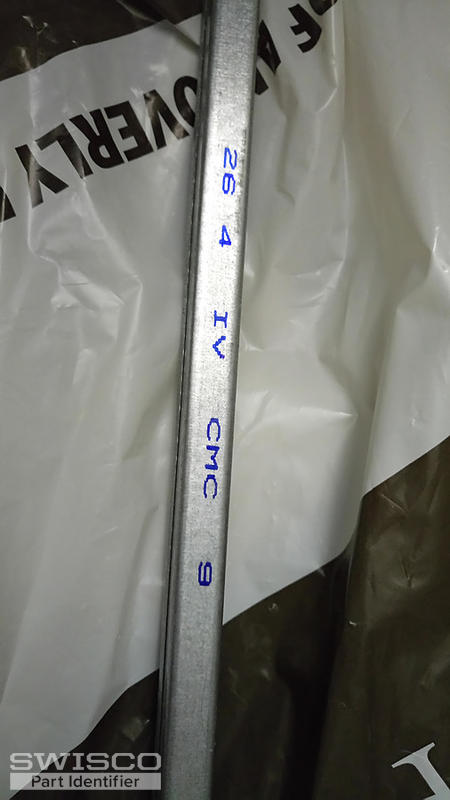

Hello:  We have single hung windows that need replacements balances; could you recommend an appropriate balance?  Please find photos of the markings, as well as views of each end.  Thanks in advance.

Bob · Accepted Answer

This looks like either an S380-27 or S385-27. The difference between these two balances is the bottom nylon shoe depth. The picture below illustrates this. Compare both with your old hardware to see what matches best. You will need a stamp option of 2640.

Comparison of the S378, S380 and S385 balance shoes.
