Block and Tackle Window Balance

Home Owner from Florida

May 10, 2021 11:21 am

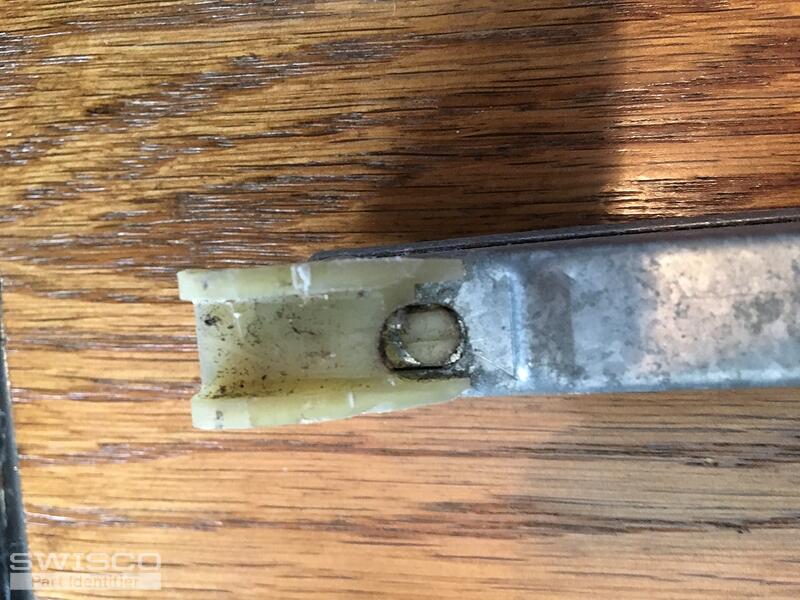

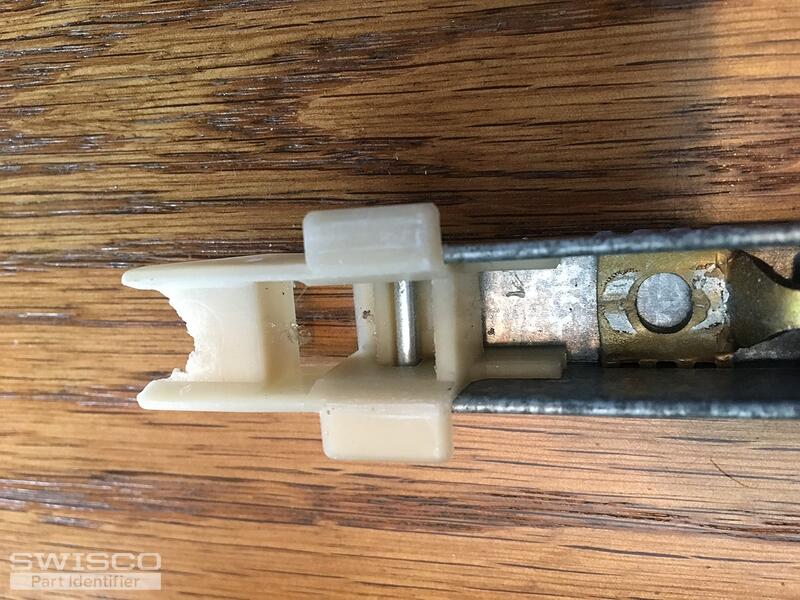

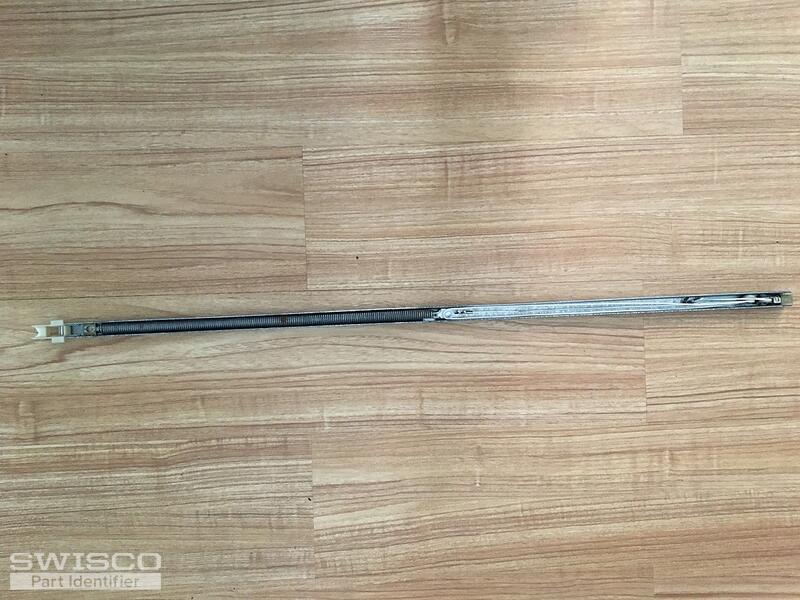

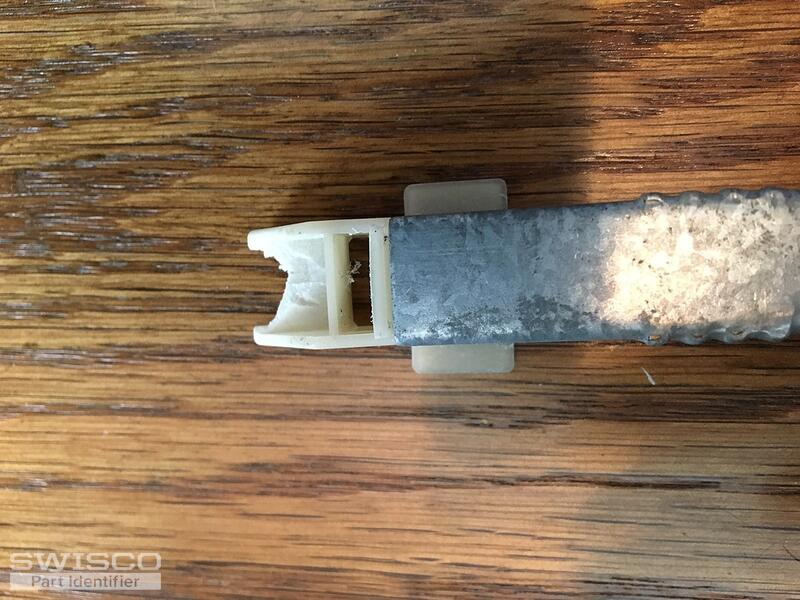

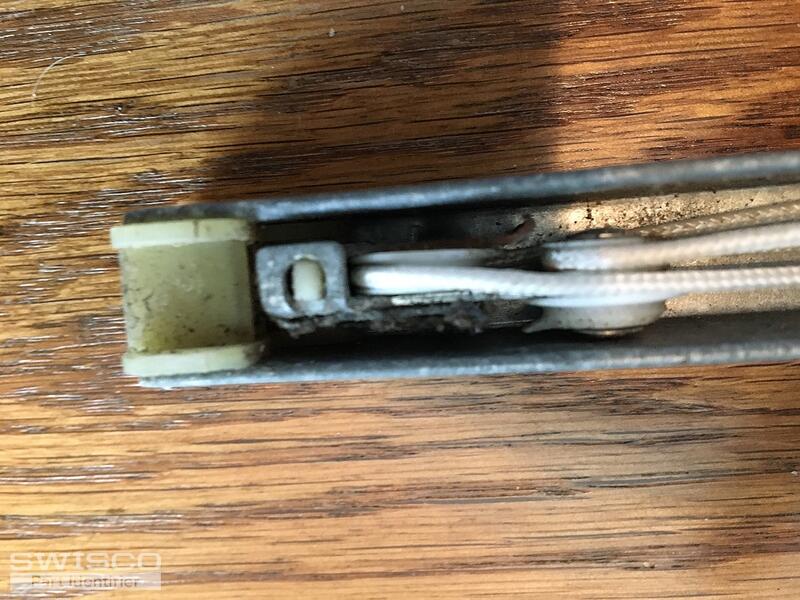

What do you have in stock as a replacement part for my block and tackle load balance....the length of the metal is 30 inches...it is stamped as 29-3 and only one side appears to have wings....see photos...thanks Bob

5 user uploaded images

4 Replies

Emily from SWISCO

May 11, 2021 12:57 pm

Hi there!

It looks like you have our S395-30 channel balance with a spring strength option of 2930.

If you have any further questions just let us know!

Home Owner from Florida

May 12, 2021 12:57 pm

would it be a show stopper if my top was not winged?

Tom from SWISCO

May 13, 2021 10:37 am

It might not be the end of the world, but to be honest I can see some problems that might arise. The reason some balances have those wings is in those cases where the track in the window is a little wide. Without the wings to keep the balance even, it might shift from side to side, which would cause your window to wobble when you open and close it.

It's ultimately up to you but given the circumstances I see no reason why you shouldn't just stick with the S395-30.
