Block and Tackle Window Balance

A quick learner from Homestead, FL says:
I need help in identifying the specific part number for this item so that I may order two of them. It is a block and tackle balance for a double hung window. Measured from metal to metal, length is 30 inches. The width of the channel (inside width) is a little over half an inch. It is stamped with 2917 BD .

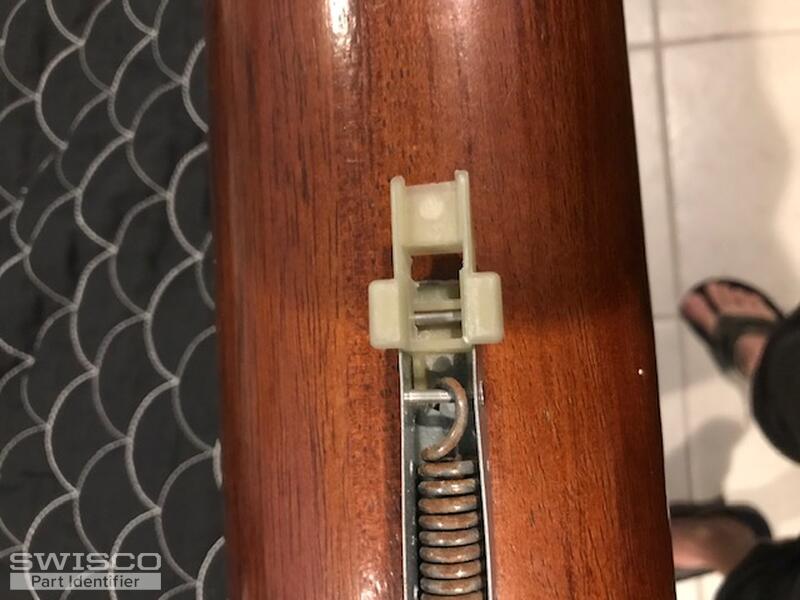

Thumbnail of the uploaded file named bottom_foot.jpg

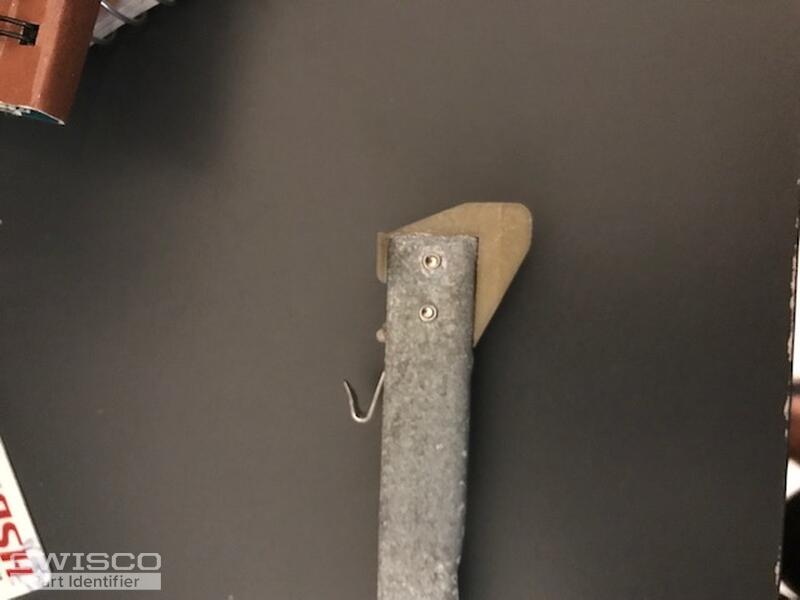

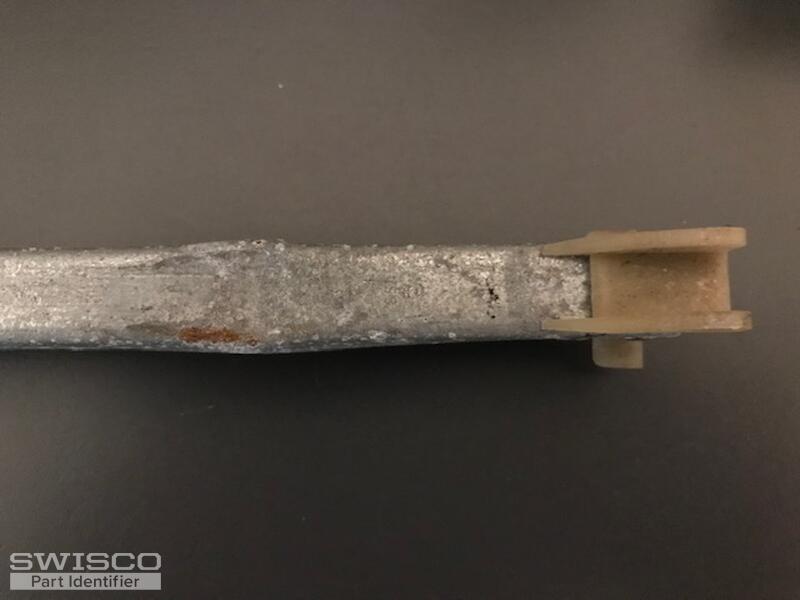

Thumbnail of the uploaded file named top_guide1.jpg
Thumbnail of the uploaded file named top_guide3.jpg
Thumbnail of the uploaded file named whole_balance.jpg

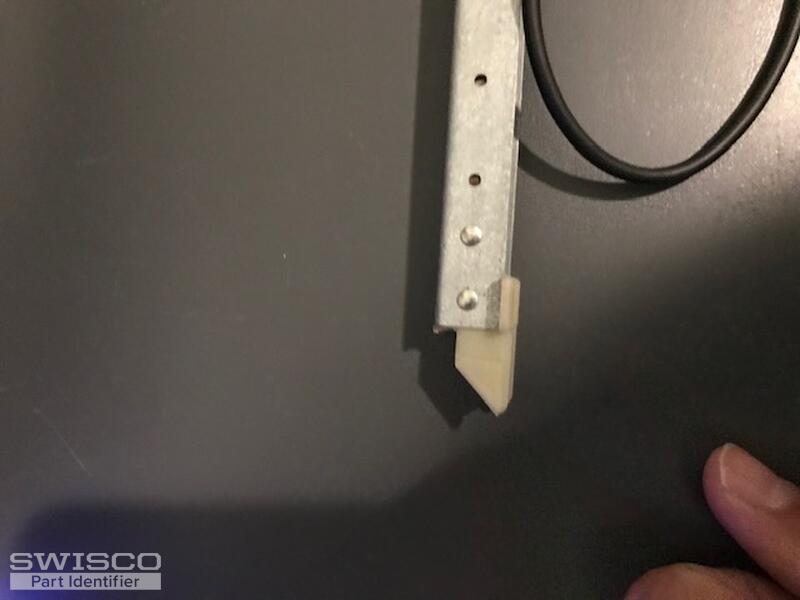

Thumbnail of the uploaded file named bottom_foot3.jpg
Profile picture of Bob
Bob from SWISCO responded:

This appears to be either an S380-30 or S385-30. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best.

You'll then need to choose a stamp option, which indicates the strength of the balance. I'm having trouble reading your stamp, and the stamp code 2917 is not familiar to us. Please weigh the window sash that these balances support. You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the respective balance's shop page.

A quick learner from Homestead, FL says:
Thank you! The shoe was 1 inch so I purchased the S380-30. The sash weighed about 30 pounds so I purchased 2950.
Profile picture of Bob
Bob from SWISCO responded:

Yes, that's the correct stamp option to choose for that sash weight. Let me know if you have any other questions!
