Block and Tackle Window balance

Home Owner
Feb 26, 2024 3:01 pm
Overall dimension is 22" long. Plastic parts at each end are 1/2" square.
The number in the second picture is stamped on the back of the balance.

Thanks for your help!
IMG_2402 IMG_2403
2 user uploaded images
3 Replies
Casey
Casey from SWISCO
Feb 27, 2024 2:54 pm
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but, unfortunately, your balance assembly is too damaged to identify. We would need to see photos of an intact balance, including the clip at the end of the pulley cord and the top of the balance, to compare to our inventory. Thank you!

Home Owner
Mar 12, 2024 11:56 am

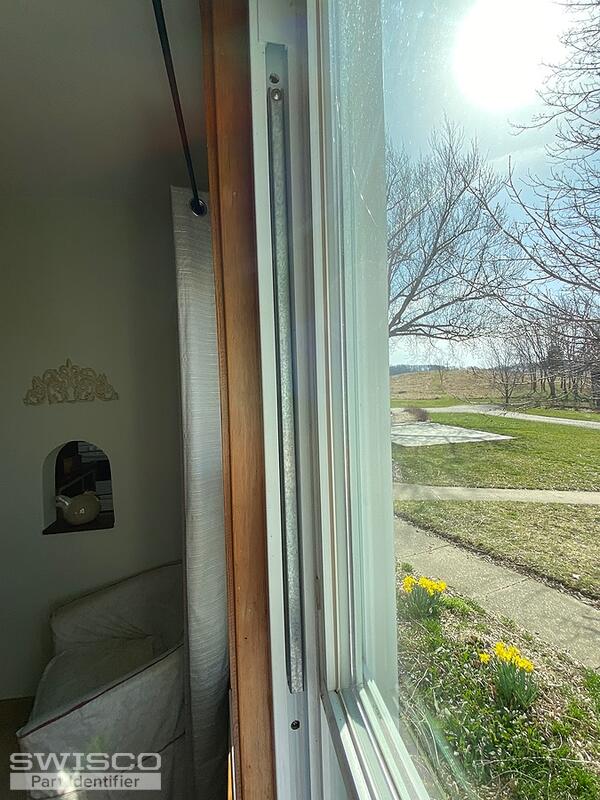

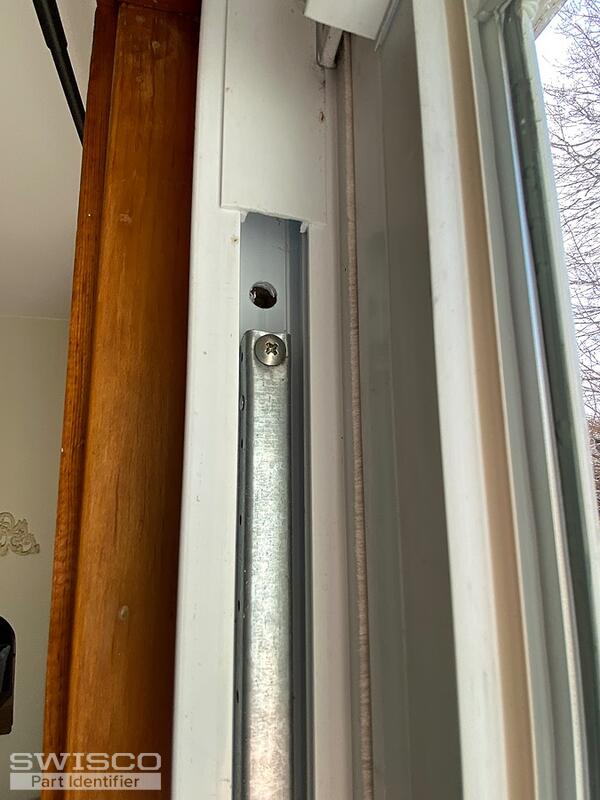

Hi Casey, thanks so much for getting back to us. Hopefully the photos below will give you the info you need.
IMG_2494 IMG_2493 IMG_2492
3 user uploaded images
Casey
Casey from SWISCO
Mar 12, 2024 12:08 pm
SWISCO
EXPERT

Thanks for getting back to us. Your balance resembles the S770-22. The stamp code differs from our strength options, so you would need to weigh your sash and follow the chart under the balance product description to choose the corresponding option.

Close up view of the Series 770 balance top.
Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.
Close up view of the Series 770 balance bottom.

If you need new pivot shoes as well, the 15-167 is commonly used with this type of balance but you would need to remove yours from the window to confirm that it matches the dimensions shown below. Take a look and see what you think.

Alternate image for 15-167
Alternate image for 15-167
