Block and Tackle window balance

A home owner from Murrieta, CA says:
February 2, 2022
Marking is 2630 BS MK. The channel length is 27". Channel width is 1/2" (9/16). Channel depth is 5/8". Both top and bottom guildes are winged.

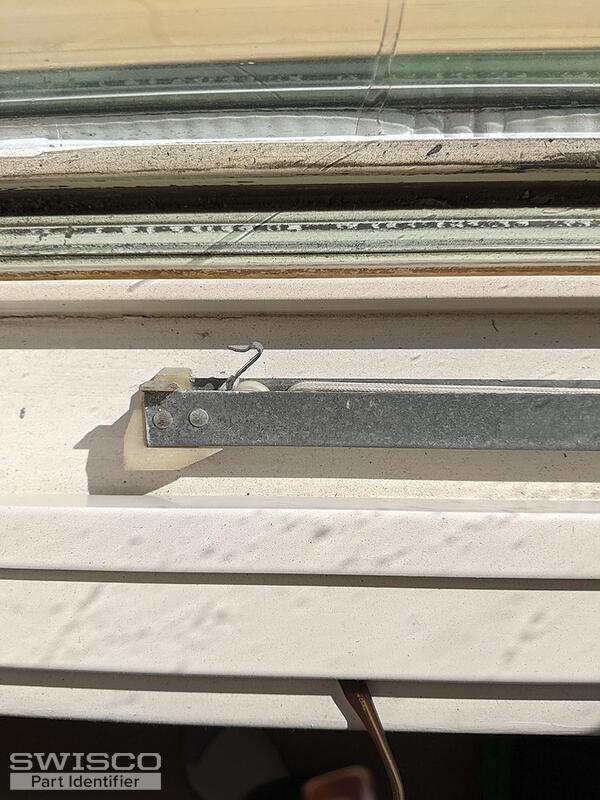

Thumbnail of the uploaded file named PXL_20220202_205348586.jpg

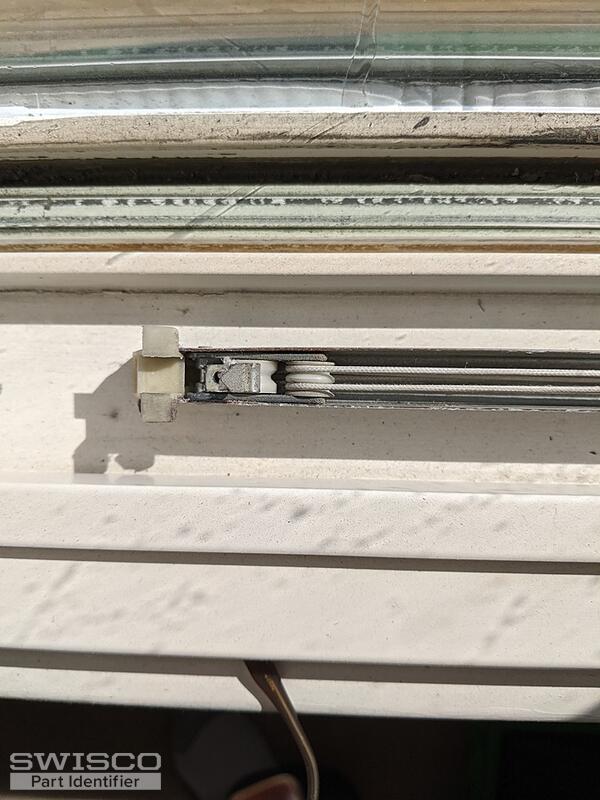

Thumbnail of the uploaded file named PXL_20220202_205354848.jpg

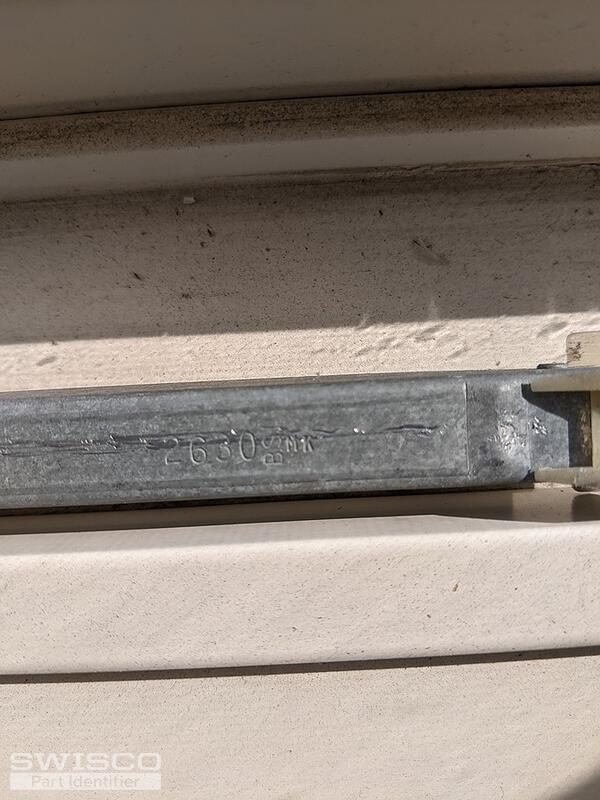

Thumbnail of the uploaded file named PXL_20220202_205411769.jpg

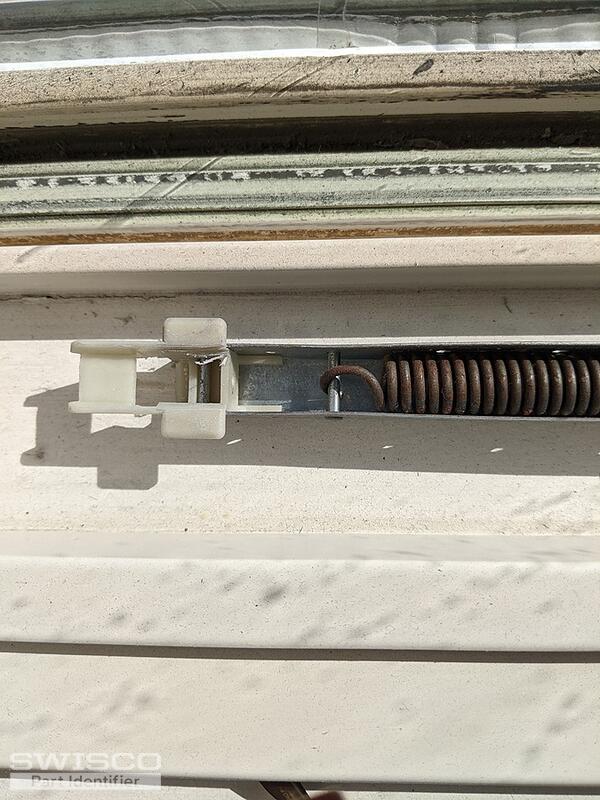

Thumbnail of the uploaded file named PXL_20220202_205418252.jpg

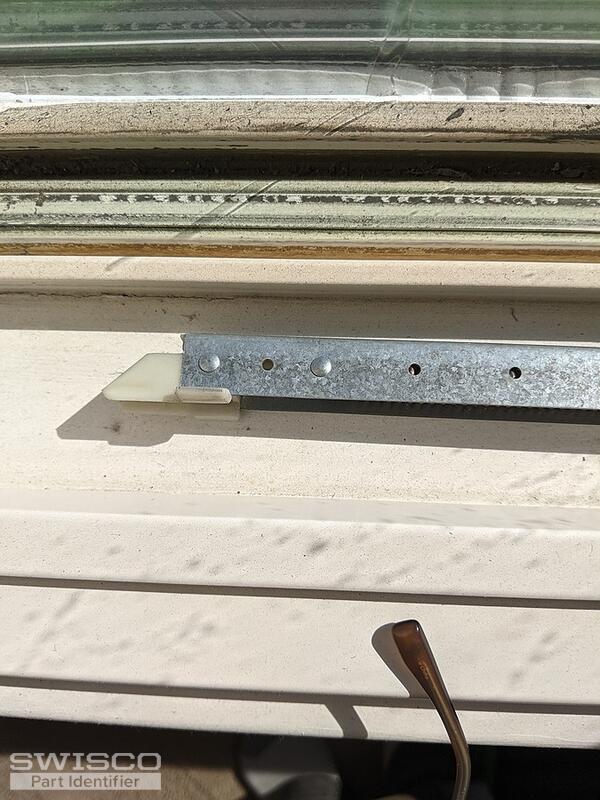

Thumbnail of the uploaded file named PXL_20220202_205441437.jpg
Profile picture of Emily
Emily from SWISCO responded:
February 3, 2022

Hello!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need the 2630 spring strength option.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Murrieta, CA says:
February 3, 2022
Thanks! I ordered two S380 with 2630 option. Hope they will fit well.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
