Block and tackle balance

Question

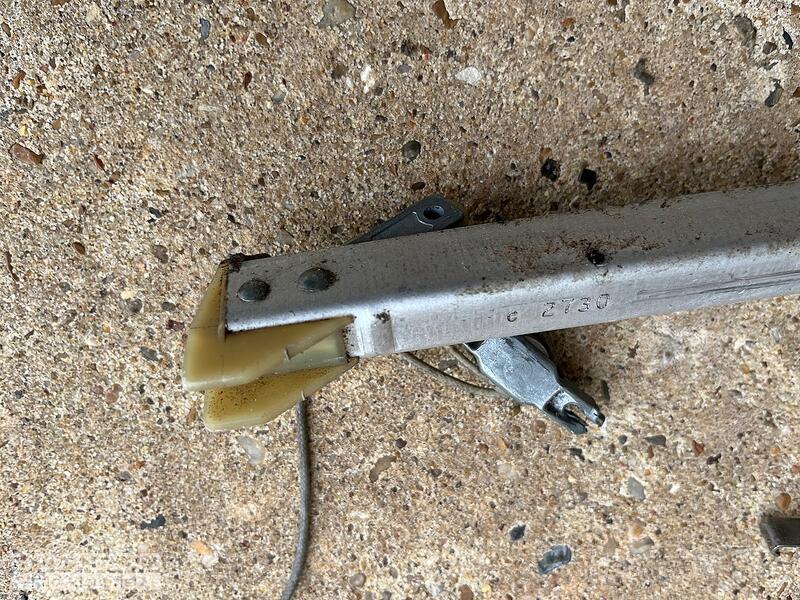

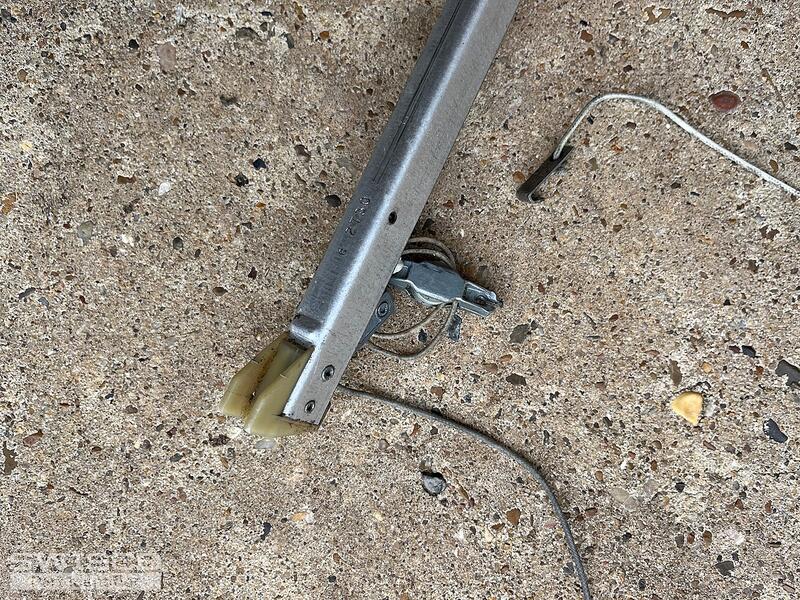

Hello, I have a block and tackle rod from a single hung window that came out in pieces. My house was built in 1992. This particular window has been very difficult to open. The window is leaning to one side. It measures 28 inches and width looks like it is 5/8 inches. I am uploading 5 photos. Could you help me in selecting the correct size? Thank you

Bob · Accepted Answer

Hello there. It looks like the top nylon attachment has 'wings', or those side tabs, while the bottom attachment lacks them. Sometimes those tabs can break off though, so you may want to check the other balance from this window just to make sure. If so, see the S395-28 Channel Balance. This looks like what you need. For a stamp option choose 2730.
