Blum 170 degree Hinge

Quick Learner from Arlington, WA
Aug 5, 2024 4:25 pm

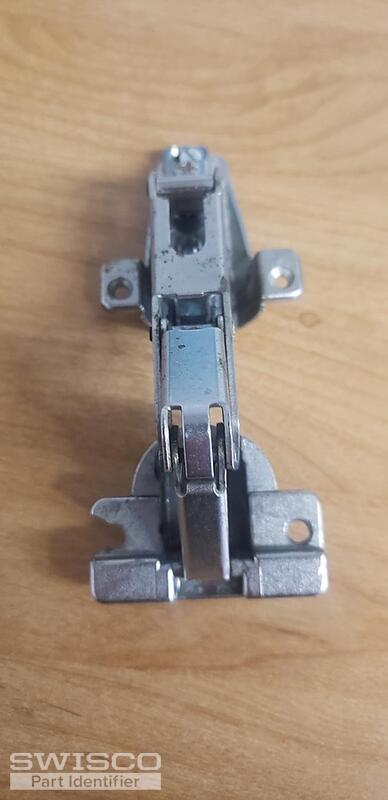

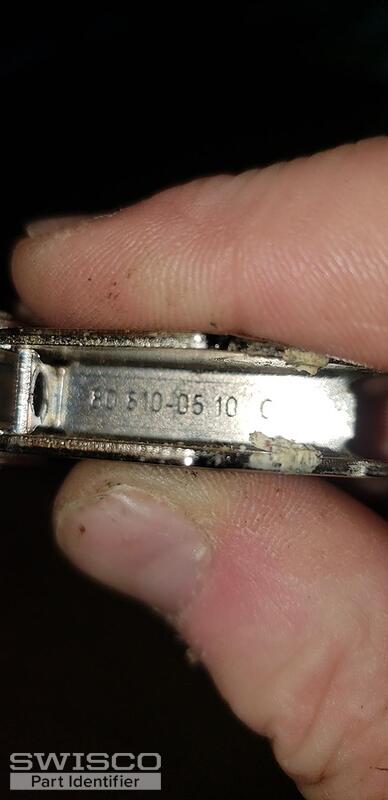

I'm trying to locate two of these hinges. Pictures show some sort of numbers but it's crucial that both the plate and the hinge screw spacing is 1 3/4" because there is a half circle cut out where the plate is attached and I need to straddle that half circle.
Blum 170 degree Hinge Blum 170 degree Hinge
2 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Aug 7, 2024 9:34 am
SWISCO
EXPERT

Hi there!

Thanks for reaching out to us. We don't sell this hinge, unfortunately. We've related similar options on this page but we can't promise they'll work. Take a look at the specifications and see what you think.

+ Add a Comment
Products and resources found in this discussion
Soft Close Concealed Hinge Set
Soft Close Concealed Hinge Set
32-349
$17.70
Full Overlay Soft-Closing Concealed Hinge Set
Full Overlay Soft-Closing Concealed Hinge Set
32-340A
$5.97
Large Opening Angle Blum Cabinet Hinge and Plate Set
Large Opening Angle Blum Cabinet Hinge and Plate Set
32-344
$23.43
