Bonneville patio door set up 2009

Question

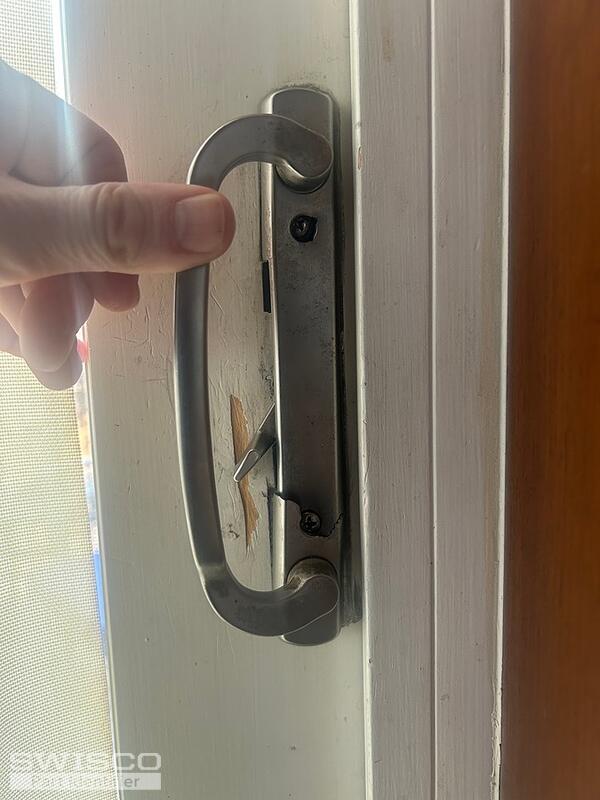

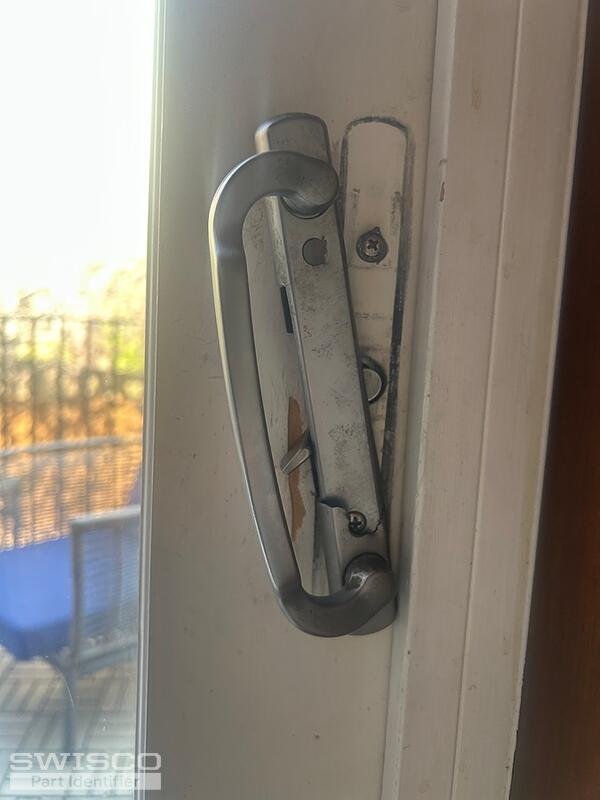

Attached are a few photos of the patio door handle set up from various angles, that was installed in 2009 with my custom Bonneville patio doors.
As you can see, the handle is fairly destroyed. I'm looking to replace this part. I measured the full height / length of the handle (7 1/4" inches) — as well as screw the screw (4 1/4" inches). (Diagram attached).
Let me know if you need any other information. Looking to fulfill this order immediately. I hope to hear back from you and fingers are crossed you can find a comparable part.

Jasmine · Accepted Answer

Hey there,

Thanks for posting! We typically see damage like this when excessive force is being placed on a handle set. This can be due to debris in the roller and/or track, and possibly damage to either of them. That said, it would be a good idea to double check them. If that happens to be the issues, then replacing the handle set may only be a temporary fix.

Should you find the rollers need to be replaced, take a look at the tutorials below this thread for an idea on how to remove/install the rollers and what we'll need to identify them.

The handle set reminds me of the 82-030A Centered Keyed Handle Set. Although, the distance between the installation holes is 3-15/16", so you'll need to double check the dimensions.

It is not available in a nickel/silver finish but it is available in white, black, or beige.

Dimensions for 82-030A
