Boreal Pivot Bar

A landlord from chicago says:
August 12, 2022

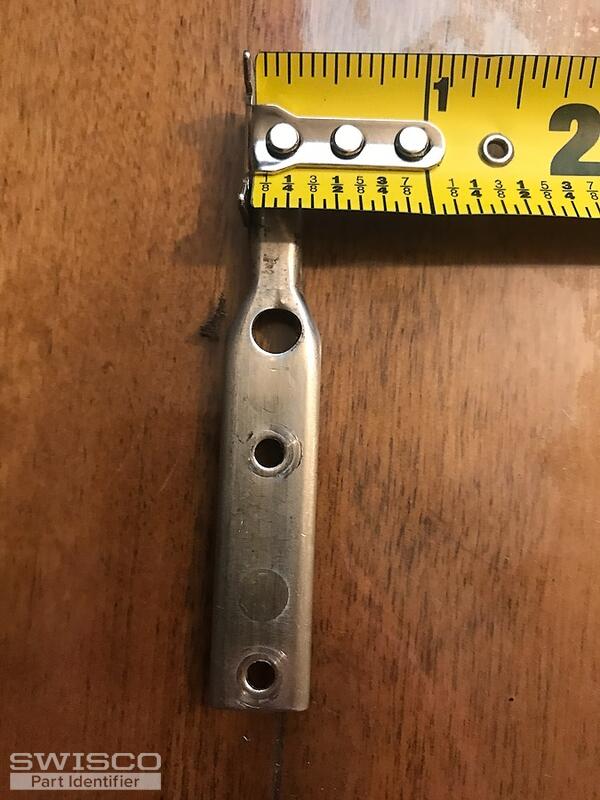

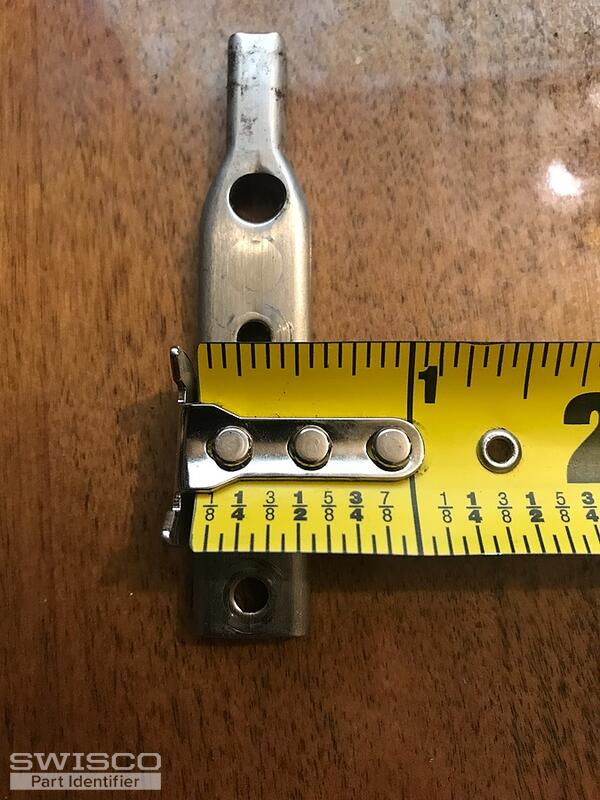

What pivot bar replacement do you recommend for a Boreal double hung window. The pivot bar is 3 inches long, 9/16 inches wide that tapers down to about 5/16 inches. The thickness is 3/16 inch. Pictures are attached.
Thumbnail of the uploaded file named IMG_7123.JPG
Thumbnail of the uploaded file named IMG_7124.JPG
Thumbnail of the uploaded file named IMG_7125.JPG
Thumbnail of the uploaded file named IMG_7126.JPG
Thumbnail of the uploaded file named IMG_7127.JPG
Profile picture of Casey
Casey from SWISCO responded:
August 15, 2022

Hello,

Unfortunately, we do not carry an exact match for the pivot bar shown in your photos. Our closest match would be the 26-297 but you would need to confirm if the more narrow portion that engages with the pivot shoe is the same size as shown below, as well as the offset of the installation holes. Thank you.

Alternate image for 26-297
Alternate image for 26-297
Pivot Bar, 2 1/4"
Pivot Bar, 2 1/4"
26-297
$1.45
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
