Both crank mechanisms stripped

Quick Learner from West St Paul MN

Jul 11, 2024 7:40 pm

Hello

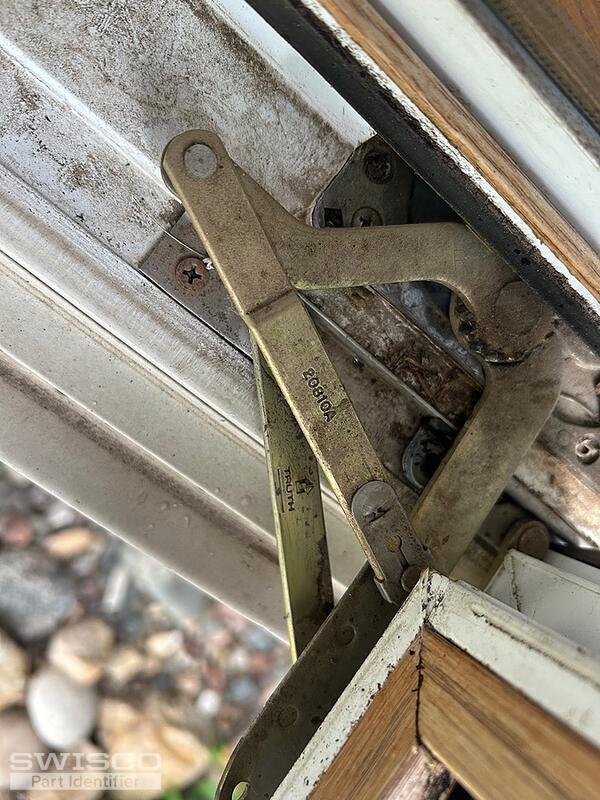

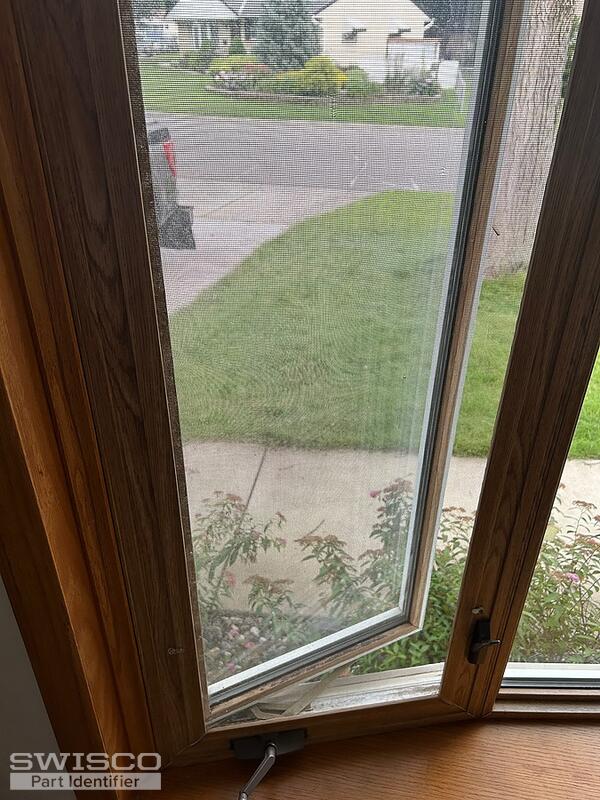

Both sides of bow window broken. Cranks stripped, spins and mechanism won't work. Only way to open is to unlock and pull from outside. Need complete assemblies for right and left side.
Thanks
Tom

5 user uploaded images

8 Replies

Tom from SWISCO

Jul 12, 2024 3:01 pm

Hello, Tom. Based on your photos I would recommend our 39-031 and 39-032 operators. As long as the arm dimensions match your originals, then they should work perfectly well for this application.

Dimensions for 39-031

Quick Learner from West St Paul MN

Jul 12, 2024 3:10 pm

Thanks, Tom.
I will measure and make sure they will work. What is the part number for crank?
Thanks again
Tom

Tom from SWISCO

Jul 15, 2024 2:00 pm

Sure, if you also needed the handle, that would be our 39-114L. We also sell the 39-107, for the cover. Note that both of these can be reused as long as the originals are in good condition.

Quick Learner from West St Paul MN

Jul 31, 2024 9:02 pm

Hi

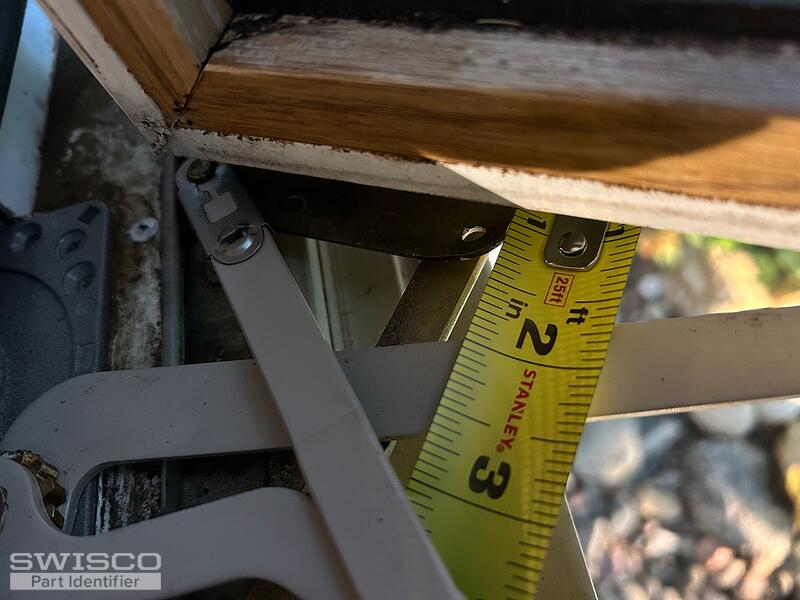

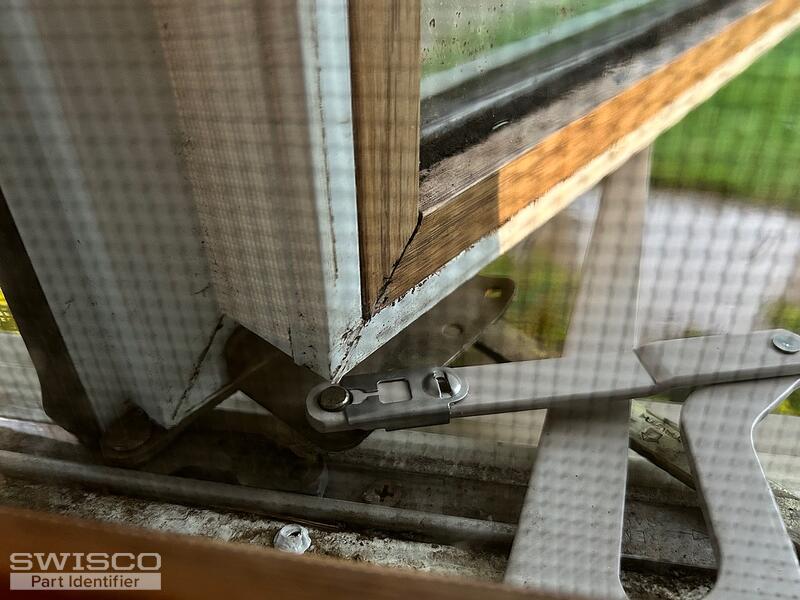

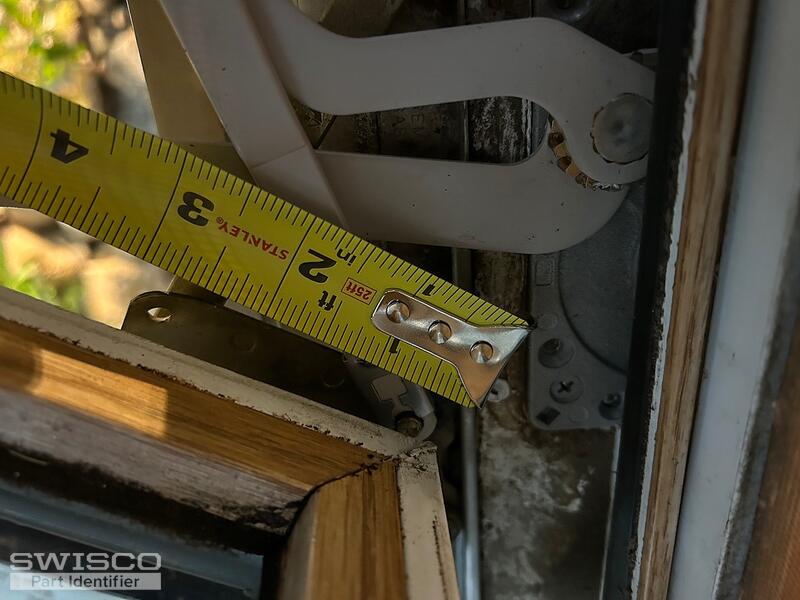

I got one wind fixed but the other one is missing the l bracket that screws to the window. This is the part with the stud that the metal flat latch goes over. Do you have this part? I took pictures of the other one on the fixed window. Thanks again for the help. You guys are the best!!

3 user uploaded images

Tom from SWISCO

Aug 1, 2024 9:56 am

Sure! This bracket appears to be similar in design to our 39-509. We also sell the 39-510 for the opposite side. The only concern I have is that ours may not be as deep as yours. Note that they're 11/16" deep.

Another option is our 39-546 (39-545 for the other side). These are much deeper at 1-3/8", so if the 39-509 falls short then these may be another option. Just note that the hole pattern is different so drilling new holes for your screws may be necessary.

Quick Learner from West St Paul MN

Aug 1, 2024 10:17 am

Really appreciate it. I will look at the one I have again and order the closest to it.
Thanks!!

Tom from SWISCO

Aug 2, 2024 9:04 am

Sounds like a plan! Please feel free to reach out if we can be of any further assistance.
