Bottom Bushings/glides for older bifold door
This appears to be a typical bifold door pin. We sell a ton of different sizes and styles, which you can see here, but I can't identify what you have based on these photos.

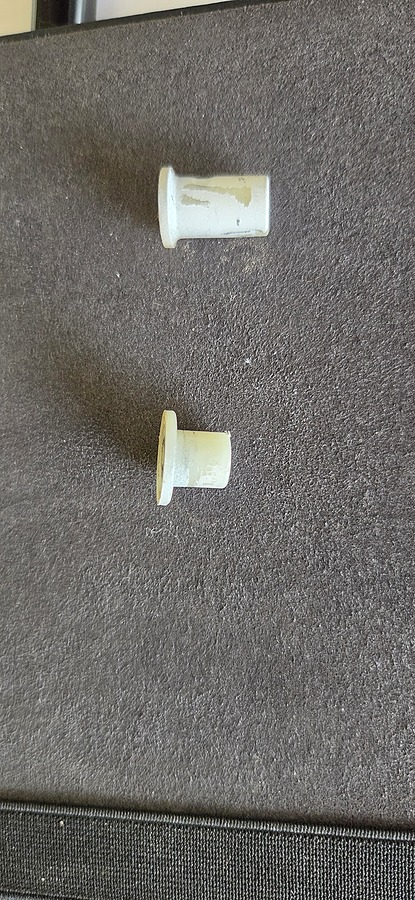

For now, browse our section to see if you can find a match. If you cannot, we need you to remove one of the existing pins from the door and show me a photo of each one you need to replace by itself and without obstruction. We also need detailed, written dimensions. A photo of a tape measure will not be sufficient.
Once we have that data, I can check our inventory for a possible match.

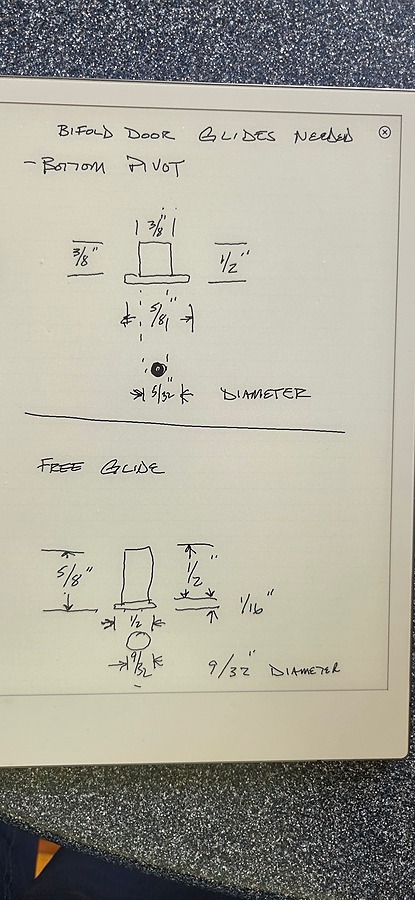

Bottom Pivot
- length: 1/2"
- widths: 5/8" & "3/8
- Diameter (ID): 5/32"
Free glide:
Length: 5/8"
Widths" 1/2" & 5/16"
Diameter (ID): 9/32"
Please let me know what parts are needed. Thanks!
Thanks for the thorough information. We sell two pin caps that may work for you: the 21-106 for the shorter version, and the 21-111 for the taller version. Our dimensions are very, very close, but note that the inner diameter in each case differs slightly (by small degrees). I still think these are good matches, so I'm optimistic, but review the manufacturer-provided dimensions and see what you think.
