Bottom Fitting

Home Owner from Naples FL
I have a non-tilt channel balance with a stamp of 2920 BSI.  It appears to be a 380 with a 15-005 bottom fitting.  However, is the 1" depth for the 005 fitting a nominal dimension or actual?  My fitting measures about 7/8" - see uploaded picture.
1 user uploaded image
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We do offer the 15-029 balance fitting that measures 7/8" deep as shown below. It does not come with any of our stock balances but we can provide them through a custom order. To get started, we'll need to see the top fitting attached to the opposite end of the metal channel. Keep in mind that the minimum order is two since it's important to replace both balances at the same time. Thank you!

Dimensions for 15-029
Dimensions for 15-029

Home Owner from Naples FL

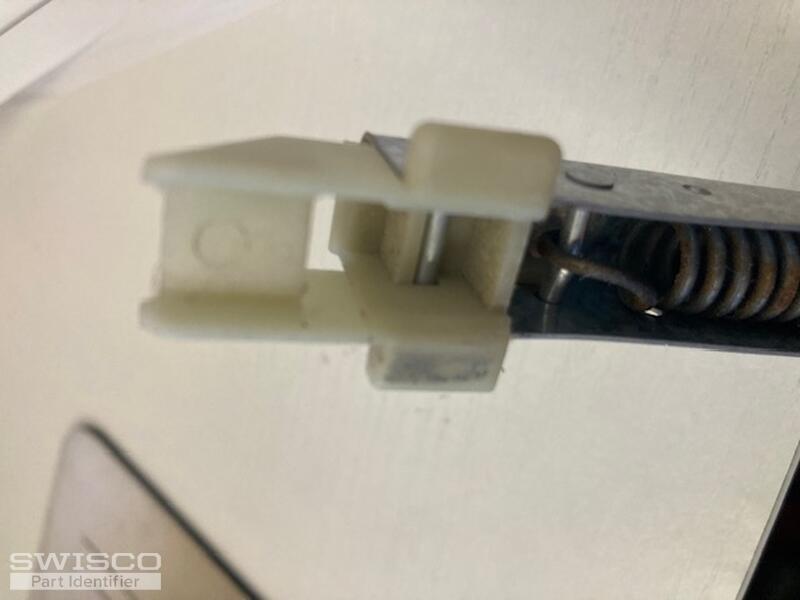

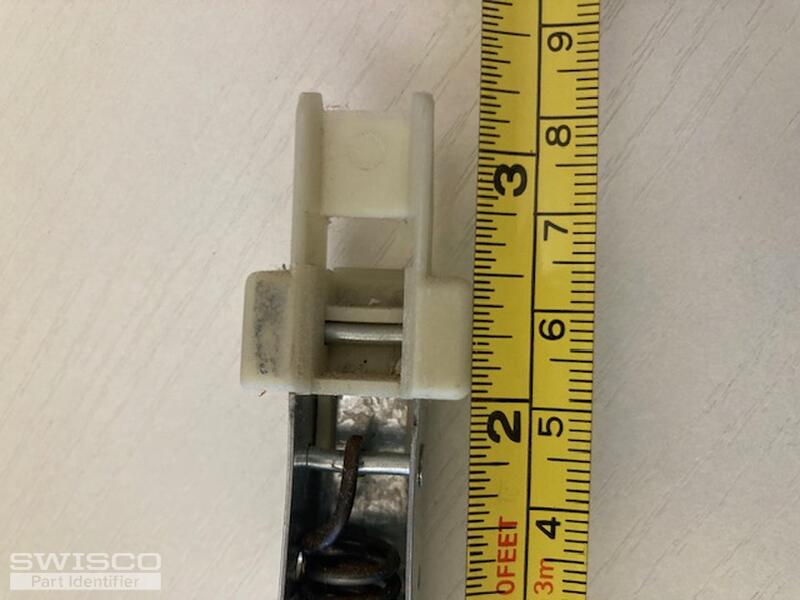

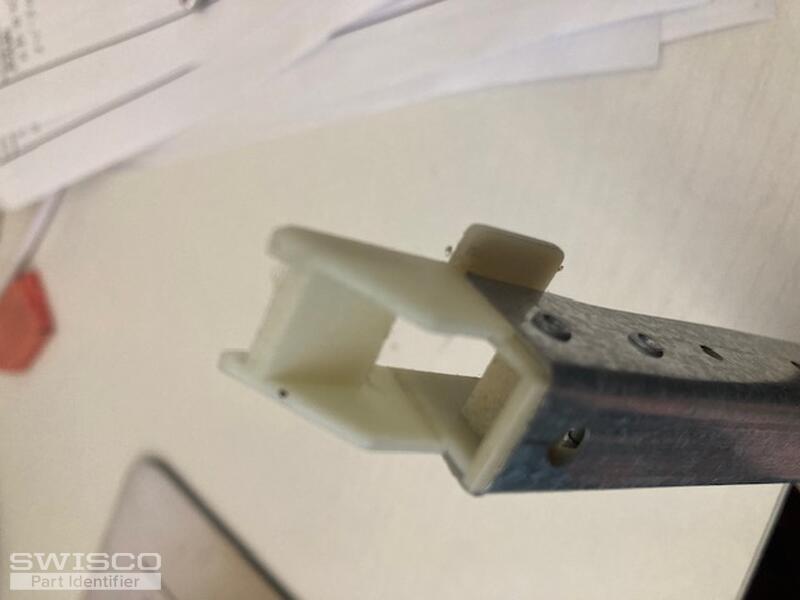

See attached for photos of top fitting.
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for the additional photos! Casey isn't in today but I can help you from here. As she mentioned, we can custom-make your balance using a 30" metal channel with the 19-005 top fitting and the 15-029 7/8" bottom fitting, along with the 2920 stamp. I will email you a purchase link and price quote for (2) balances, which you can use to place your order on our website.

Please let me know if you have any questions!
