Bottom Rollers for mirrored wardrobe door

Handy Person from Corona, California

Jun 1, 2017 4:24 pm

Hi, I am trying to replace these rollers.
Your part number MIRROR DOOR ROLLER, 1-1/4" DIA. Product Code: 23-043 seems to be the best choice since the roller diameter and width is the same, as well as the casing thickness and tab offset/height. The casing is a bit different in design but very close to the same dimensions. The old rollers are just press-fit into the bottom door frame as shown in the attached installation picture. No brand name is on the doors or roller. Do you think part 23-043 will work as a replacement?

Thank you!
Terry

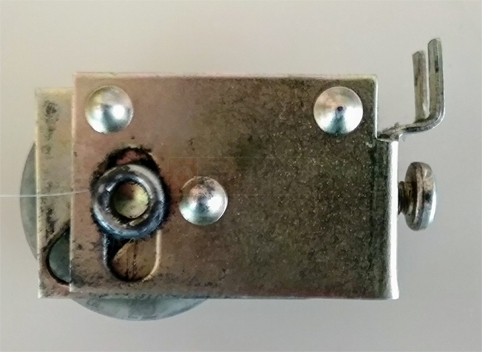

User submitted image of their closet hardware.

5 Replies

Tom from SWISCO

Jun 6, 2017 11:40 am

Hi Terry. You may want to take a look at our 81-229 door roller. Check to see if this may be closer to what you need.

Handy Person from Corona, California

Jun 6, 2017 9:20 pm

Thanks Mike!
All the dimensions on the 81-229 matches mine, including the dimples, except my old one has a plastic wheel of 1 3/16" diameter instead of the 1 1/8" steel wheel. Both wheels are the same 5/16" thickness. I imagine the 81-229 will work for me since the adjusting screw can set the wheel depth and there is only 1/16" difference. What about the steel wheel on my aluminum track? Probably okay I would think.
Thanks again, Terry

Paul from SWISCO

Jun 9, 2017 10:55 am

Yes, the steel wheel will roll fine on the track and should not cause any extreme wear, in my experience.

Handy Person from Corona, California

Jun 14, 2017 6:14 pm

Bought two of the 81-229 as recommended - fit oerfect and work great. Thanks!
