Bottom Window Sash Pivot

A quick learner from Lexington SC says:
Hello, looking for the attached double hung bottom window sash pivots and screws.

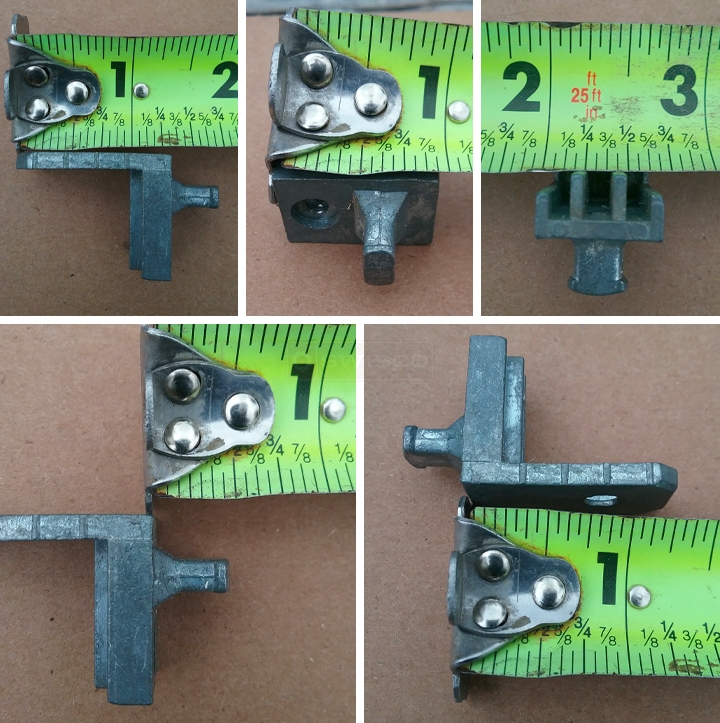

User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
I would start by looking at our 25-407 pivot bar. It doesn't have that same rounded pin, but I believe it will still fit in your pivot shoe's cam. The width is 3/4". The tip of the pivot sticks out 5/8". The screw holes seem to match, as well. Look it over and let me know what you think.
