Bottom bar hinge American Craftsman casement window.

Quick Learner from Point Pleasant, NJ
Oct 29, 2021 2:46 pm

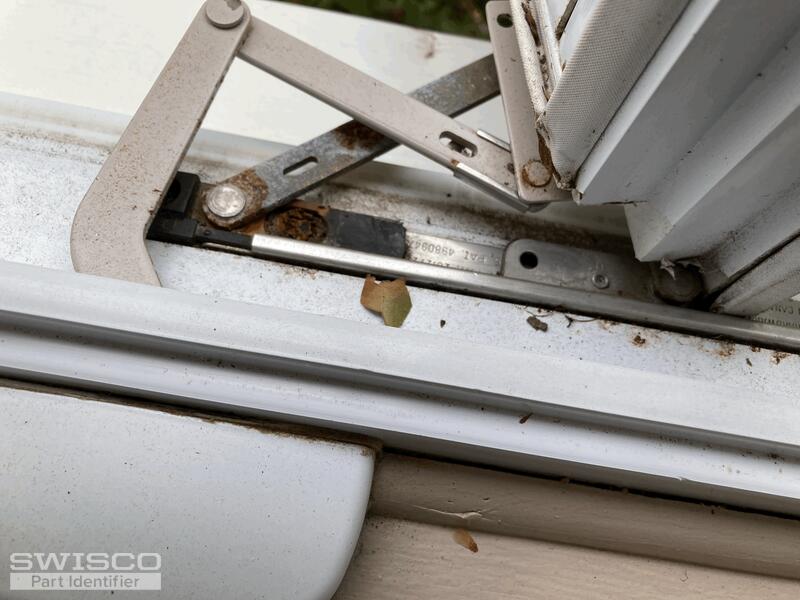

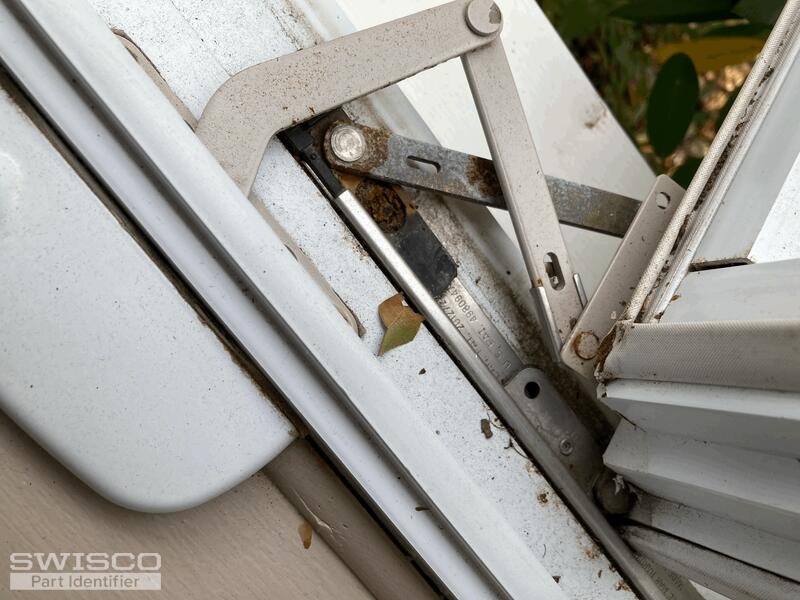

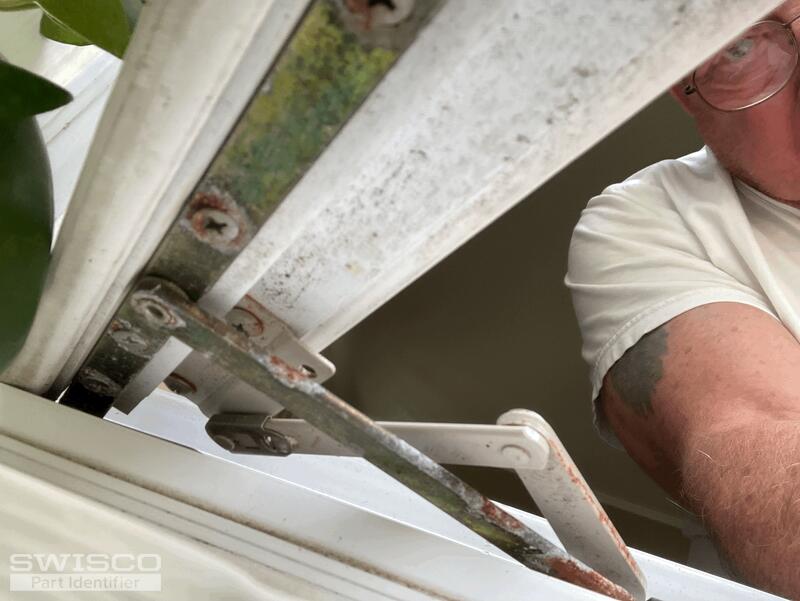

I looking for a bottom hinge for an American Craftsman casement window from Home Depot. I think it's a 7501 series. Window opens from the left side looking from the outside. The hinge has D H Hardware punched onto it.
tempImageKK35hg tempImagecieM1v tempImageXWvkdz tempImagesLDn77
4 user uploaded images
1 Replies
+ Add a Comment
Lauren
Lauren from SWISCO
Nov 3, 2021 10:04 am
SWISCO
EXPERT

Hello, thank you for posting!

Please start by reviewing the dimensions of our 36-048 2-Bar hinge set.

Detail of 36-048
Detail of 36-048
Additional dimensions for 36-048
Additional dimensions for 36-048
+ Add a Comment
Products and resources found in this discussion
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
