Home Owner from Winder ga
Jun 24, 2021 11:14 pm
3750337acme
2 user uploaded images
4 Replies
Hi there!
Take a look at our 23-026 bottom guide and compare our dimensions to your original hardware to see if this matches up for what you need.

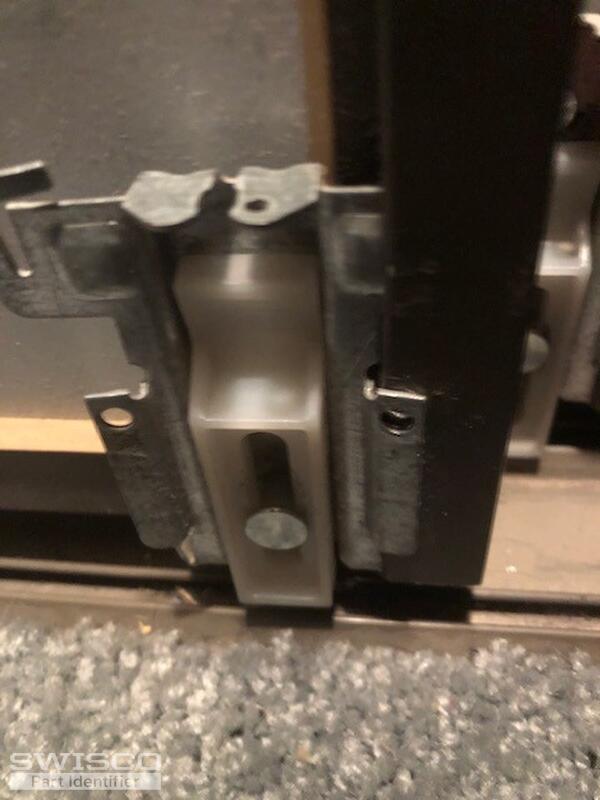

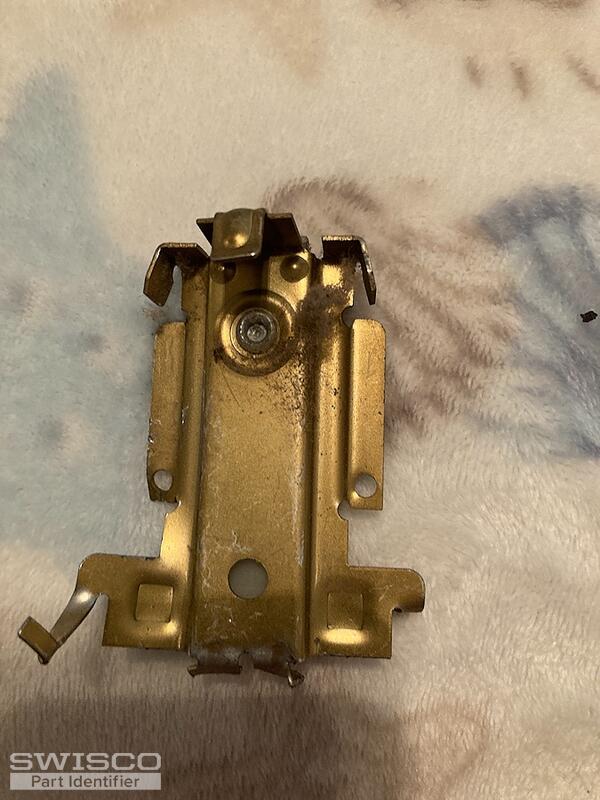

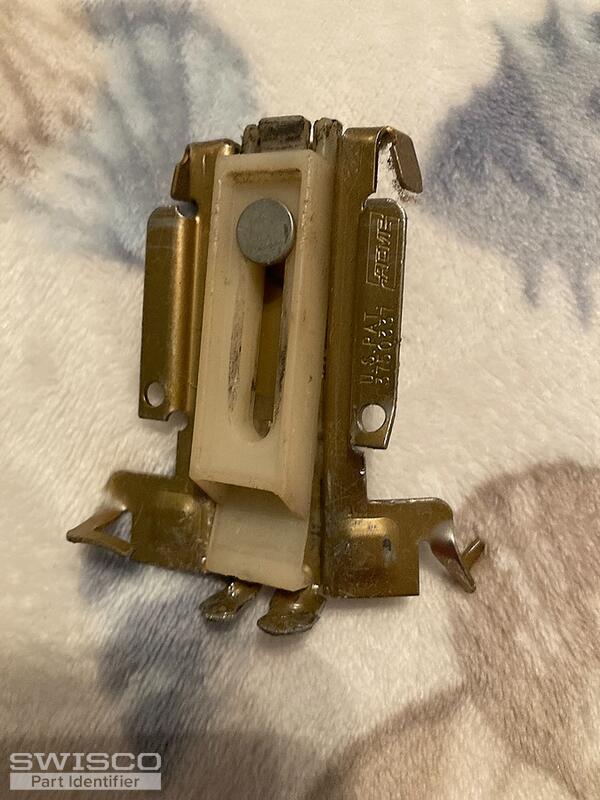

Your roller looks like our 23-026, but you'll need to carefully compare our dimensions to yours to ensure they match what you need.
The 23-026 is usually just held on with those hooks you see on the side of the housing. To remove it, you need to take the door out of the frame and put it on a stable surface. Then you need to use a pair of needle nose pliers to kind of work it out. It's in there tight, so it will be a little frustrating at first, but if you have a firm grip and a steady hand then you should be able to wriggle it out.
