Bottom drawer side rails

Quick Learner from Pennsylvania

Jan 1, 2024 7:46 pm

Hello,
I have a drawed that is need of repair. I need to replace the left & Right side rails that mount to the bottom of the drawer and I need to replace the left & right side rail that mounts inside the cabinet.
I have a unigrass 6600 bottom mount drawer slide that is 21-5/8". The track that the drawer rides on is 22-7/8" long. So the part that attaches to the drawer is shorter that the track that mounts inside the cabinet. Is this typical??? What part number for the drawer slides would I need?

6 Replies

Casey from SWISCO

Jan 2, 2024 2:57 pm

Hello,

We'd be happy to help but we would need to start by seeing photos of your original drawer slides, along with any other parts that you may need, to compare to our inventory. In the meantime, you're welcome to look through our selection of drawer hardware here. Thank you!

Quick Learner from Pennsylvania

Jan 2, 2024 8:00 pm

I have a bottom mount drawer slide that is 21-5/8". The track that the drawer rides on is 22-7/8" long. So the part that attaches to the drawer is shorter that the track that mounts inside the cabinet. Is this typical???

Casey from SWISCO

Jan 3, 2024 8:09 am

I wouldn't say that it is typical but I also can't determine if it is a cause for concern without seeing photos of the type of hardware that the drawer uses.

Quick Learner from Pennsylvania

Jan 4, 2024 2:57 pm

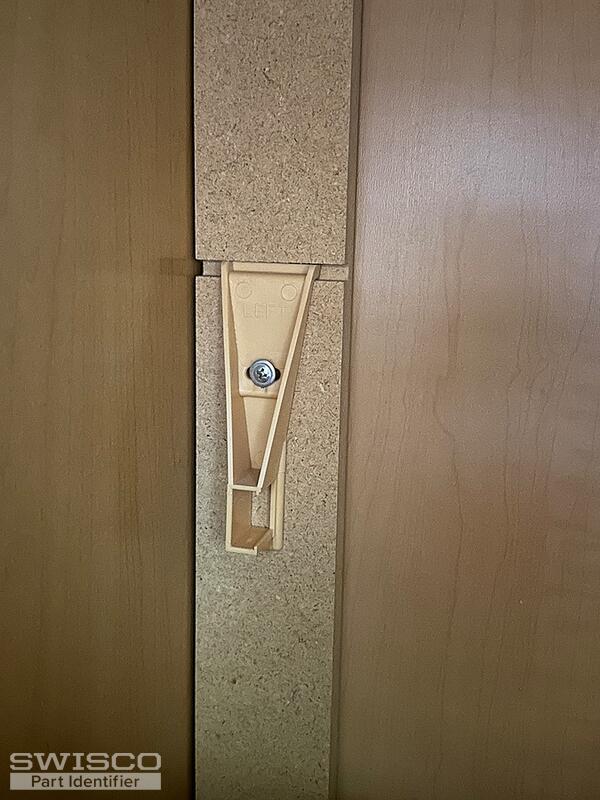

Here are the requested pics.

4 user uploaded images

Casey from SWISCO

Jan 5, 2024 9:44 am

Thanks for getting back to us. The closest match that we carry for your drawer slides would be the 21-5/8" long 32-061 slide pair but you would need to confirm that it will fill your drawer opening. We would generally recommend using rear brackets like the 32-139 to compensate for any difference in length but since your drawer uses hanging rail brackets like our 32-025, our rear mounting brackets may not work for your application. I'm sorry that we won't be able to provide exact replacements but take a look and see if you might be able to adapt these parts to work for you. If you decide to give it a try and run into any problems, our return policy can be found here.
