Bottom guide track assembly

Handy Person from Bolingbrook

Jul 23, 2024 3:44 pm

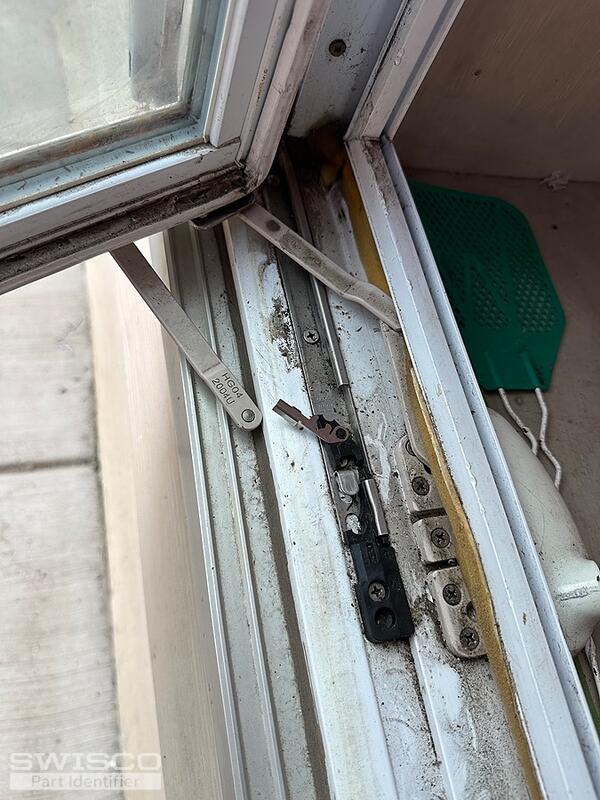

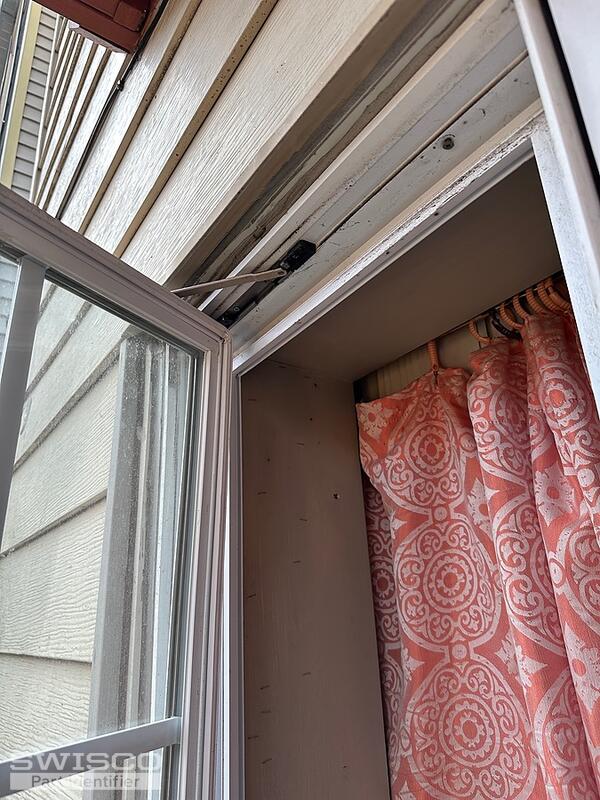

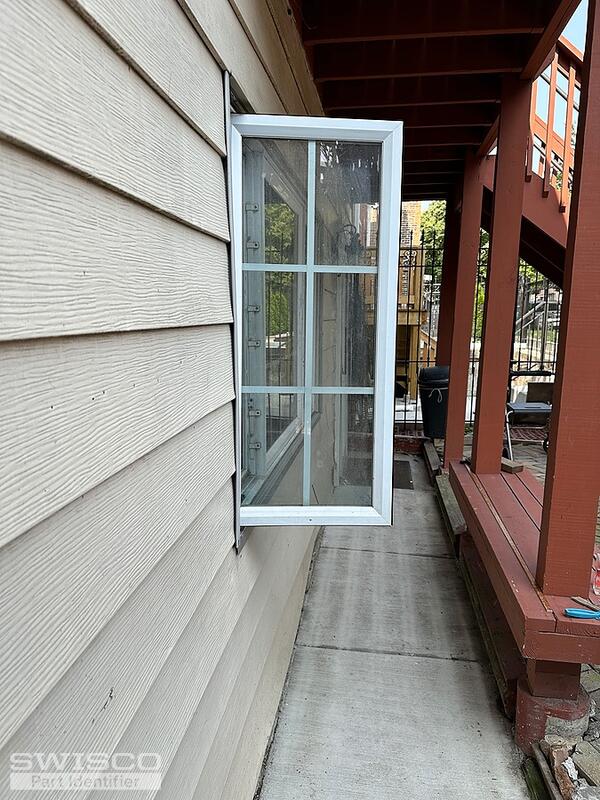

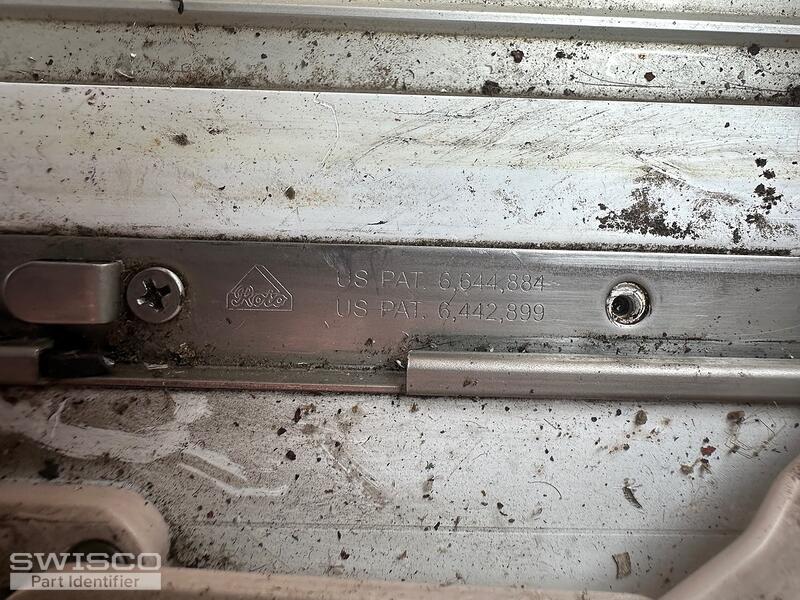

The bottom track is broken and i need a replacement part along with crank handles

4 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Jul 25, 2024 10:27 am

SWISCO

EXPERT

Hello,

Take a look at the 36-048 hinge set with a 10" base. We also offer the installation video below to walk you through replacing the top and bottom hinges.

Detail of 36-048

Detail of 36-048

As for the operator handle, see the 39-232 used with the 39-329 Roto operator. Thanks for posting!

Alternate image for 39-329

Alternate image for 39-329

Dimensions and profile view of 39-232

Dimensions and alternate view of 39-232

Dimensions and alternate view of 39-232
