Bottom hinge for vinyl casement window : SWISCO.com

Quick Learner from West PA

Sep 8, 2024 12:39 pm

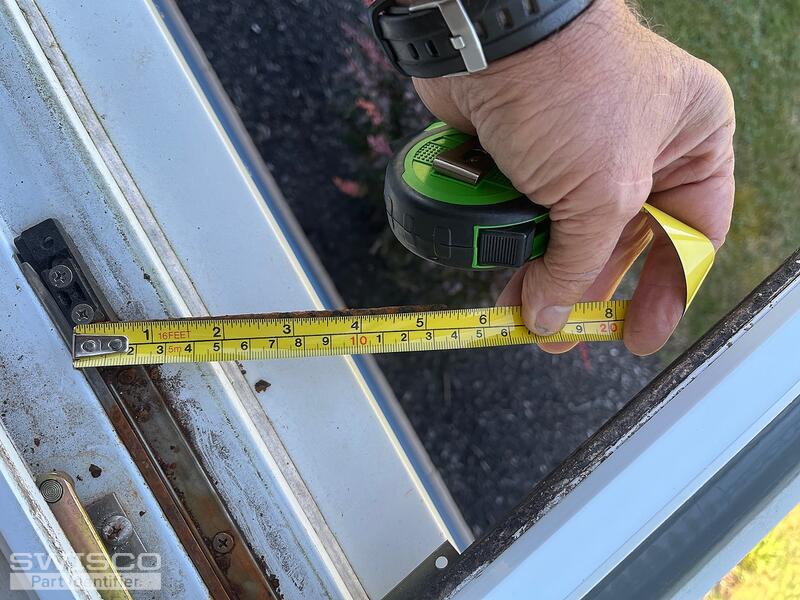

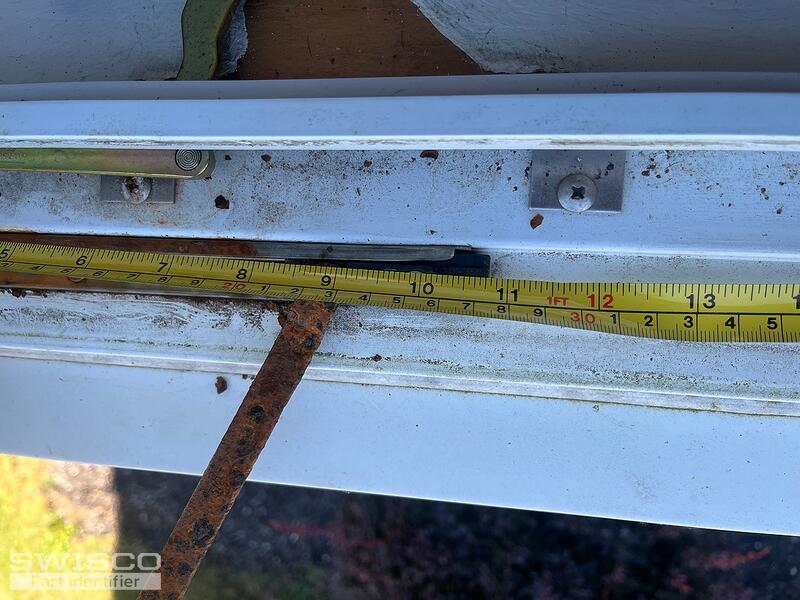

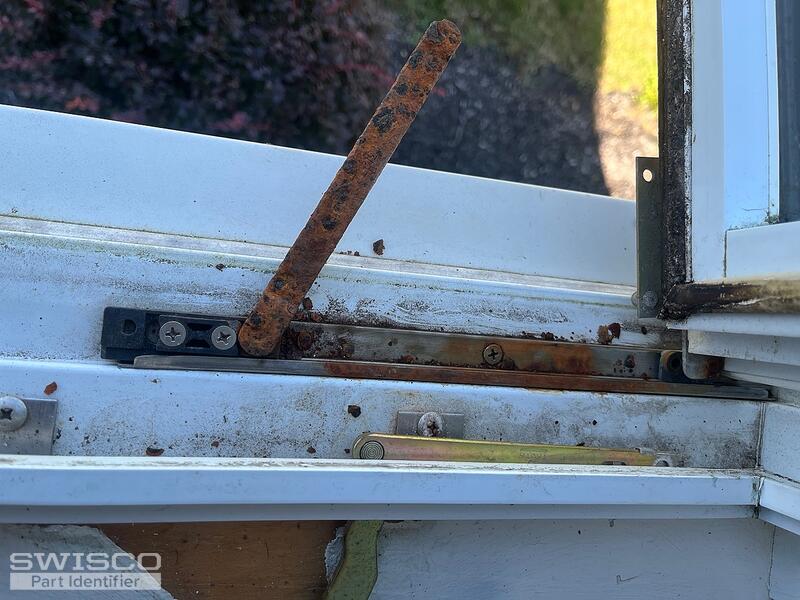

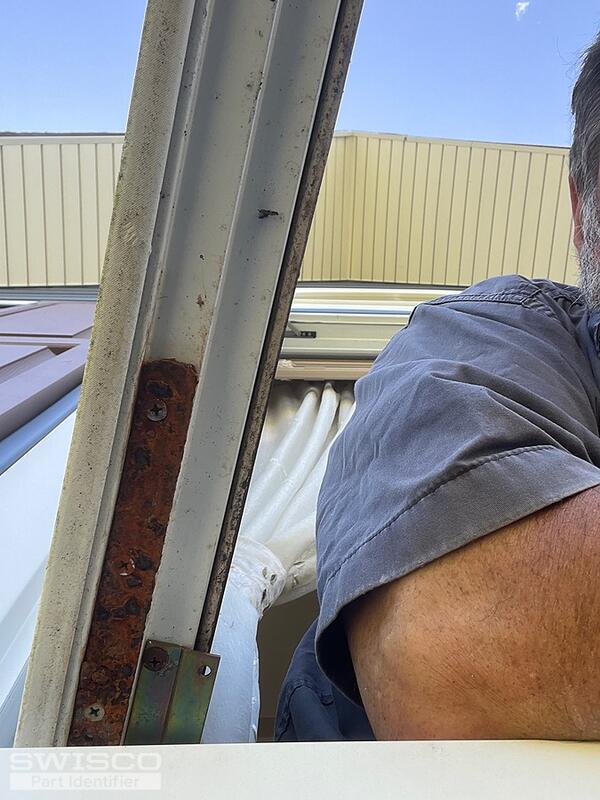

Need for bottom of vinyl casement . This is hinge right when inside looking out

4 user uploaded images

4 Replies

Emily from SWISCO

Sep 11, 2024 1:43 pm

Hey there!

Thanks for reaching out to us. This reminds me of the 36-048. This looks like it could be what you need. Take a look at the specifications and see if they match what you need. We just recommend you replace the top and bottom hinges at the same time.

Detail of 36-048

Additional dimensions for 36-048

Quick Learner from West PA

Sep 11, 2024 4:12 pm

So if I want to replace the top and bottom on both sides of my case of window left and right. What are all the part numbers required? Wondering if the top and bottom hinge are the same also if left and right or different

Emily from SWISCO

Sep 12, 2024 8:39 am

The 36-048 is a set so it has a hinge for the top and bottom of the window. This part is also neutral, so it can work for either a left or right hand window interchangeably.
