Bottom hinge parts

Quick Learner from USA
Hello.
I am from Marquis, Sk Canada
Our rink bathroom stall needs a bottom hinge (picture of the replacement part attached)
I have the bracket for the bottom of the door (picture attached) but it appears there is another piece missing. It is where the hinge would fit into.

Please advise what other parts will be needed.

Thank you very much for your help.
2 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Marquis.

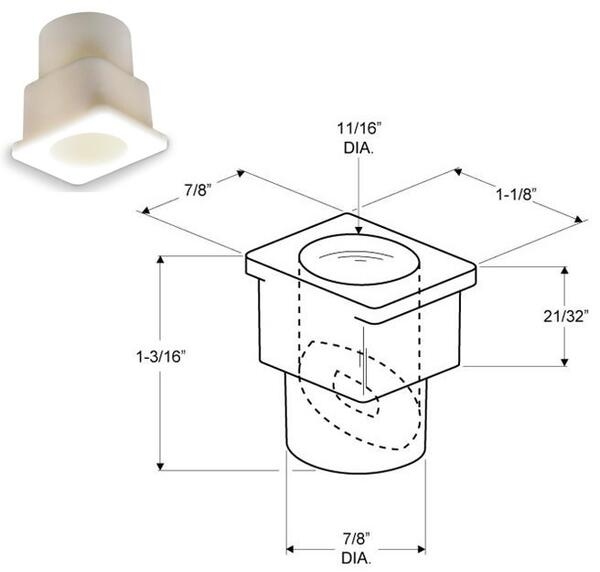

Thank you for contacting us. Take a look at the image below; do you think this part could work for you? It isn't presently a part of our stock catalog but please let us know, and if you'd be willing to wait a few weeks for production.

D351129
Quick Learner from USA
Yes. That looks correct. plus we would also require the hinge. I assume that is available?
do I need to pay now or later?
thanks.
Emily
Emily from SWISCO
SWISCO
Expert

Yes, the 10-593 bottom hinge bracket is presently available in stock. We will let you know as soon as the new cams are online and ready for purchase.

Emily
Emily from SWISCO
SWISCO
Expert

Hello! Thank you very much for your patience. Please see our new 10-593C nylon cam which is now available on our website.

Dimensions for 10-593C
Dimensions for 10-593C

Dimensions for 10-593C
Dimensions for 10-593C

Dimensions for 10-593C
Dimensions for 10-593C
