Bottom rail and parts for metal bifold door

A handy person from Eugene Oregon says:
Hello,
I need the bottom tracks and track hardware for a bifold metal door. Which items number is it. The width of the door is 30 inches.
Thumbnail of the uploaded file named 1C593BC6-0DC0-4B01-B4CB-507A89CE4793.jpeg
Thumbnail of the uploaded file named 2C4571ED-9A5D-445D-8B76-97B567939199.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I can't determine what you have from these photos alone. I will need more detailed photos of the pin assemblies themselves, along with dimensions so that I know what track they'll fit with (or if the track is even made anymore). Please let me know if that will be possible.

A handy person from Eugene Oregon says:
Here is the picture of the hardware
Thumbnail of the uploaded file named 644C6DB6-BB04-4503-9AE3-03AFB3004BCC.jpeg

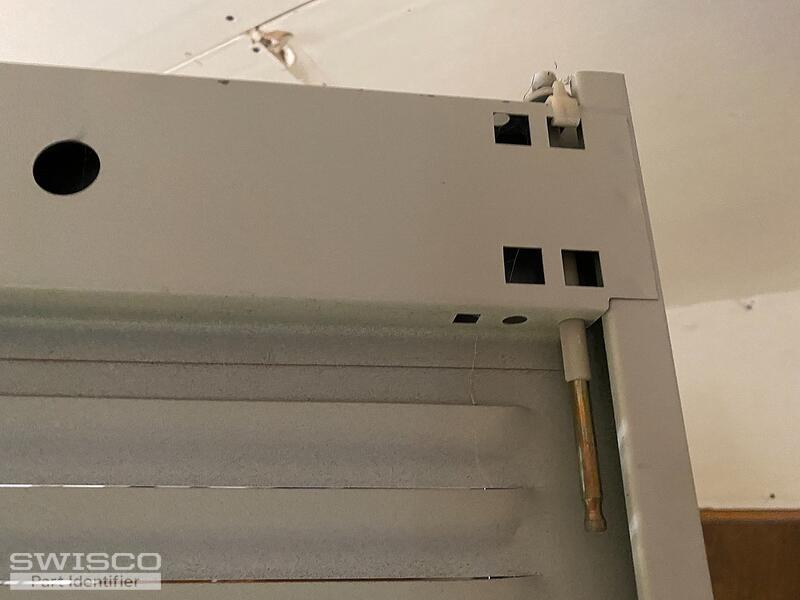

Thumbnail of the uploaded file named D9179331-258D-4784-9AC1-DB64C9B42852.jpeg

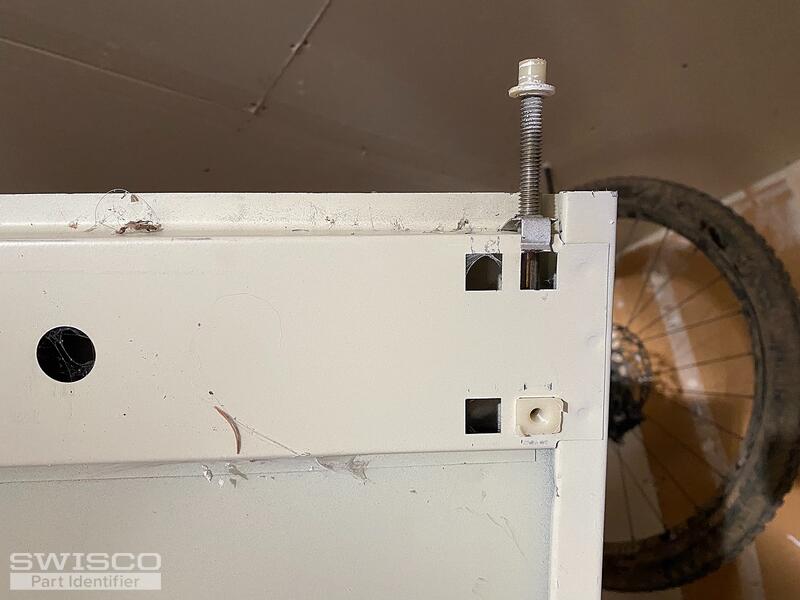

Thumbnail of the uploaded file named 604B2518-BCCC-4580-9F30-D47A00005120.jpeg

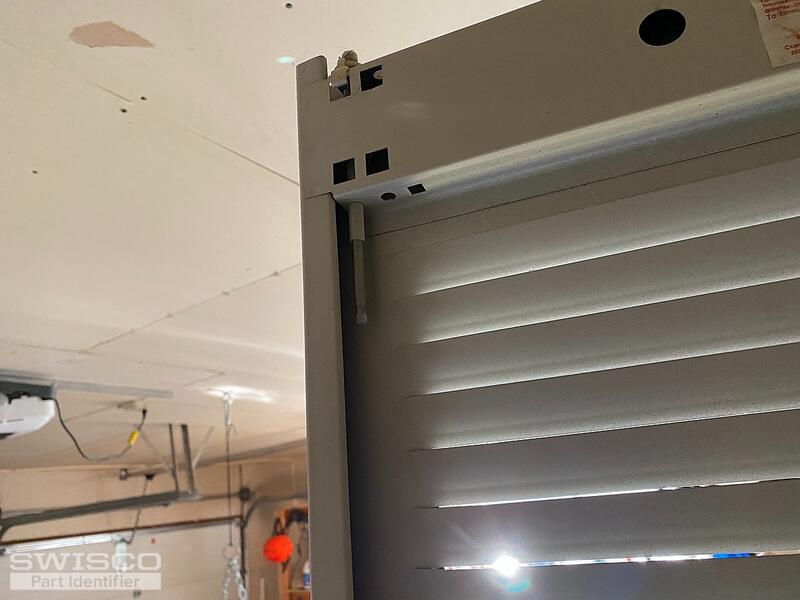

Thumbnail of the uploaded file named F0DAEBF8-D0F6-4052-AAED-C58D82B4C518.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you. Would you also be able to write out your dimensions, as requested above? We specifically need the diameter of the pin shaft and the diameter of the nylon cap, where it fits into the track.

A handy person from Eugene Oregon says:
It looks like all the nylon end are 10mm. This is for the top and bottom nylon cap. I placed a pic with my caliper. Is this helpful?

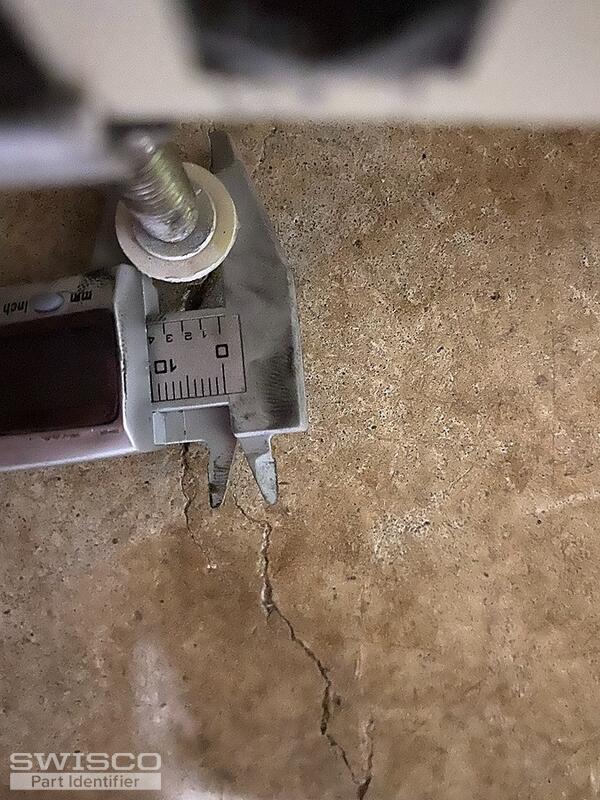

Thumbnail of the uploaded file named 49CCBE91-6557-456D-868E-4AEFB6B8AB56.jpeg

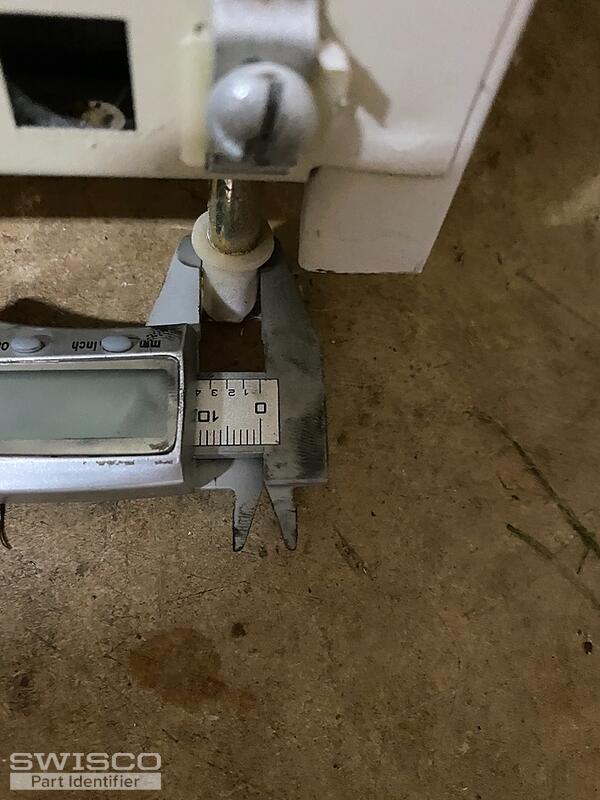

Thumbnail of the uploaded file named B9C316A0-AA1C-4313-B96E-FD25C54DBBD6.jpeg
Profile picture of Paul
Paul from SWISCO responded:

You have the old style Slimfold bi-fold door. We don't carry the 30" track, but we do have the 36" which is our 21-401. If you are putting two doors together then you could even use the 5' long 21-402

For the pins, you will need one 21-002 bottom adjusting pin, one 21-001, and three 21-007 adjusting pins. We also pulled up some videos to help you.

21-001 : Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$7.32
VIEW >
21-007 : Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.63
VIEW >
21-154 : Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
VIEW >
21-277 : Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
VIEW >
21-401 : Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
VIEW >
21-402 : Bifold Track, 5' Opening
Bifold Track, 5' Opening
21-402
$16.46
VIEW >
How to install bi-fold closet door pins
How to install bi-fold closet door pins
VIDEO
WATCH >
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
