Home Owner from Missouri

May 29, 2024 3:08 pm

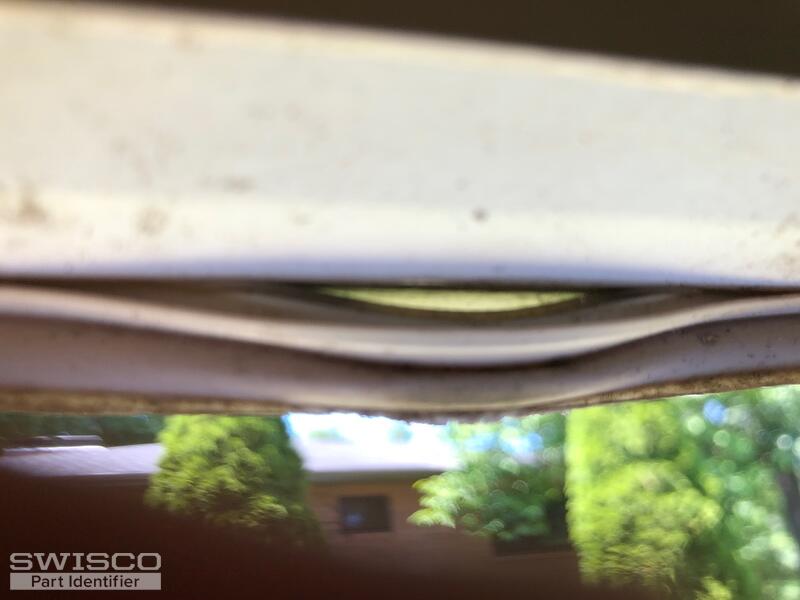

I am trying to find out what part to order for replacing the bottom seals on my Windsor windows. It looks like a T groove where the seal slides into.

4 user uploaded images

4 Replies

Casey from SWISCO

May 31, 2024 12:55 pm

Hello,

We'd be happy to look into this for you but we can't be sure of what you need with the seal still installed. We would need to start by seeing a clear end profile photo of an intact seal fully removed from the window to compare to our inventory. See the video below that shows what we would nee to see. Thank you!

Home Owner from Missouri

Jun 3, 2024 10:36 am

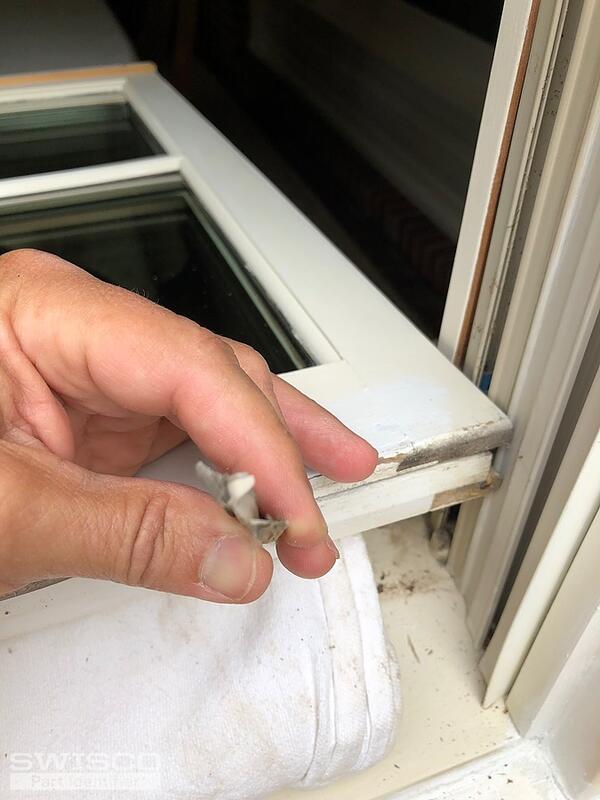

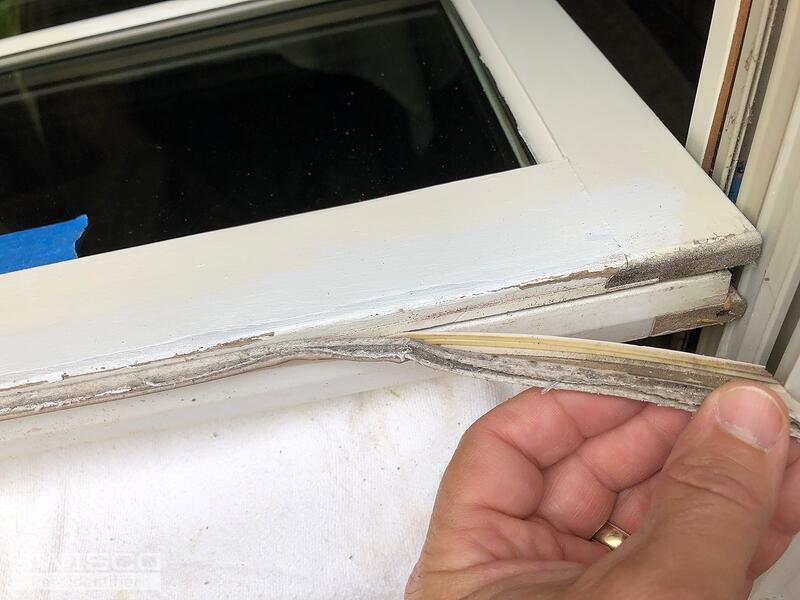

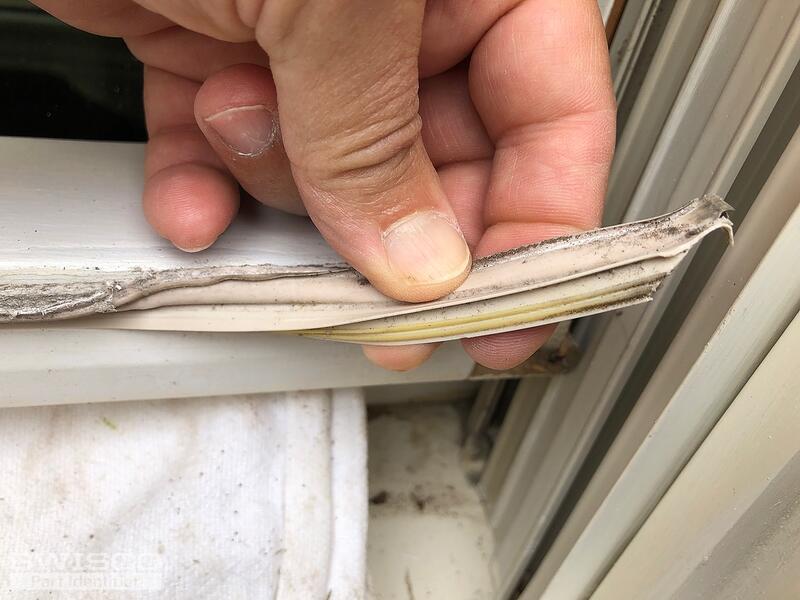

I have taken more pictures of the bottom seal (attached). The ribbed piece that stick up into the slot in the window is 1/4" tall. The width of the rubber flaps on the bottom is 3/8".

3 user uploaded images

Casey from SWISCO

Jun 3, 2024 10:59 am

Unfortunately, the end profile photo shown in your second photo is too damaged to identify. It's possible that you could have a type of foam seal similar to the 58-055 of 58-170B, but I can't be sure without seeing a clear end profile photo of an intact piece of your seal fully removed from the sash frame. In the meantime, you're welcome to look through our selection of bubble seal here.

Profile view of 58-055

Profile view and dimensions for 58-170B
